2.1x0.6mm RIGHT ANGLE SURFACE LED

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

0.1(0.004") unless otherwise noted.

3. Specifications are subject to change without notice.

Features

!

2.1mmx0.6mm SMT LED, 1.0mm THICKNESS.

!

LOW POWER CONSUMPTION.

!

WIDE VIEWING ANGLE.

!

IDEAL FOR BACKLIGHT AND INDICATOR.

!

VARIOUS COLORSAND LENS TYPES AVAILABLE.

!

PACKAGE : 2000PCS / REEL.

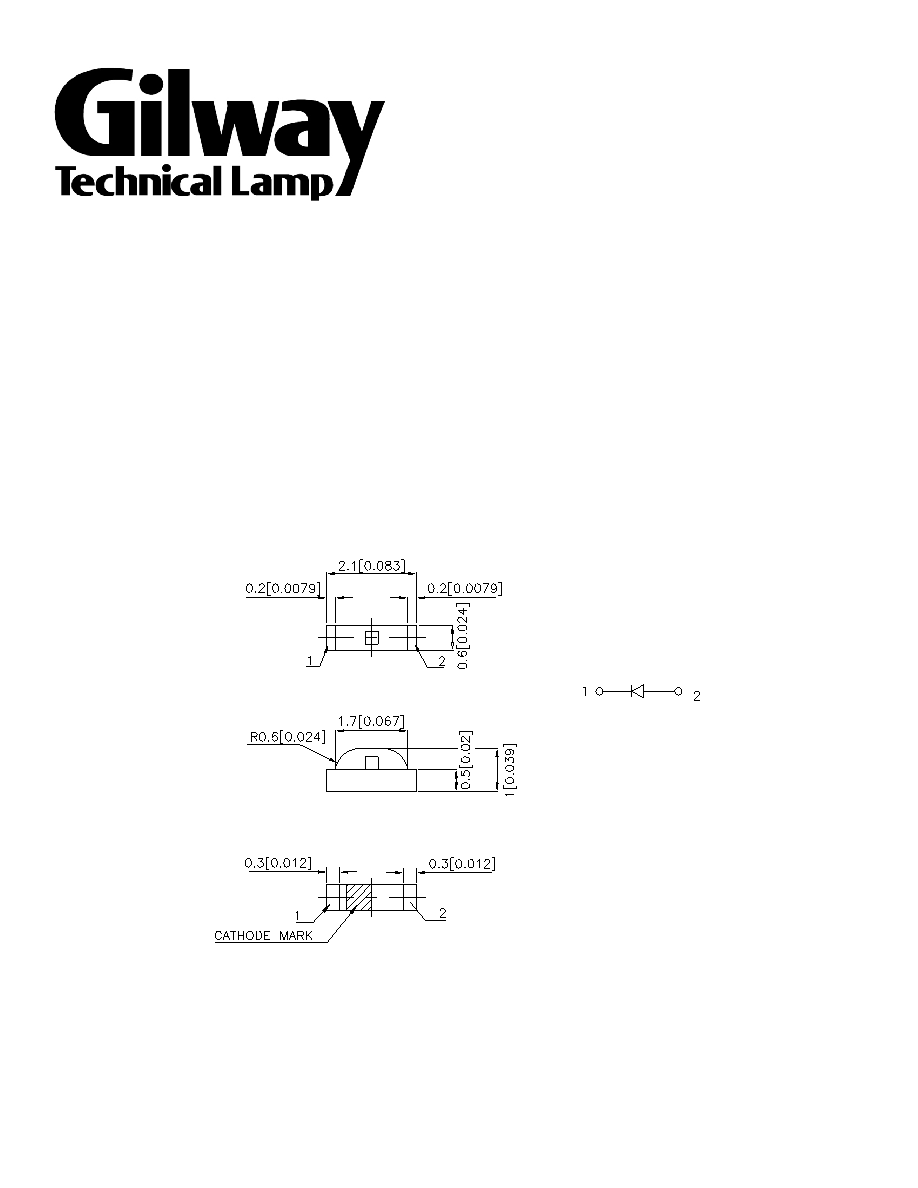

Package Dimensions

Description

The Hyper Red source color devices are made

with DH InGaAlP on GaAs substrate Light Emitting

Diode.
