1) Dust protected verstion is recommended.

2) If water cleaning is required after the relay is assembled on PCB, please contact us for suggestion about suitable parts.

3) If the switch-off peak voltage of coil is required to be smaller than 100V, R1 or R2 shall be used (measured voltage of 12V is 13.5V, that

of 24V is 27V); If parallel diode, Zenet Diode or other components ate required, please contact Ever-way for more technical supports.

2

ORDERING INFORMATION

Outline Dimensions

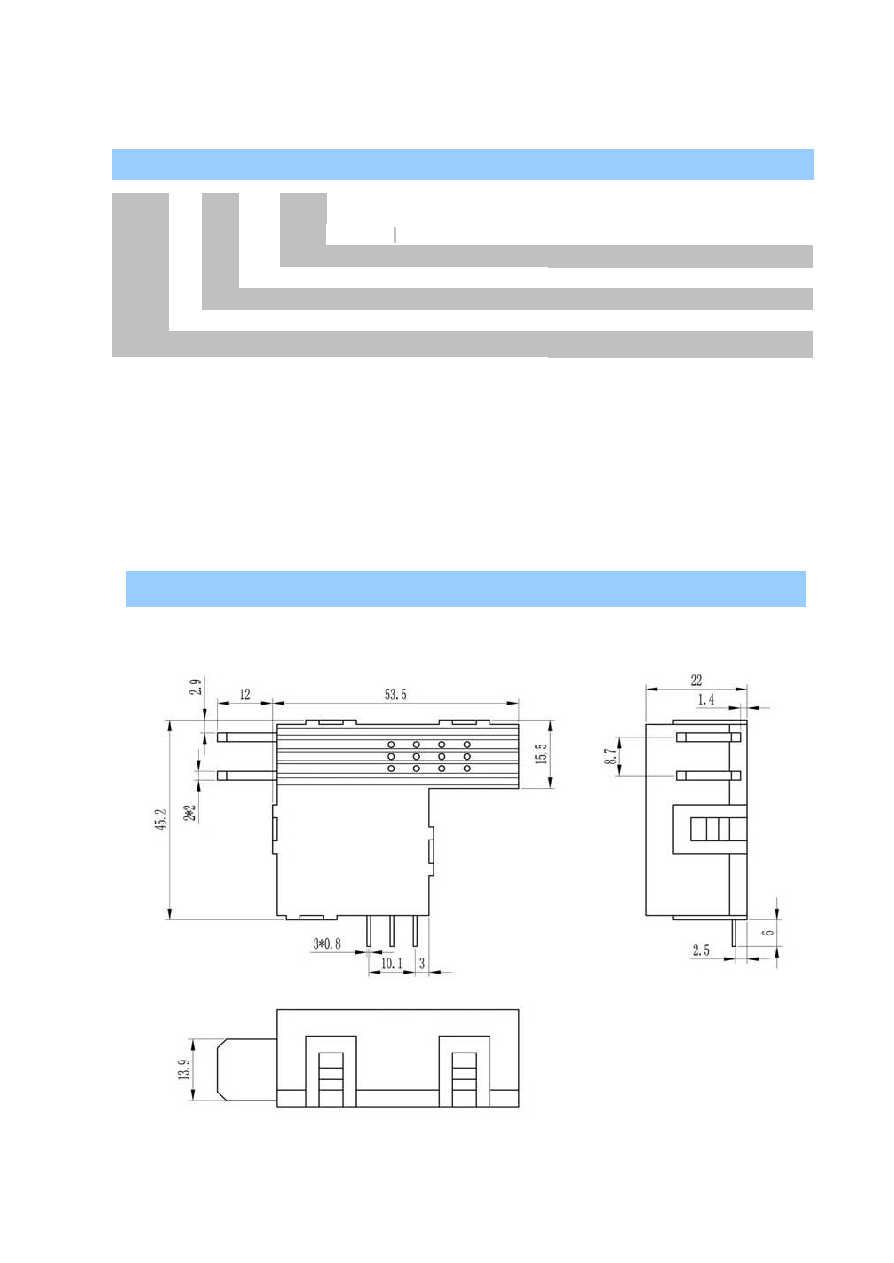

OUTLINE DIMENSIONS AND WIRING DIAGRAM

Unit: mm

WM

831

-1

12

B

-R

(XXX)

Special request code

According to customer's requirement

Polarity

R: Negative polarity NIL:Positive polarity

Contact Form

B: 1Form B A:1Form A

Coil voltage

6V,12V,24V,48V DC

Sort

1: 1coil latching 2:2 coils latching

Type

WM 831
