MBR2060CT-FCT-DC-CS

1 / 4

www.yfwdiode.com

Dongguan YFW Electronics Co, Ltd.

SCHOTTKY BARRIER RECTIFIER

Reverse Voltage - 60 V

Forward Current - 20 A

FEATURES

MECHANICAL DATA

Primary Characteristic

Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified

Parameter

Symbols

Value

Units

Maximum Repetitive Peak Reverse Voltage

60

V

Maximum RMS voltage

60

V

Maximum DC Blocking Voltage

60

V

Maximum Average Forward Rectified Current

Per Leg

10

A

Total

20

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

300

A

Operating Temperature Range

-55 ~ +150

°C

Storage Temperature Range

-55 ~ +150

°C

Typical Thermal Resistance

(Note1)

2/4

°C/W

Note1: Thermal resistance from Junction to case per leg mounted on heatsink.

Electrical Characteristics (Per Leg) unless otherwise specified

Characteristics

Symbols

Value

Units

Forward Voltage Drop(Note2)

Typ

Max

V

TA=25°C

0.51

-

TA=125°C

0.45

-

TA=25°C

0.59

-

TA=125°C

0.53

-

TA=25°C

0.72

0.78

TA=125°C

0.63

-

V

TA=25°C

3

50

uA

TA=125°C

2

-

mA

Note2:Pulse test: 300 μs pulse width, 1 % duty cycle

2*10A

60V

300A

0.63V

150°C

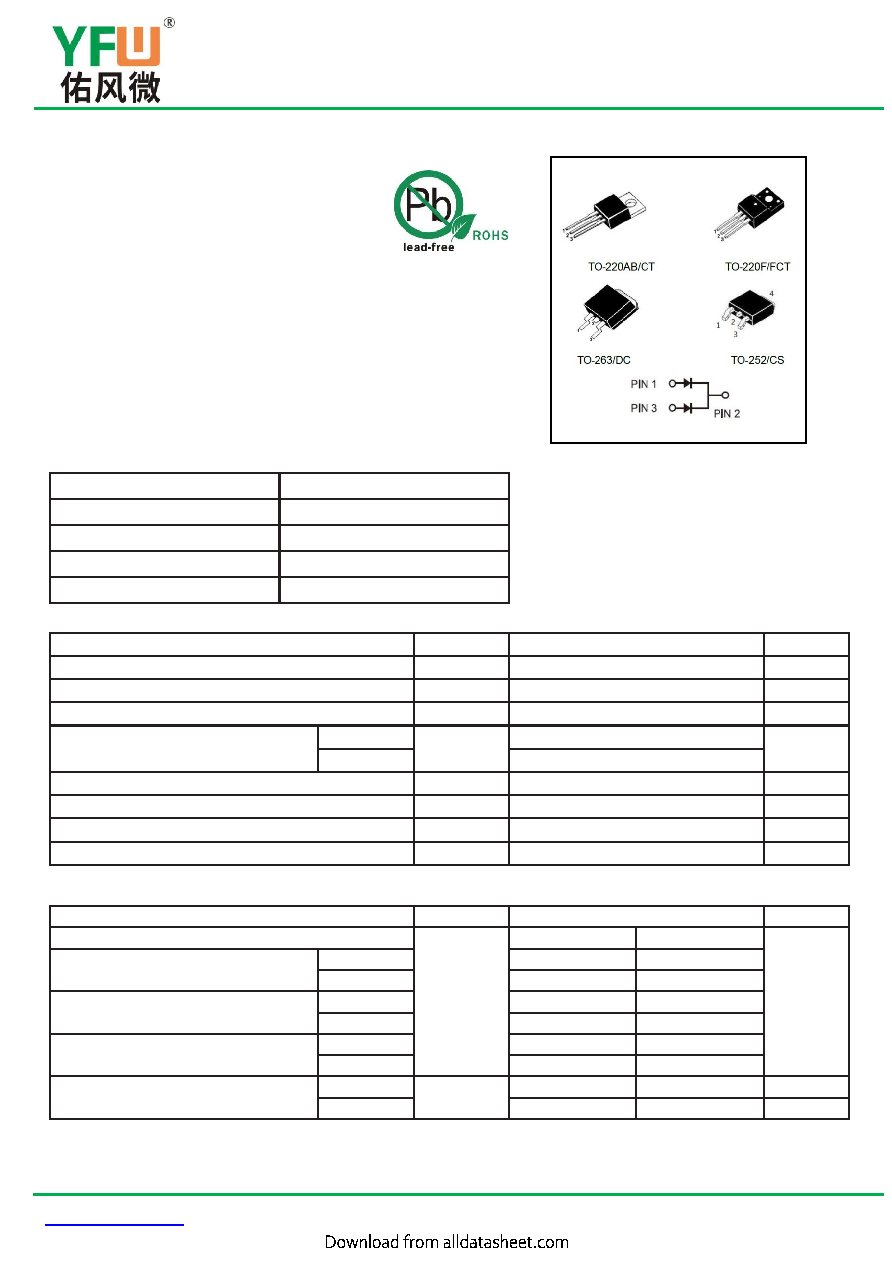

TO-220AB,TO-263 TO-220F TO252
