Part #:

Revision:

5

PATENT NUMBER

D898600

10309594

Mallory Sonalert Products, Inc.

JT028-R-CSL

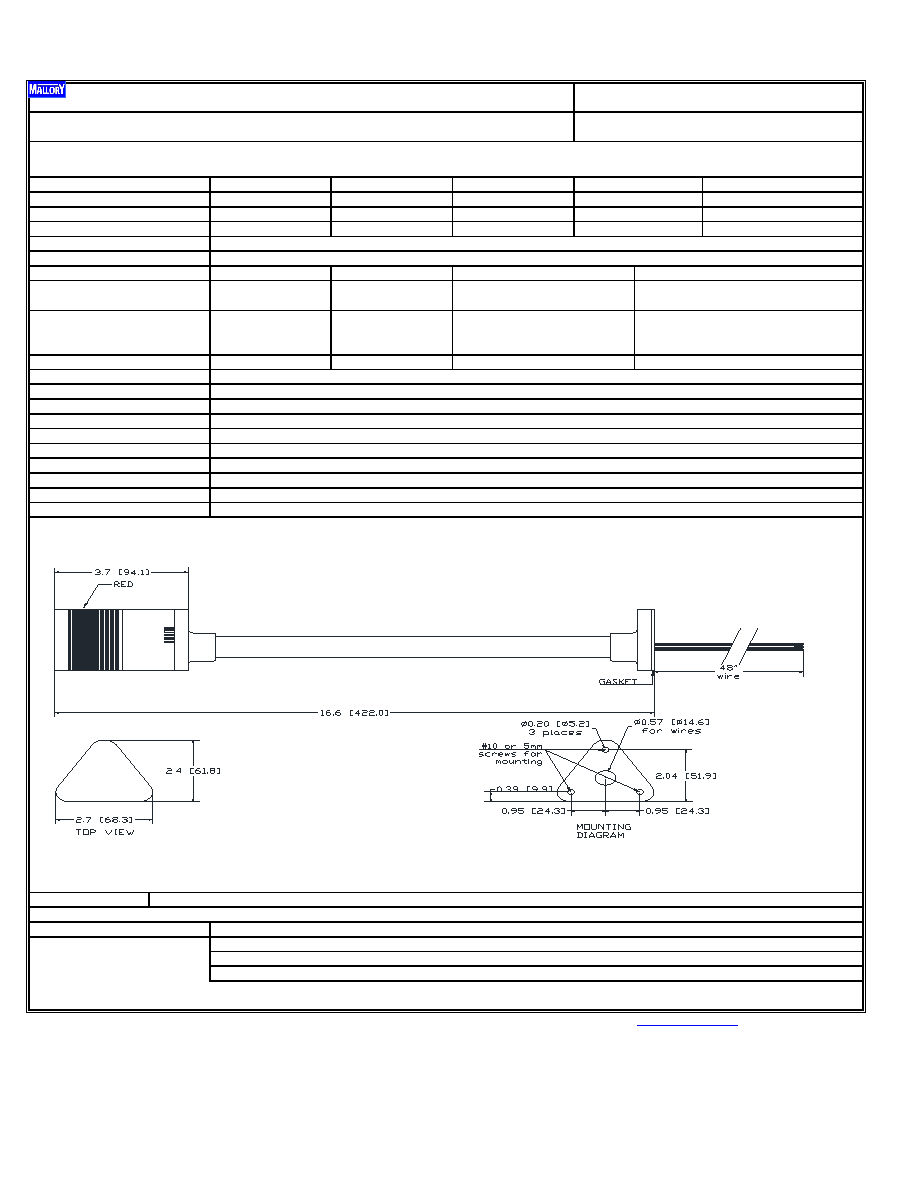

Sales Outline Drawing

D

Specifications:

Stack Number:

1

LED Color:

RED

Connection Wires:

Red and Brown

LED Current Draw:

<50 mA

Rated Voltage:

24 VAC/DC

Operating Voltage:

20-28 VAC/DC

Mode of Operation:

Continuous

Medium Pulse

(5PPS)

Double Pulse (0.5PPS)

Continuous for 5 sec then 0.1s beep until

reset

Sound Level Category:

Loud

Loud

Loud

Loud

Sound Current Draw:

40mA Max.

40mA Max.

40mA Max.

40mA Max.

Connection:

Black and Gray

Wires

Black and Gray

Wires; Orange wire

connected to

Black and Gray Wires; Purple

wire connected to Green/Yellow

wire

Black and Gray wires; Orange and Purple

wires connected to Green/Yellow wire

Loudness @ 1m:

80-85 dB(A) Typ.

Frequency:

2000 ± 500 Hz

Total Max Current:

<90mA with all LED's and sound unit working

Operating Temperature:

-25° ~ +60°C

Lens Color:

Opaque White

Material:

ABS FR15U

Inches (mm)

ROHS Compliant

Mounting Method:

Stainless Steel Pole

Weight Typical (g):

640

NEMA 12:

Approved

cUL Recognized

FOR CONT/BEEP, CONNECT GRAY & BLACK TO POWER AND ORANGE & PURPLE TO GREEN/YELLOW WIRE.

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010

www.mspindy.com

LED OPERATION:

CONNECT STACK COLOR WIRE TO POWER AND BROWN WIRE TO POWER.

SOUND OPERATION:

CONNECT GRAY AND BLACK WIRES TO POWER FOR CONTINUOUS SOUND.

FOR MEDIUM PULSE, CONNECT GRAY & BLACK TO POWER AND ORANGE WIRE TO GREEN/YELLOW WIRE.

FOR DOUBLE PULSE, CONNECT GRAY & BLACK TO POWER AND PURPLE WIRE TO GREEN/YELLOW WIRE.

Options:

Please contact factory.

Dimensions:
