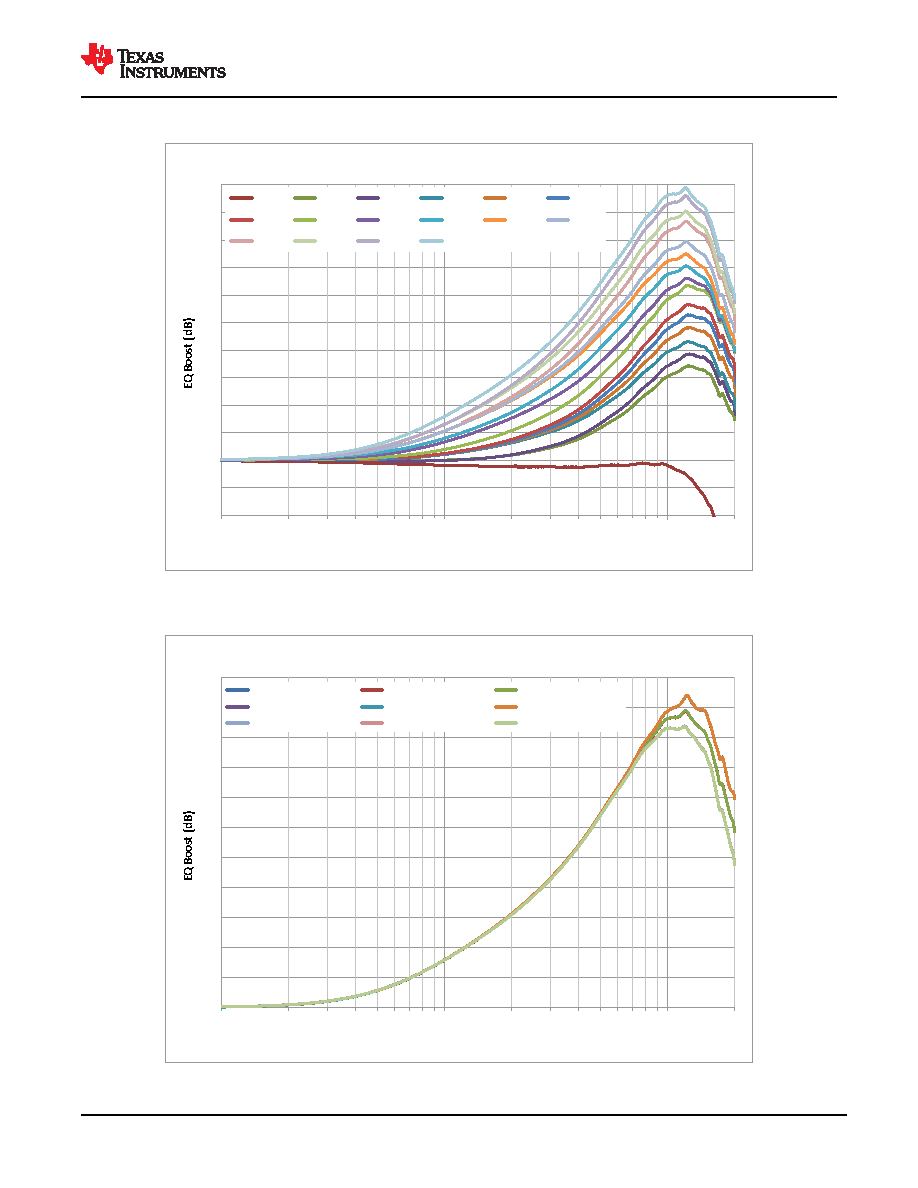

6.8 Typical Characteristics
-4
-2
0
2
4
6
8
10
12
14
16
18
20
0.1
1
10
Frequency (GHz)
Equalization Boost vs Frequency
EQ=0
EQ=1
EQ=2
EQ=3
EQ=4
EQ=5
EQ=6
EQ=7
EQ=8
EQ=9
EQ=10
EQ=11
EQ=12
EQ=13
EQ=14
EQ=15
Figure 6-1. Typical EQ Boost vs Frequency
0
2
4
6
8
10
12
14
16
18
20
22
0.1
1
10
Frequency (GHz)
Equalization over Voltage and Temperature (EQ=15)
VCC=3.3V, Temp=25C
VCC=3.0V, Temp=25C
VCC=3.6V, Temp=25C
VCC=3.3V, Temp=-40C
VCC=3.0V, Temp=-40C
VCC=3.6V, Temp=-40C
VCC=3.3V, Temp=85C
VCC=3.0V, Temp=85C
VCC=3.6V, Temp=85C
Figure 6-2. Typical EQ Boost over Voltage and Temperature with EQ=15
www.ti.com
DS160PR412
SNLS685 – DECEMBER 2020
Copyright © 2020 Texas Instruments Incorporated
Submit Document Feedback
11
Product Folder Links: DS160PR412
