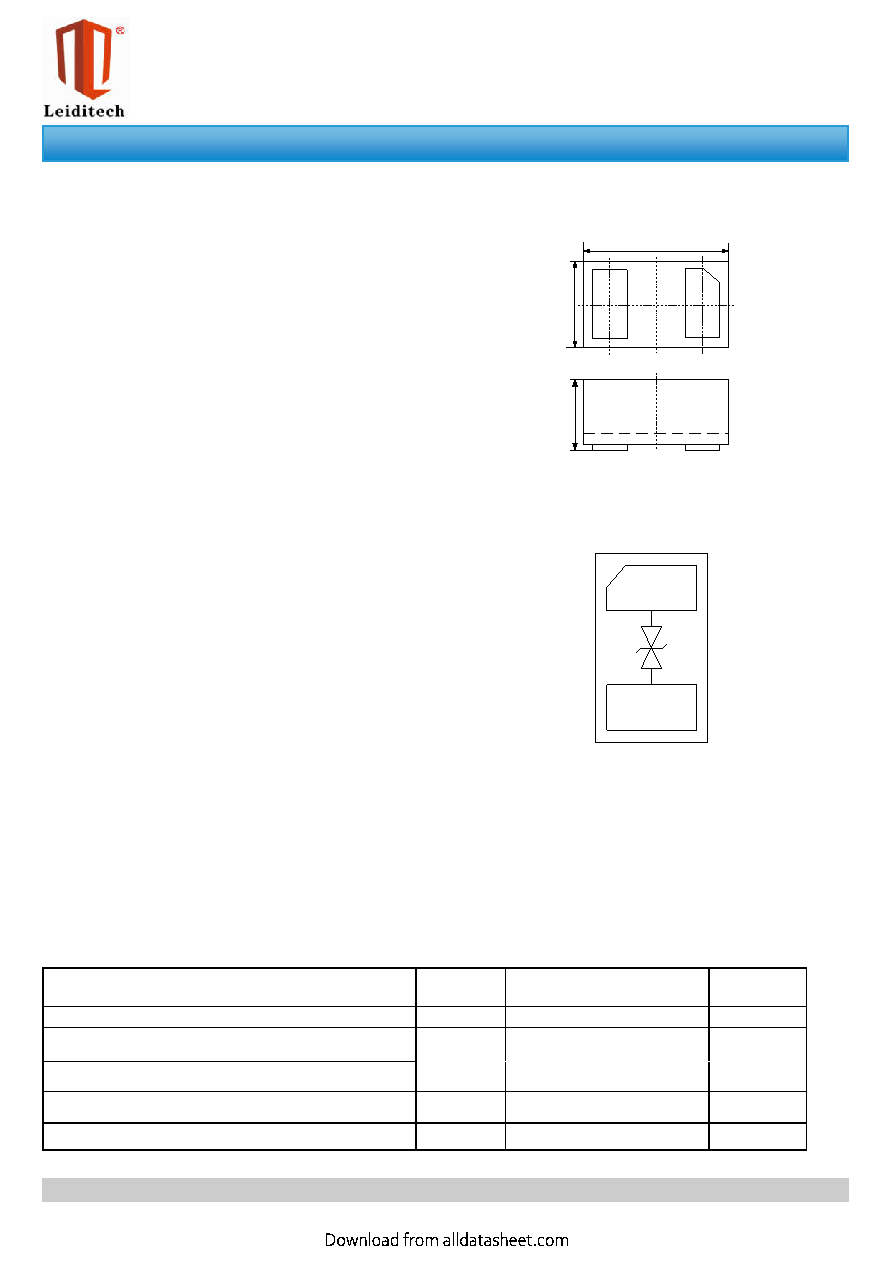

SDA0511CDN

Features

●

Applications

●

Dimensions DFN1006

Pin Configuration

Mechanical Characteristics

●

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

400

W

ESD per IEC 61000−4−2 (Air)

VESD

±30

Kv

ESD per IEC 61000−4−2 (Contact)

±25

Operating Temperature Range

TJ

-55 to +125

℃

Storage Temperature Range

TSTJ

-55 to +150

℃

1-Line Bi-directional TVS Diode

Ultra small package: 1.0x0.6x0.5mm

Protects one data or power line

Ultra low leakage: nA level

Low operating voltage: 5V

Low clamping voltage

2-Pin leadless package

Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±30kV

Contact discharge: ±25kV

– IEC61000-4-4 (EFT) 40A (5/50ns)

– IEC61000-4-5 (Lightning) 25A (8/20μs)

RoHS Compliant

●

Cellular Handsets and Accessories

Personal Digital Assistants

Notebooks and Handhelds

Portable Instrumentation

Digital Cameras

Peripherals

Audio Players

Keypads, Side Keys, LCD Displays

●

Package: DFN1006

Lead Finish: NiPdAu

Case Material: “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 3 per J-STD-020

Terminal Connections: See Diagram Below

Marking Information: See Below

●

0.6

-

.

0.5

Rev :

www.leiditech.com

01.06.2015

1/4
