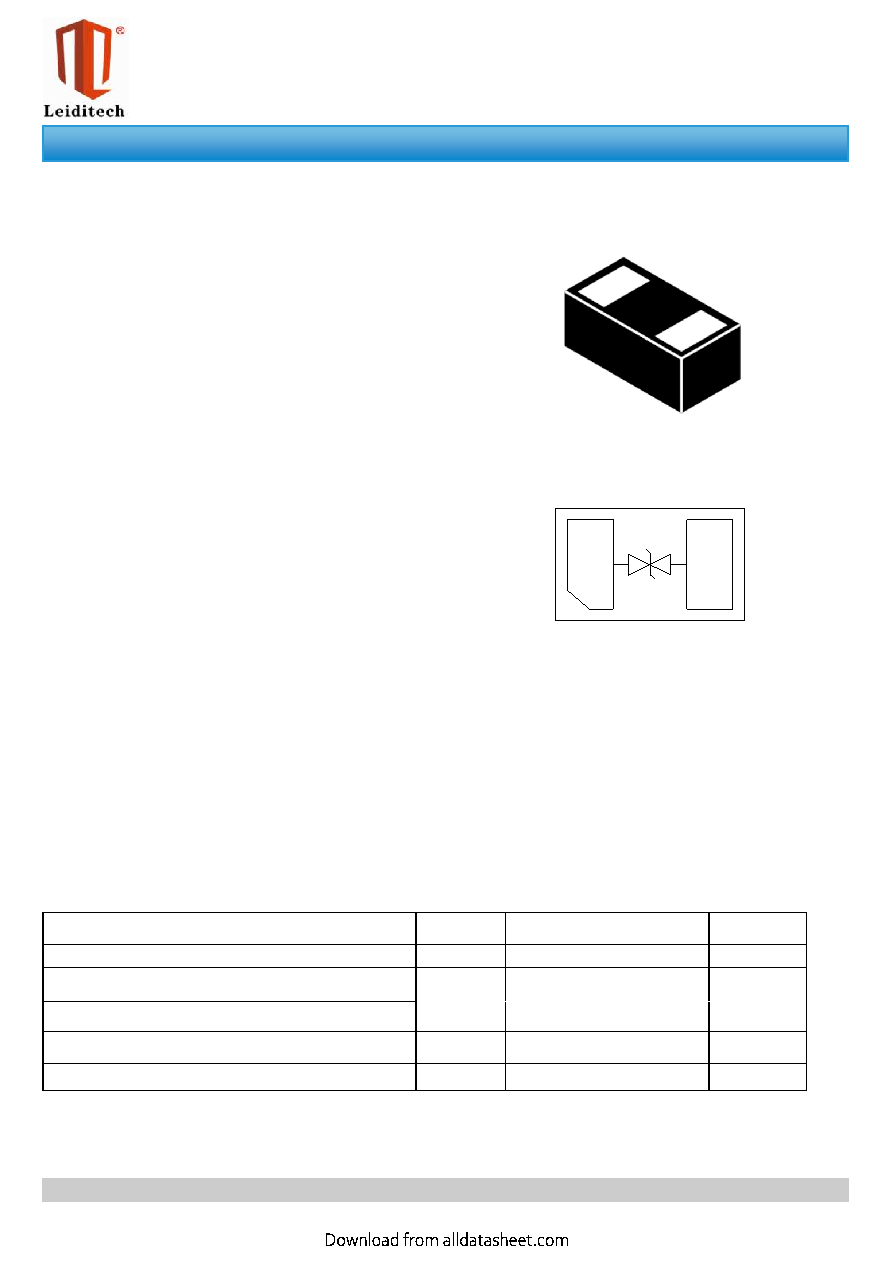

BIDIRECTIONAL TVS DIODE

Features

Applications

Dimensions DFN1006

Pin Configuration

Mechanical Characteristics

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

300

W

ESD per IEC 61000−4−2 (Air)

VESD

±30

Kv

ESD per IEC 61000−4−2 (Contact)

±30

Operating Temperature Range

TJ

-55 to +125

℃

Storage Temperature Range

TSTJ

-55 to +150

℃



Protects one data line



Ultra low leakage: nA level



Operating voltage: 1.8V



Ultra low clamping voltage



Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±30kV

Contact discharge: ±30kV

– IEC61000-4-5 (Lightning) 38A (8/20μs)



RoHS Compliant



Cellular Handsets and Accessories



Personal Digital Assistants



Notebooks and Handhelds



Portable Instrumentation



Digital Cameras



Peripherals



Audio Players



Keypads, Side Keys, LCD Displays



Package: DFN1006



Case Material: “Green” Molding Compound.



Moisture Sensitivity: Level 3 per J-STD-020



Terminal Connections: See Diagram Below



Marking Information: See Below

Rev :

www.leiditech.com

01.06.2018

1/4
