MODEL: M2DU

M2DU SPECIFICATIONS

ES-5028 Rev.6 Page 2/2

http://www.m-system.co.jp/

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

Line voltage effect

Supply output: ±3 % over voltage range

Output signal: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @1 minute (input to output

to power to ground)

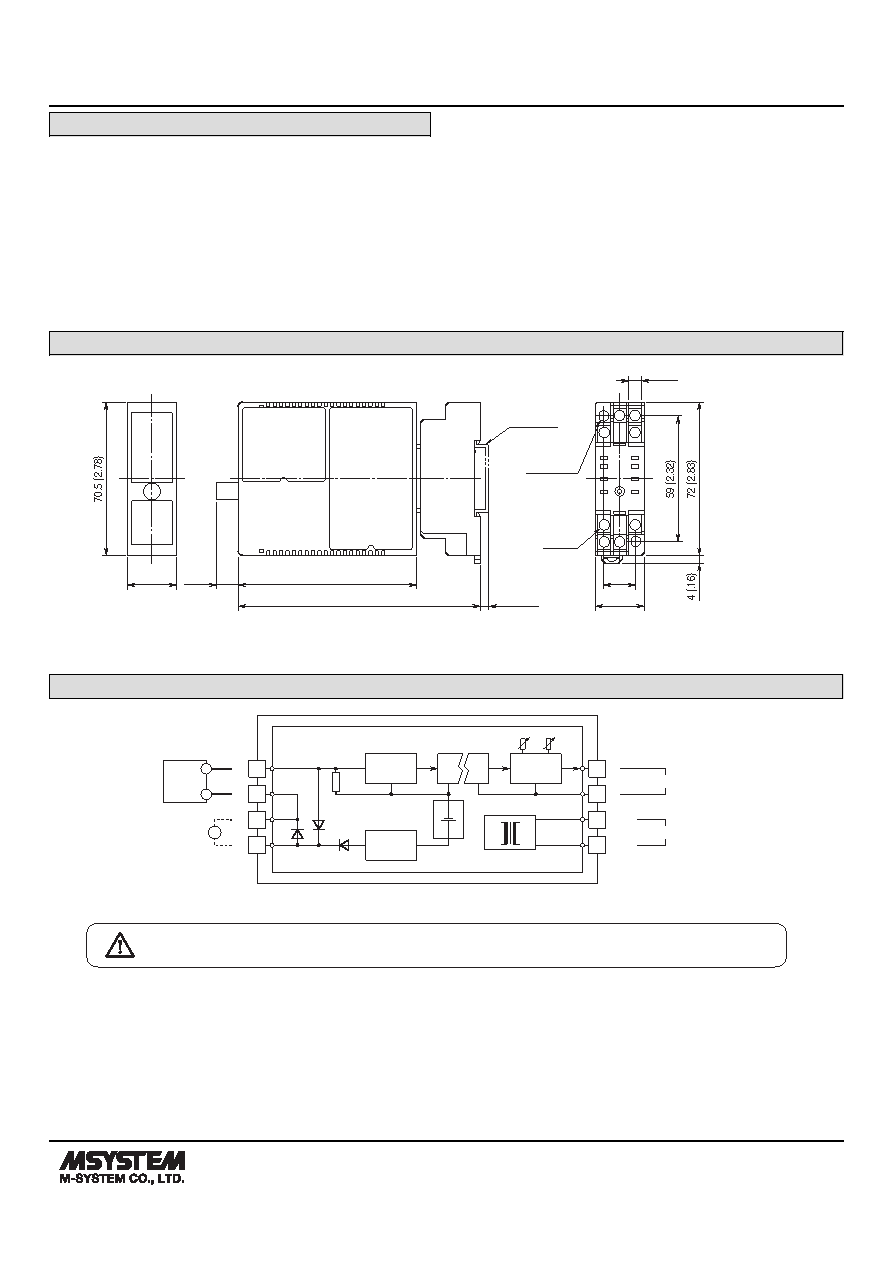

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

5

9

21.5 (.85)

84 (3.31)

10 (.39)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

114 (4.49)

• When mounting, no extra space is needed between units.

4

8

12

14 13

1

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

U(+)

V(–)

+

–

Isolation

Base Socket

S

Z

Output

Driver

OUTPUT

5

9

12

POWER

13

14

Low Drift

Amplifier

100Ω

+

–

+

–

4

8

1

–

+

MONITOR

(10 – 50mA DC)

mA

Shortcircuit

Protection

2-WIRE

TRANSMITTER
