MODEL: ABS3

ABS3 SPECIFICATIONS

ES-9413 Rev.4 Page 3/4

https://www.m-system.co.jp/

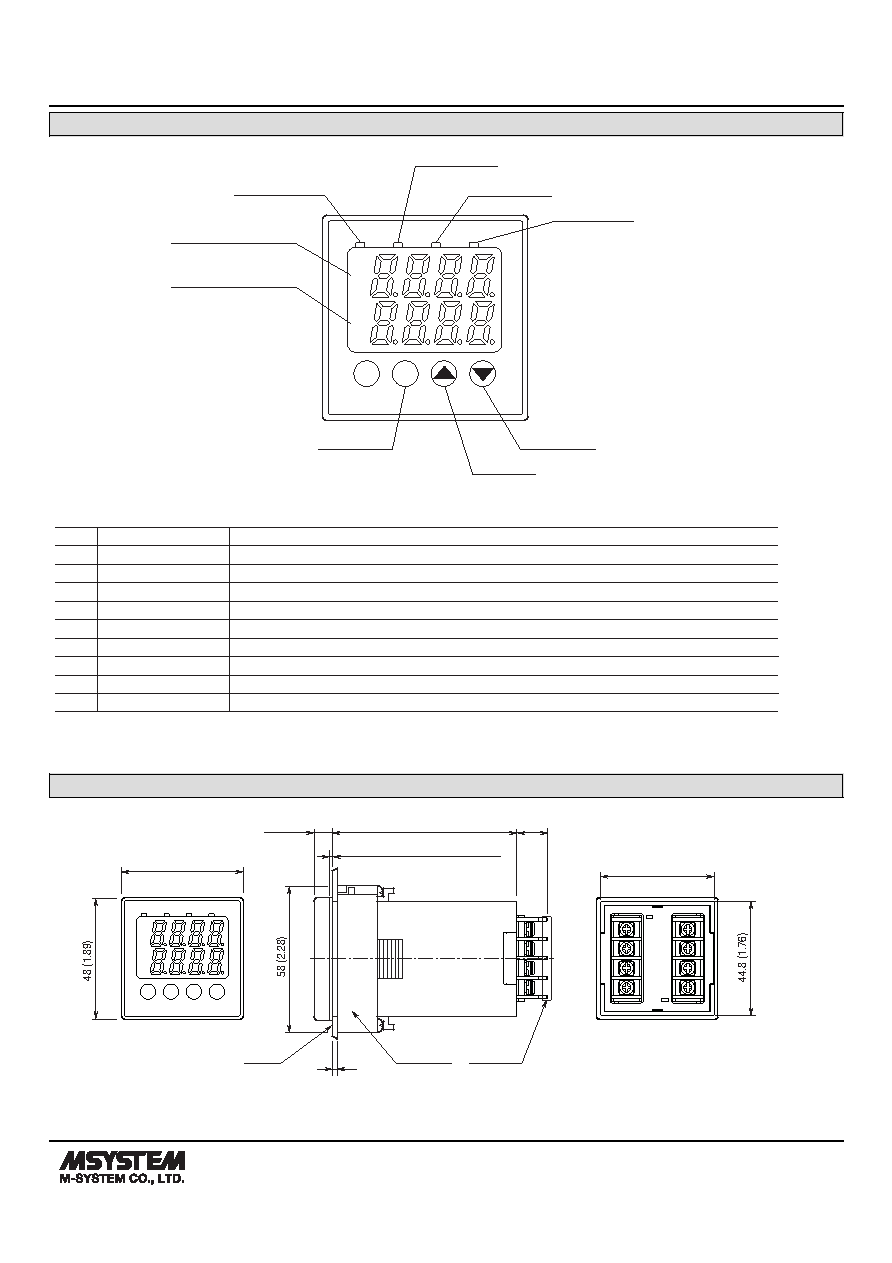

EXTERNAL VIEW

Display

F. L3 Indicator

G. Select Key

Display

E. L2 Indicator

D. L1 Indicator

I. DOWN Key

H. UP Key

SEL

■ COMPONENT IDENTIFICATION

No.

COMPONENT

FUNCTION

A

PV display

Red LED indicates the measured value (PV) or parameter types.

B

SV display

Green LED indicates the setpoint value (SV) or parameter values.

C

Power indicator

Green LED turns on while the power is supplied.

D

L1 indicator

Amber LED turns on when setting the parameter block 1.

E

L2 indicator

Amber LED turns on when setting the parameter block 2.

F

L3 indicator

Amber LED turns on when setting the parameter block 3.

G

Select key

Select key used to move between parameter block levels, and to choose and apply parameters.

H

UP key

UP key used to choose parameters and increase the reading value. *1

I

DOWN key

DOWN key used to choose parameters and decrease the reading value. *1

*1. Holding down UP or DOWN key increases incrementing speed, except for controlling SV. In order to slow down, release the key

once and then continue.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

48 (1.89)

7.5 (.30)

71.5 (2.81)

14.8

(.58)

44.8 (1.76)

t

1 ≤ t ≤ 8

PANEL

1.5 (.06) WATERTIGHT PACKING

MOUNTING

BRACKET

TERMINAL

COVER

1

2

3

4

5

6

7

8
