MODEL: AS4LC

AS4LC SPECIFICATIONS

ES-1601 Rev.13 Page 3/4

https://www.m-system.co.jp/

Measurement Category II (output)

Installation Category II (power)

Pollution Degree 2

Input to output to power: Basic insulation (300 V)

RoHS Directive

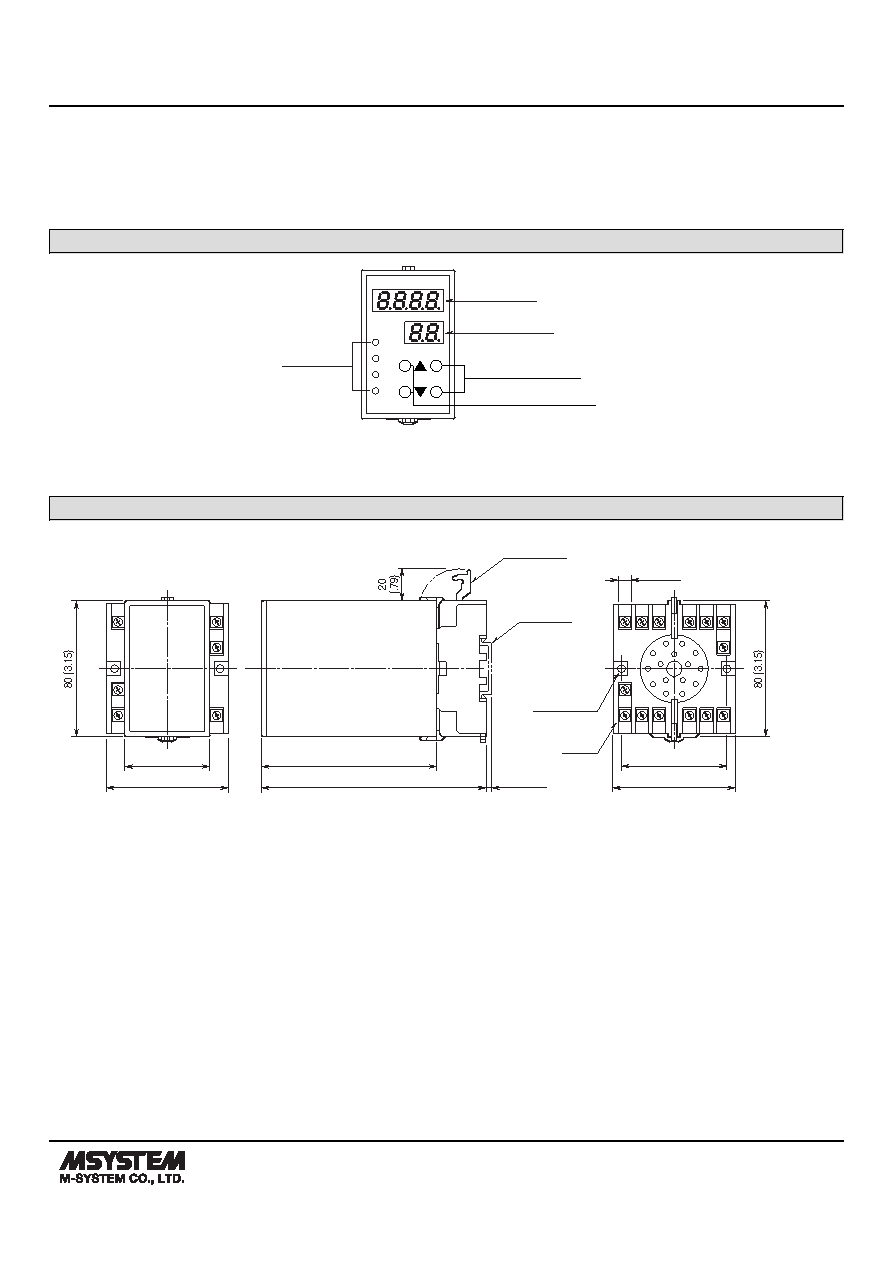

EXTERNAL VIEW

PL4

PL3

PL2

PL1

DATA

ITEM

ITEM No. Display

*Monitor LEDs

DATA Display

*PL3 or PL4 does not turn on for dual output type.

DATA

ITEM

DATA UP-DOWN Keys

ITEM No. UP-DOWN Keys

Refer to the instruction manual for detailed procedures.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

50 (1.97)

72 (2.83)

[3.3 (.13)]

60 (2.36)

72 (2.83)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

• When mounting, no extra space is needed between units.

12

5

6

14

11

1

10

15

4

3

2

7

9

8

103 (4.06)

132 (5.20)
