AD3V-S1A-R3SLASHQ datasheet(6/9 Pages) MSYSTEM

6 / 9 page

MODEL: AD3V

AD3V SPECIFICATIONS

ES-1389 Rev.24 Page 6/9

https://www.m-system.co.jp/

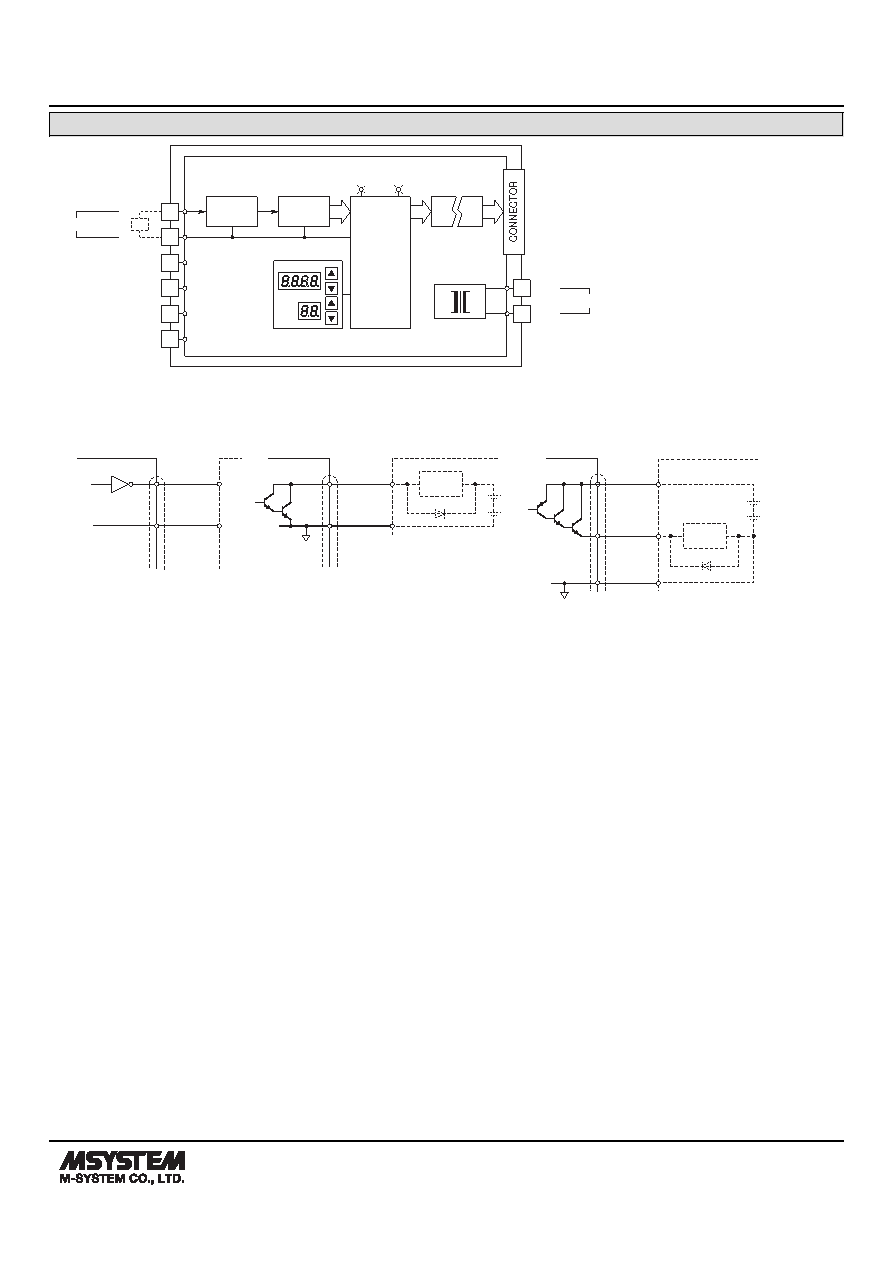

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Base Socket

U(+)

V(–)

POWER

Low Drift

Amplifier

Isolation

A/D

Converter

–

INPUT

*Input shunt resistor attached for current input.

OUTPUT

Digital

Computation

Circuit

PL1

(POL)

DATA

ITEM

PL2

(HOLD)

■ Connection Examples

AD3V

26-pin

CONNECTOR

H : 4.5V or more

L : 0.5V or less

OUTPUT

COM (-)

AD3V

26-pin

CONNECTOR

Max. collector-emitter voltage : 30V DC

Max. collector current : 30mA

Saturation voltage : ≤ 2.0V DC

Max. collector-emitter voltage : 30V DC

Max. collector current : 30mA

Saturation voltage : ≤ 1.1V DC

OUTPUT

COM (-)

LOAD

• OPEN COLLECTOR (NPN)

• OPEN COLLECTOR (PNP)

• CMOS LEVEL (5V-CMOS)

AD3V

COM (+)

OUTPUT

LOAD

COM (-)

26-pin

CONNECTOR

For inductive load, connect

a spark quenching diode at

load side.

For inductive load, connect

a spark quenching diode at

load side.
