MODEL: DA3

DA3 SPECIFICATIONS

ES-1395 Rev.14 Page 5/7

https://www.m-system.co.jp/

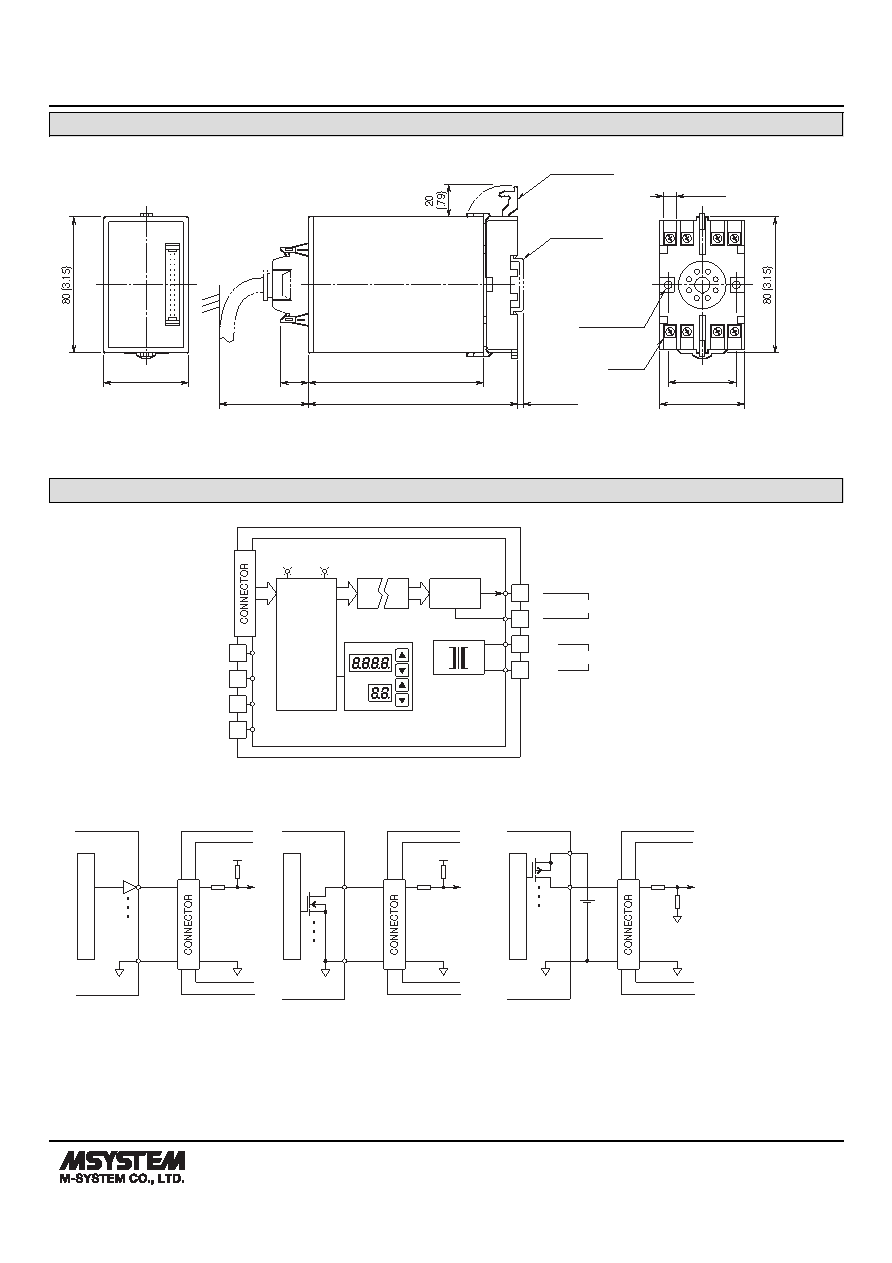

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

103 (4.06)

123 (4.84)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

15 (.59) deep

8–M3.5

SCREW

•When mounting, no extra space is needed between units.

16

(.63)

55 (2.17) min.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

■ Input Connection Examples

• Standard type

TTL level

• Option /A

24V DC

PLC

DA3

DA3

DA3

5V

Open collector, sink type

PLC

24V

PLC

Base Socket

U(+)

V(–)

POWER

7

8

D/A

Converter

Isolation

6

5

3

4

INPUT

Digital

Computation

Circuit

PL1

(POL)

DATA

ITEM

PL2

(LOAD)

+

–

OUTPUT

1

2
