MODEL: FFL

FFL SPECIFICATIONS

ES-1445 Rev.8 Page 2/3

http://www.m-system.co.jp/

Mounting: Surface or DIN rail; Standard Rack Mounting

Frame BX-16H available

Weight: 200 g (0.44 lb)

PERFORMANCE in percentage of span

Accuracy: ± 0.1 % (input 1 – 100 %)

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength

Power input code R:

2000 V AC @ 1 minute (input or output or power to ground)

500 V AC @ 1 minute (I/O to power)

Power input code K, L, P:

2000 V AC @ 1 minute (input or output or power to ground)

1500 V AC @ 1 minute (I/O to power)

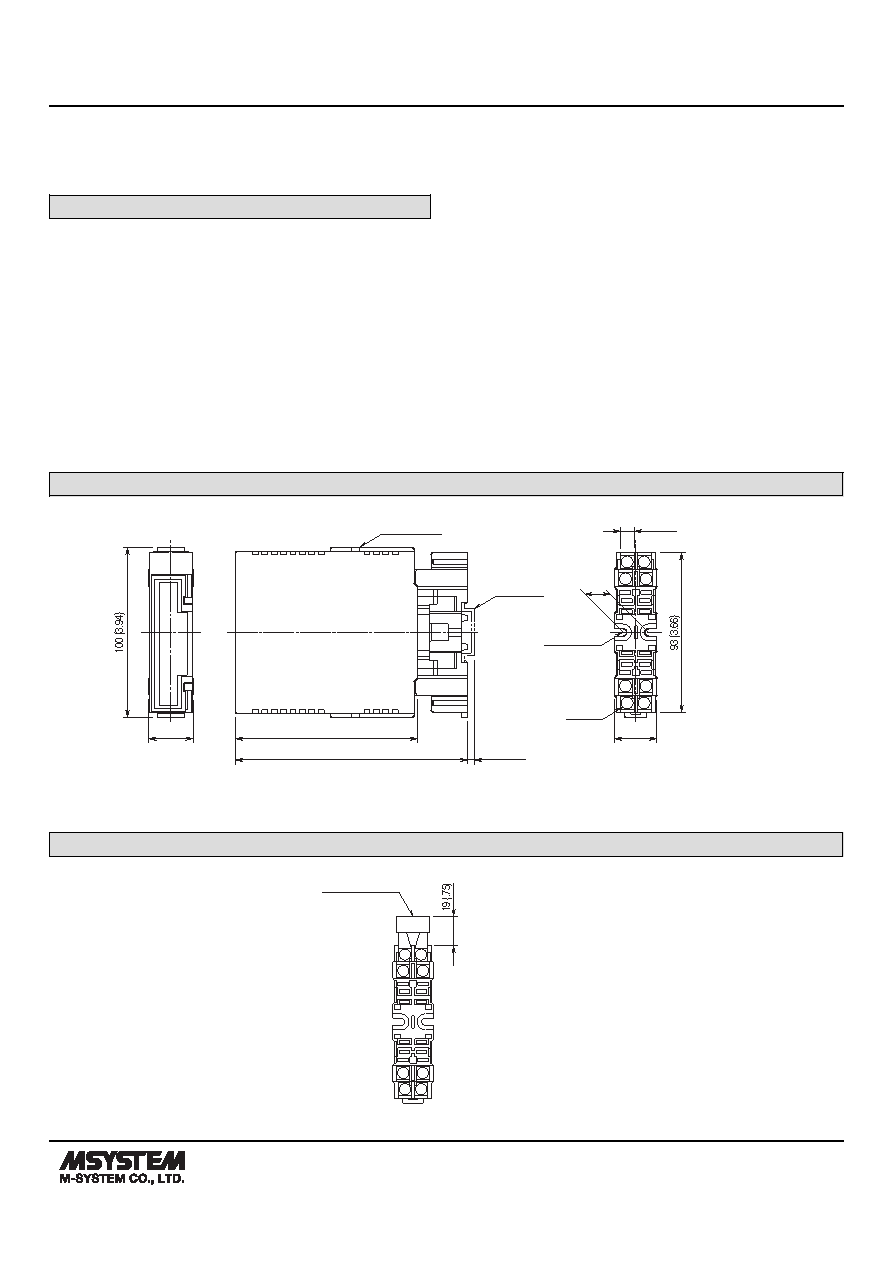

EXTERNAL DIMENSIONS unit: mm (inch)

1

2

3

4

7

6

8

5

26 (1.02)

15

(.59)

2–4.5 (.18)

HOLE

15 (.59) deep

8–M3.5

SCREW

7.8 (.31)

107 (4.21)

DIN RAIL

35mm wide

[3.3 (.13)]

CLAMP

(top & bottom)

137 (5.39)

•When mounting, no extra space is needed between units.

26 (1.02)

TERMINAL ASSIGNMENTS unit: mm (inch)

3

4

7

6

8

5

1

2

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.
