MODEL: HMS

HMS SPECIFICATIONS

ES-3443 Rev.1 Page 2/3

http://www.m-system.co.jp/

Load resistance: Output drive 15 V max.

■ DC Voltage: -10 – +12 V DC

Minimum span: 5 mV

Offset: Max. 1.5 times span

Load resistance: Output drive 1 mA max.; at ≥ 0.5 V

INSTALLATION

Current consumption: Approx. 80 mA

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Surface or DIN rail; Standard Rack Mounting

Frame BX-16H available

Weight: 200 g (0.44 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(input to output to power)

1500 V AC @ 1 minute (input or output or power to ground)

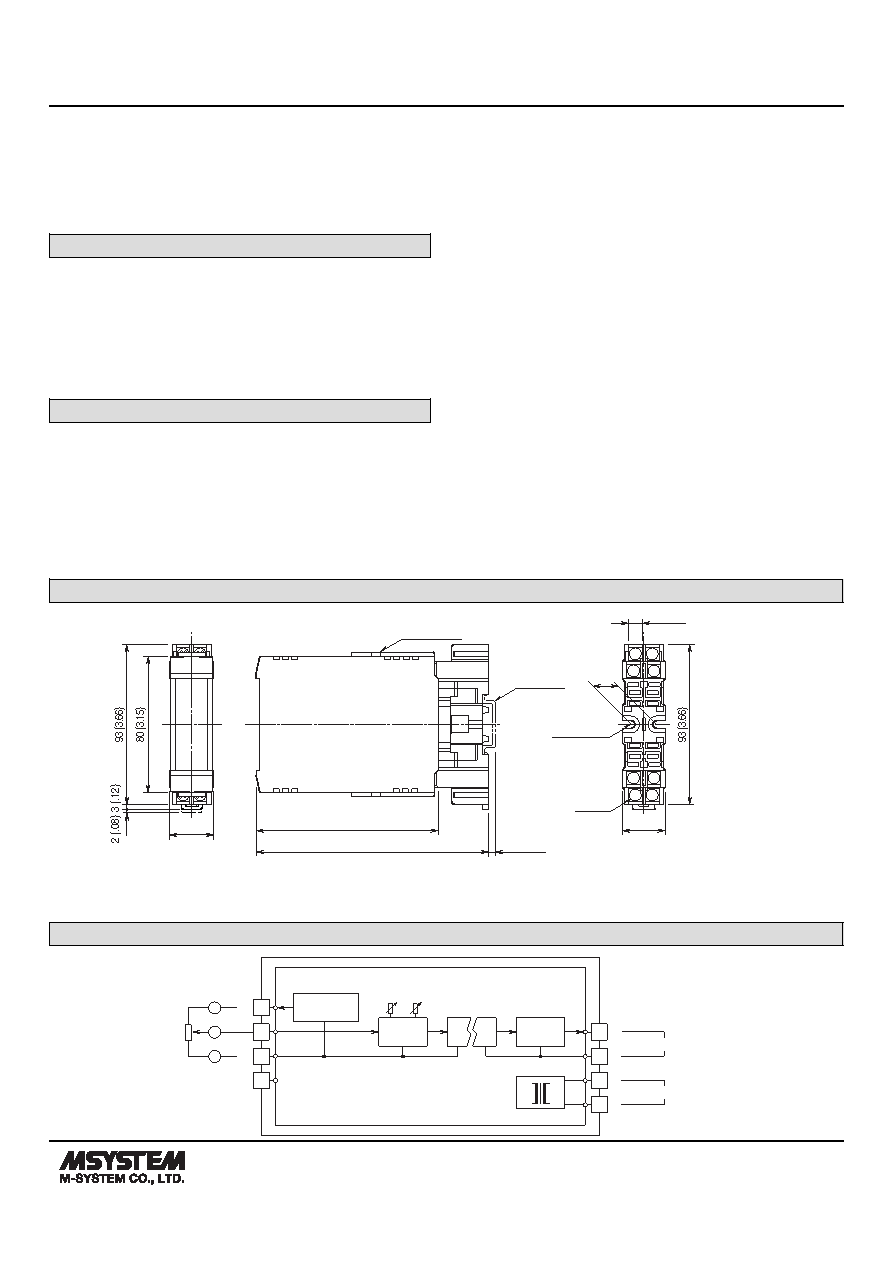

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

1

2

3

4

7

6

8

5

26 (1.02)

107 (4.21)

26 (1.02)

15

(.59)

2–4.5 (.18)

HOLE

15 (.59) deep

DIN RAIL

35mm wide

[3.3 (.13)]

8–M3.5

SCREW

CLAMP

(top & bottom)

137 (5.39)

•When mounting, no extra space is needed between units.

7.8 (.31)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

+

–

+

–

Isolation

Base Socket

Low Drift

Amplifier

Output

Driver

OUTPUT

4

5

6

S

Z

POWER

7

8

1

2

3

2

1

POTENTIOMETER

max.

min.

3

Excitation Volt.

Generator
