MODEL: HVP

HVP SPECIFICATIONS

ES-3421 Rev.13 Page 2/3

http://www.m-system.co.jp/

16H) available

Weight: 400 g (0.88 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.3 % including linearity and repeatability

Linearity: ±0.2 %

Repeatability: 0.1 %

Temp. coefficient: ±0.05 %/°C (±0.03 %/°F)

Response time: ≤ 3 sec. (0 – 90 %)

Mounting position effect: ±0.1 % (all dimensions)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(input to power)

1500 V AC @ 1 minute (input or power to housing)

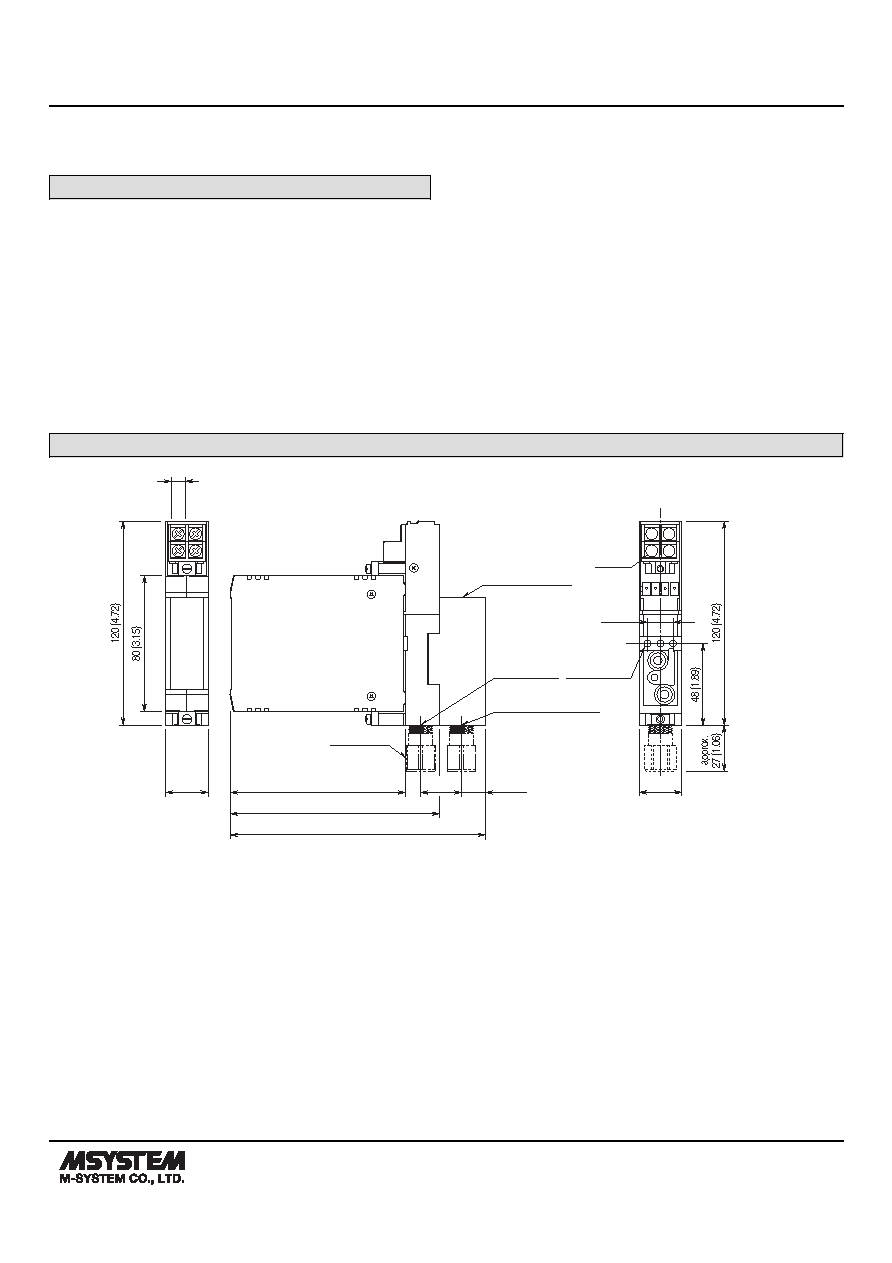

EXTERNAL DIMENSIONS unit: mm (inch)

1

2

3

4

25 (.98)

25 (.98)

15 (.59)

2–4.3 (.17) dia.

MTG HOLE

MOUNTING BLOCK

103 (4.06)

24 (.94)

14 (.55)

123 (4.84)

150 (5.91)

SUPPLY CONNECTION

Rc 1/4” or 1/4” NPT

OUTPUT

CONNECTION

•When mounting, no extra space

is needed between units.

4–M3.5

SCREW

8.3

(.32)
