MODEL: HPV

HPV SPECIFICATIONS

ES-3420 Rev.9 Page 2/3

http://www.m-system.co.jp/

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Surface; Standard Rack Mounting Frame (BX-

16H) available

Weight: 400 g (0.88 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.2 %

Temp. coefficient: ±0.03 %/°C (±0.02 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

psig)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500V AC @ 1 minute

(output to power to housing)

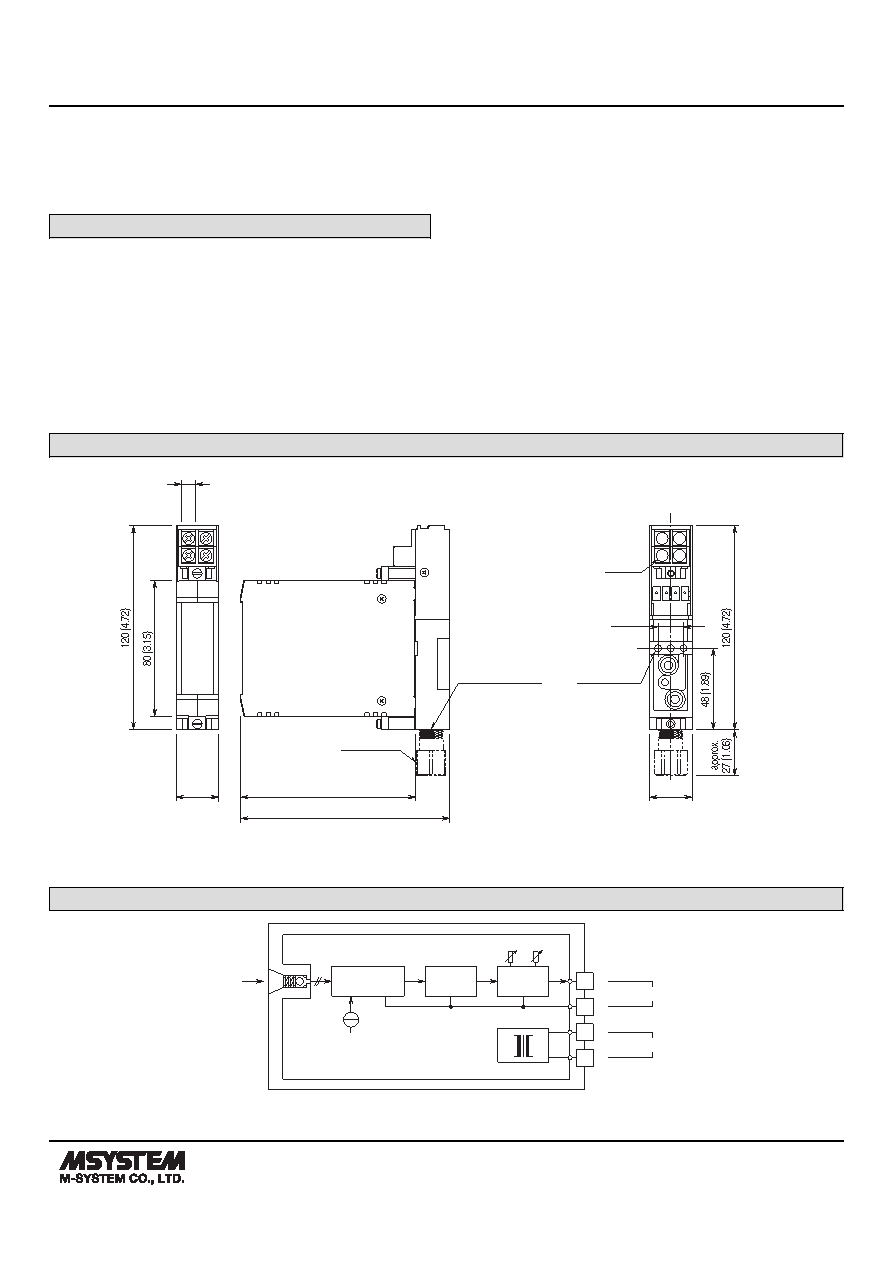

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

1

2

3

4

*Fitting provided for 1/4” NPT connection.

103 (4.06)

25 (.98)

123 (4.84)

25 (.98)

15 (.59)

2–4.3 (.17) dia.

MTG HOLE

PNEUMATIC

CONNECTION

Rc 1/4” or 1/4” NPT

4–M3.5

SCREW

*NPT FITTING

•When mounting, no extra space is needed between units.

8.3

(.32)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

Base Socket

S

Z

Semiconductor

Pressure Sensor

Output

Driver

OUTPUT

3

4

POWER

1

2

Low Drift

Amplifier

CONSTANT

CURRENT

INPUT

+

–
