MODEL: JAPD2

JAPD2 SPECIFICATIONS

ES-1571 Rev.6 Page 3/4

http://www.m-system.co.jp/

PERFORMANCE in percentage of span

Accuracy

Output 10 kHz range: ±0.3 %

Output ≤ 1 kHz range: ±0.1 %

Alarm setpoint accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: 0.3 sec. + (one cycle at 100 % output)

Time required from a step input (0 – 100 %) to the first

pulse output.

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @ 1 minute (input to alarm

output to output to power to ground)

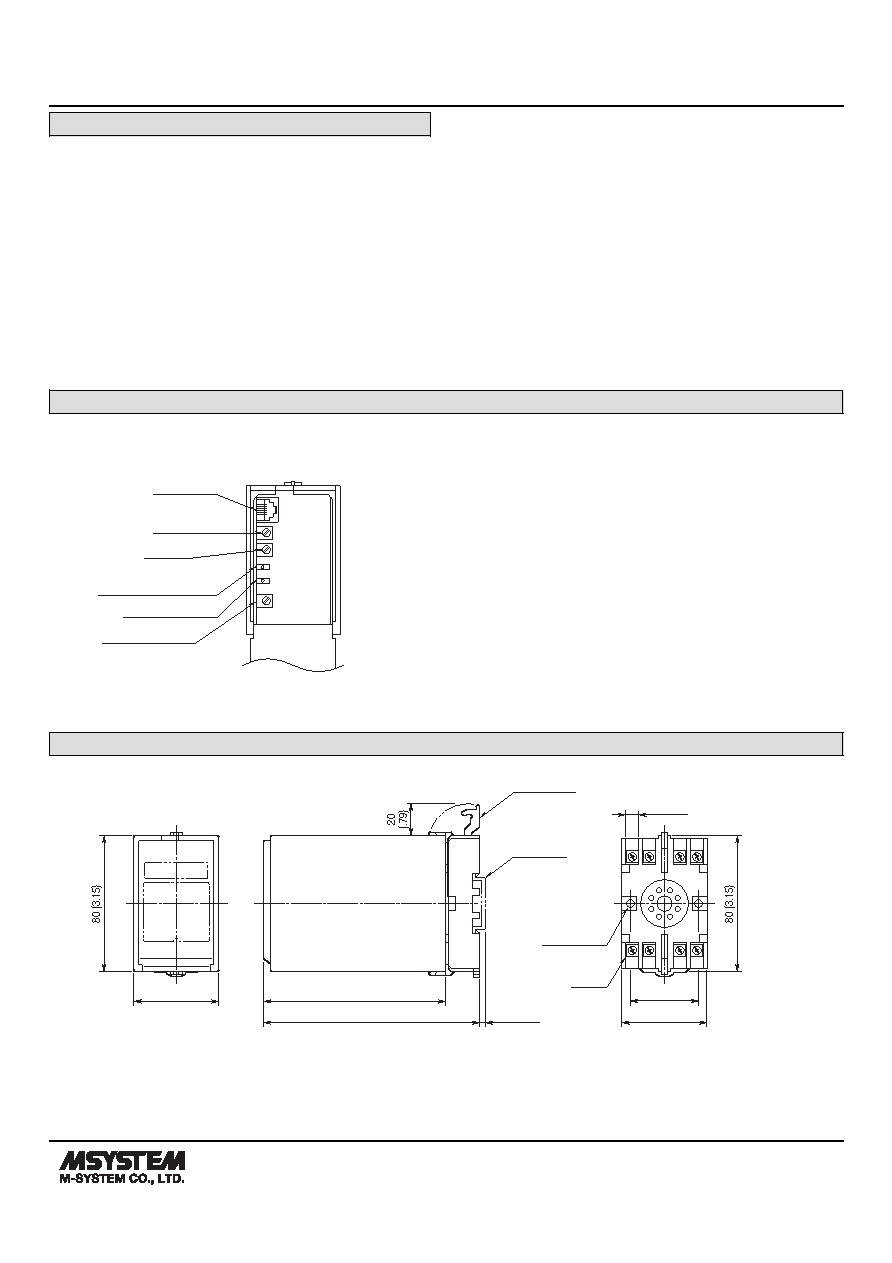

EXTERNAL VIEW

DO NOT change the Output Voltage Adjuster.

Output Voltage Adj.

*

Output Monitor LED

Modular Jack

Zero Adj.

Span Adj.

Monitor LED (no function)

EXTERNAL DIMENSIONS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

107 (4.21)

127 (5)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

15 (.59) deep

8–M3.5

SCREW

• When mounting, no extra space is needed between units.
