MODEL: L4AS

L4AS SPECIFICATIONS

ES-1991 Rev.5 Page 3/4

http://www.m-system.co.jp/

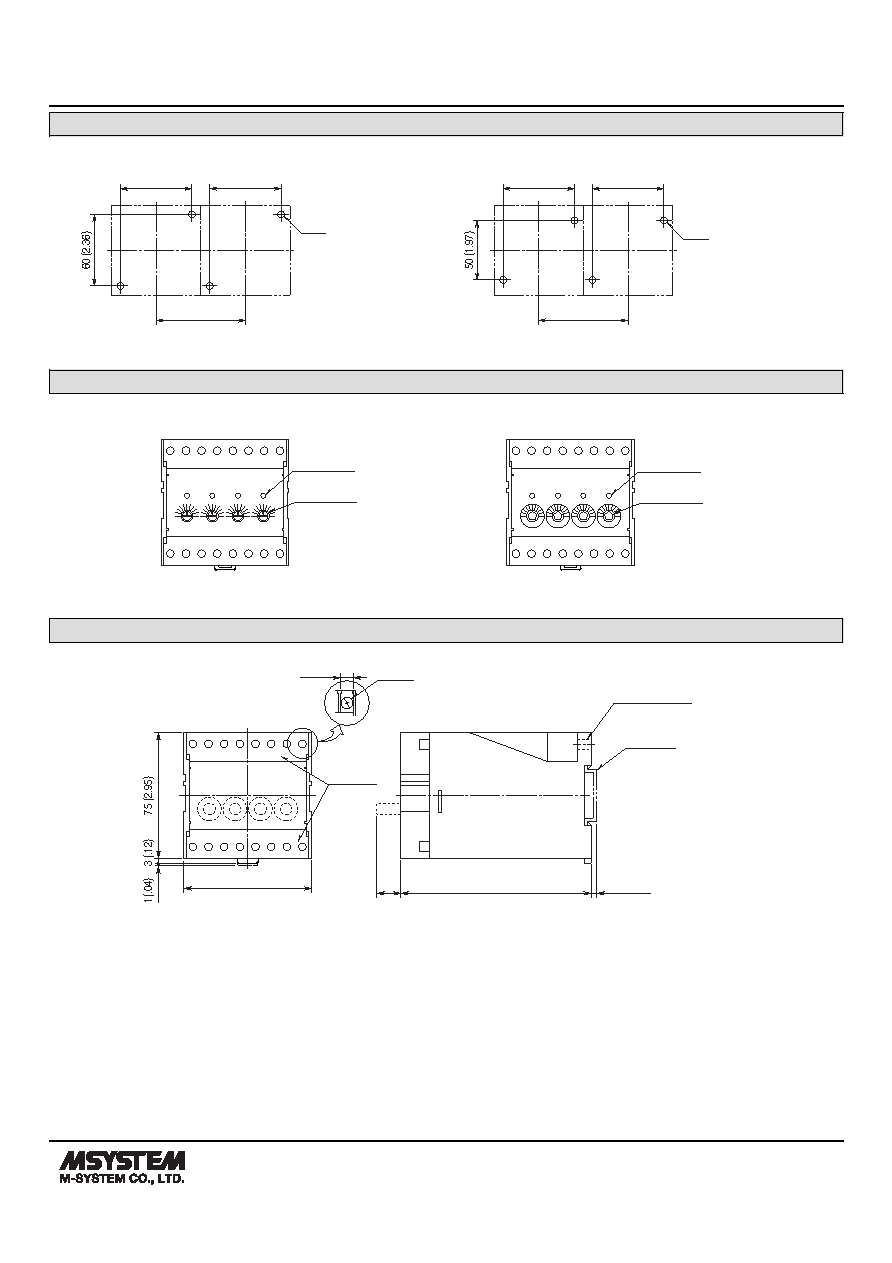

MOUNTING REQUIREMENTS

2–M5

60 (2.36)

75 (2.95) MIN.

60 (2.36)

■ M5 SCREWS

2–M4

60 (2.36)

75 (2.95) MIN.

60 (2.36)

■ M4 SCREWS

EXTERNAL VIEW

Monitor LED

Setpoint Adj.

Monitor LED

Setpoint Adj.

■ SCREWDRIVER ADJUSTMENTS

■ DIAL ADJUSTMENTS

1

2

3

4

1

2

3

4

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

112 (4.41)

[3.3 (.13)]

DIN RAIL

35mm wide

14*

(.55)

8 (.31)

16–M3.5

SCREW

TERMINAL

COVER

2–5.8 (.23) dia. or

2–4.8 (.18) dia.

MTG HOLE

8 (.31) deep

*Dial adj.

75 (2.95)

9 10 11 12 13 14 15 16

1 2

3

4

5

6

7 8

• When mounting, no extra space is needed between units.
