MODEL: KFS

KFS SPECIFICATIONS

ES-3533 Rev.2 Page 3/4

http://www.m-system.co.jp/

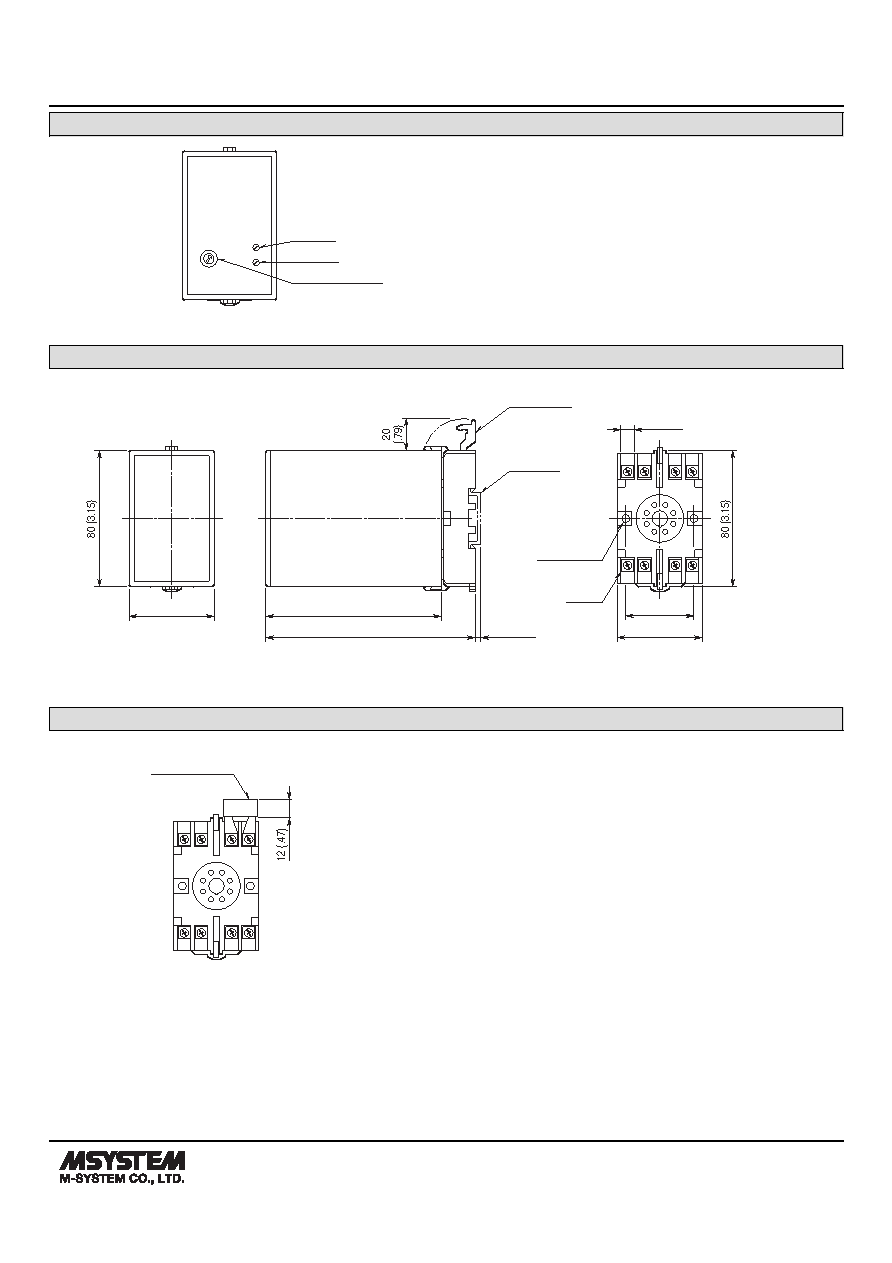

EXTERNAL VIEW

Span Adj.

Zero Adj.

Time Constant Adj.

EXTERNAL DIMENSIONS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

103 (4.06)

123 (4.84)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

15 (.59) deep

SCREW

• When mounting, no extra space is needed between units.

TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

2

1

8

7

3

4

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.
