MODEL: M2MST

M2MST SPECIFICATIONS

ES-5080 Rev.6 Page 3/4

http://www.m-system.co.jp/

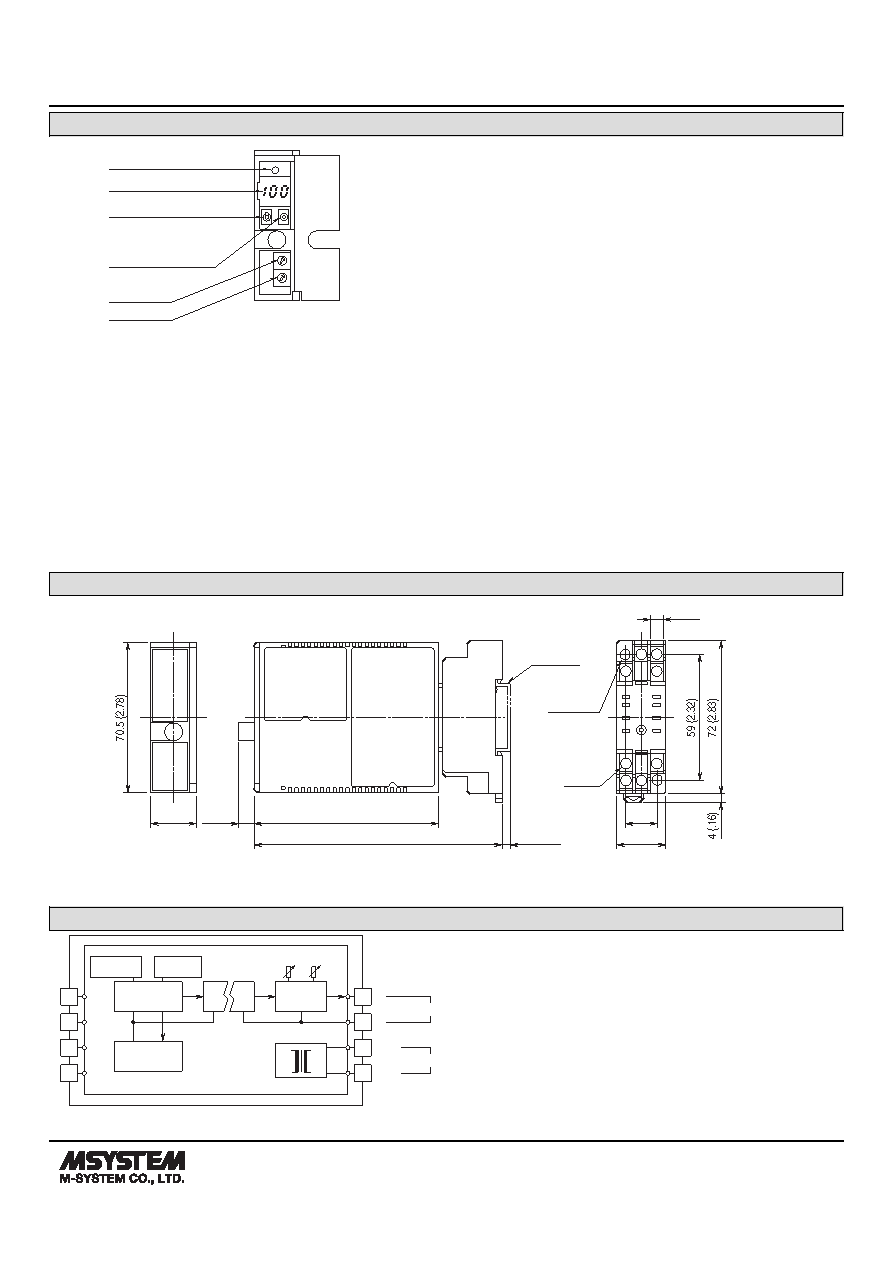

EXTERNAL VIEW

(C) Display Selector

The front cover cannot be turned open by 180 deg.

when there is no extra space between units.

(A) Polarity Indicator LED

(B) Setpoint Display

(E) Zero Adj.

(F) Span Adj.

(D) UP/DOWN Control

Top: ON

Bottom: OFF

• How to Set an Output

Turn the Display Selector (C) to the top position.

The Setpoint Display (B) shows the current setpoint (-10.0 –

+105 %). Press UP/DOWN Control (D) until the display

shows a desired set value.

The Polarity Indicator LED (A) is red when the set value is in

positive range, green when in negative range.

The output is factory set to 0 %.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm

5

9

21.5 (.85)

86.7 (3.41)

7.3 (.29)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

116.7 (4.59)

• When mounting, no extra space is needed between units.

1

4

8

12

14 13

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

Base Socket

S

Z

1

Output

Driver

OUTPUT

4

5

8

9

12

U(+)

V(–)

POWER

13

14

Digital

Computation

UP/DOWN

SW

DISPLAY

SELECTOR

Setpoint

Display

Isolation
