MODEL: KWTS

KWTS SPECIFICATIONS

ES-3532 Rev.9 Page 3/4

http://www.m-system.co.jp/

over 770°C or 1420°F for B)

Burnout response: ≤ 10 sec.

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @1 minute

(input to output to power to ground)

1000 V AC @ 1 minute (output 1 to output 2)

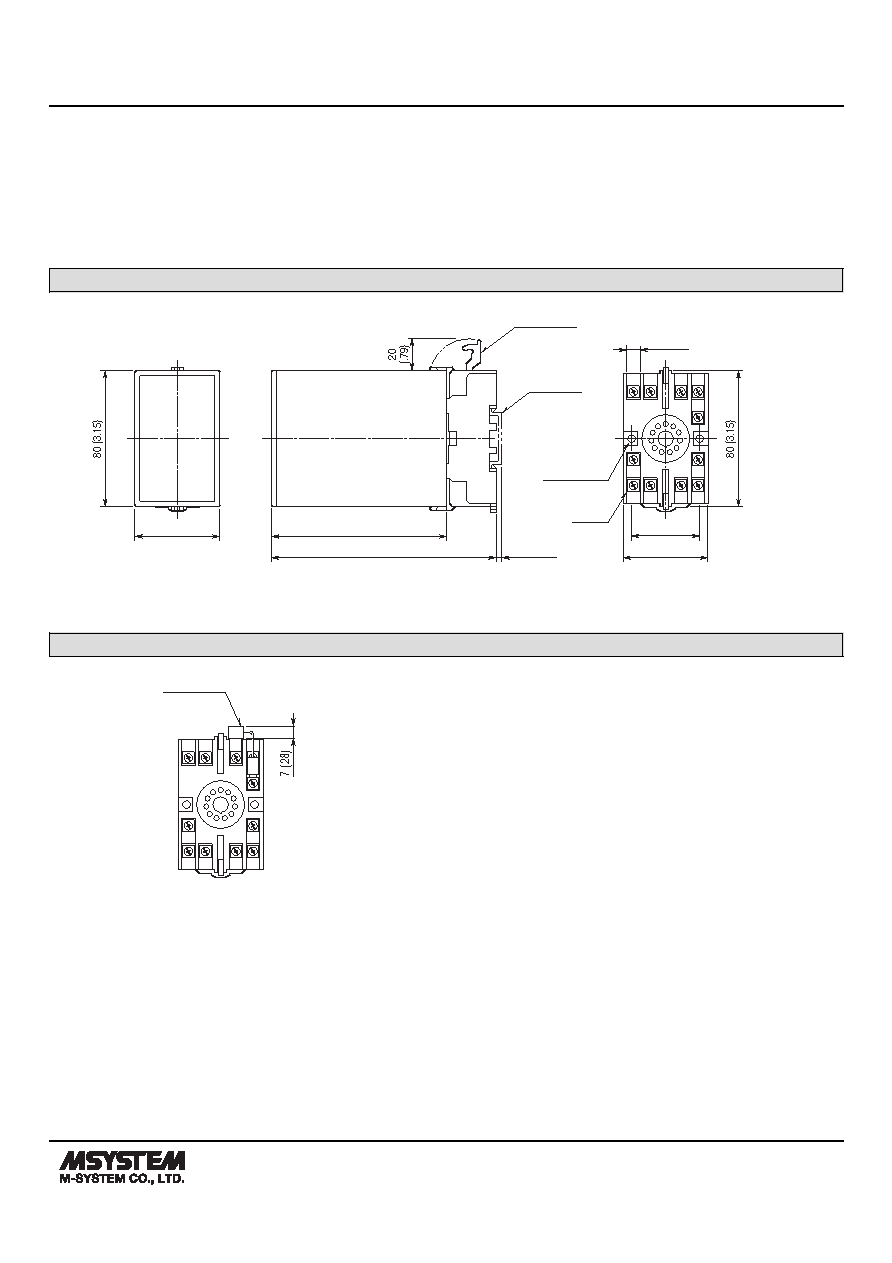

EXTERNAL DIMENSIONS unit: mm (inch)

50 (1.97)

103 (4.06)

132 (5.20)

• When mounting, no extra space is needed between units.

5

6

7

8

2

1

11

10

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

3

9

4

TERMINAL ASSIGNMENTS unit: mm (inch)

7

8

2

1

11

10

3

9

CJC SENSOR

(model: CJM)

5

4

6
