MODEL: M2XUM

M2XUM SPECIFICATIONS

ES-5009 Rev.19 Page 7/7

http://www.m-system.co.jp/

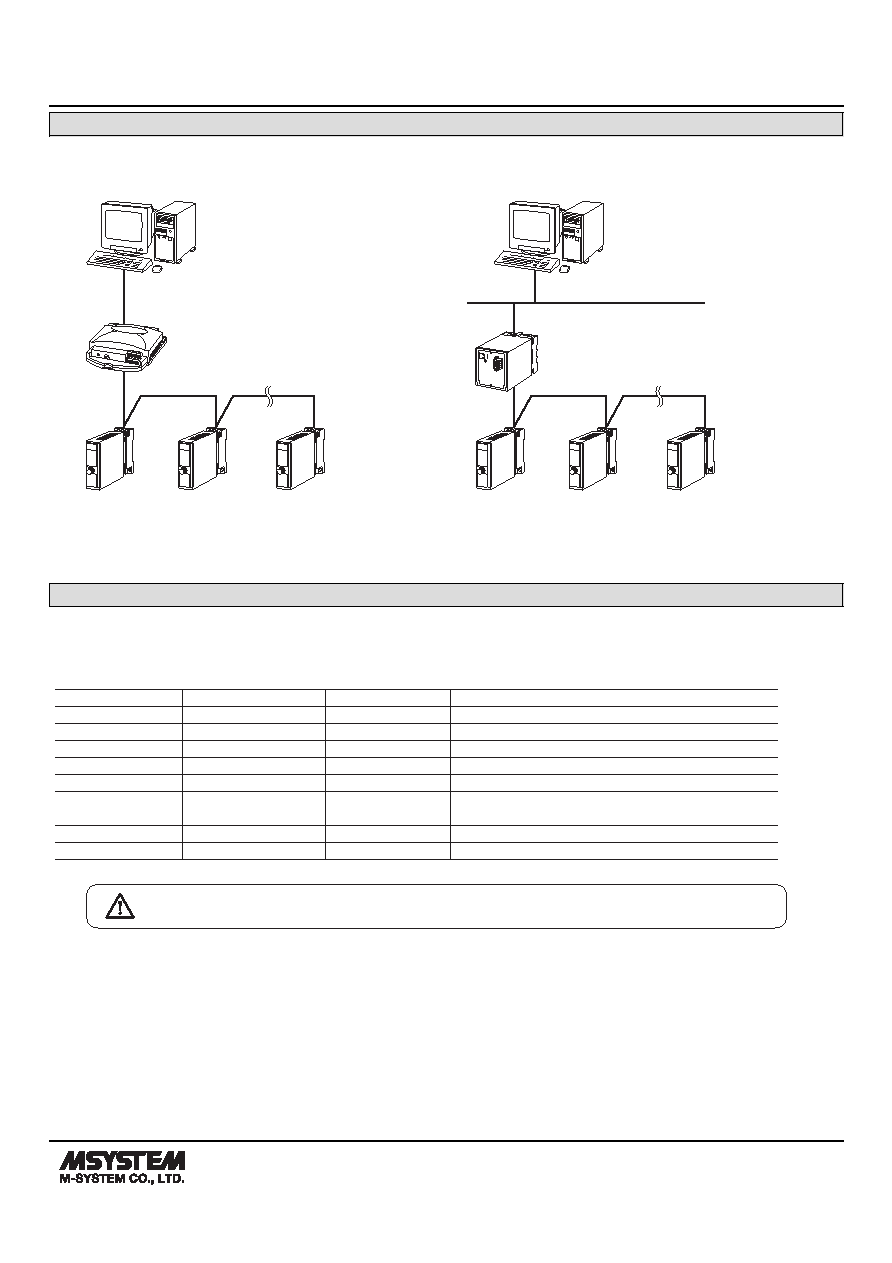

SYSTEM CONFIGURATION EXAMPLES

Universal Transmitters

(model: M2XUM)

Universal Transmitters

(model: M2XUM)

RS-485

Model

Model

Model

RS-232-C

6 7 8

Ethernet

■ RS-232-C／RS-485

■ Ethernet／RS-485

ETHERNET

RUN

SEND

FIELD

CNFG

RS-485

RS-485

Model

Model

Model

RS-232-C/RS-485 Converter

(Model: R2K-1 or LK1)

Ethernet Communication Adaptor

(model: 72EM2-M4)

MODBUS COMMUNICATION PARAMETERS

Refer to the instruction manual for the details about Modbus communication.

■ COMMUNICATION PARAMETERS

PARAMETER

Data Mode

Baud Rate

Parity

Bit Length

Stop Bit

Node Address

Floating Point Data

Physical Layer

MODIFICATION

Not modifiable

JXCON Software

JXCON Software

Not modifiable

Not modifiable

Hardware Rotary SW for 1 through 15,

JXCON Software for 16 through 247 (Rotary SW set to 0).

JXCON Software

Not modifiable

DEFAULT

SPECIFICATIONS

RTU

9600/19200/38400 bps

None/Odd/Even

8

1

1 to 247

Normal/Swapped

RS-485

RTU

38400 bps

Odd

8

1

1

Normal

RS-485

Specifications are subject to change without notice.
