MODEL: M3LU

M3LU SPECIFICATIONS

ES-2652 Rev.20 Page 4/6

http://www.m-system.co.jp/

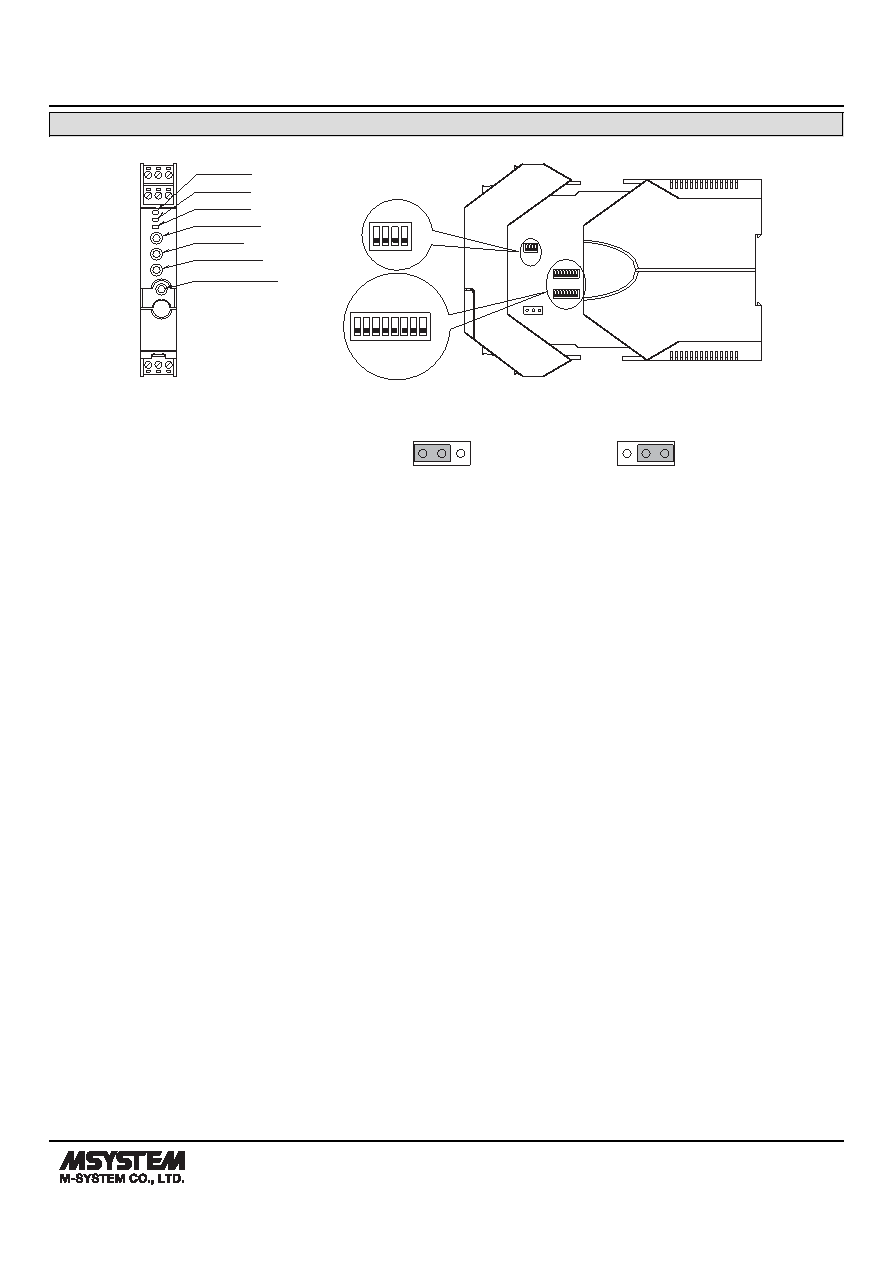

EXTERNAL VIEW

8 7 6 5 4 3 2 1

ON

OFF

ON

OFF

4 3 2 1

Configuration DIP SW

10 11 12

7

8

9

4

5

6

1

2

3

Configurator Jack

DOWN Button

UP Button

MODE Button

LED3 (LD3)

LED2 (LD2)

LED1 (LD1)

■ FRONT VIEW

■ SIDE VIEW

SW3

SW2

SW1

JP2

2

1

3

JP2

2

1

3

JP2

2

1

3

*

*For Voltage Input (V) range, switch the JP2 jumper to the 2 – 3 position.

Normal Position

(other than DC Voltage [V] range)

DC Voltage [V] Range Position

The DIP switch setting is required to select output types before setting a precise output range using the PC configurator

software.

For detailed information on the configuration and calibration, refer to the instruction manual.
