MODEL: MNV

MNV SPECIFICATIONS

ES-1691 Rev.9 Page 2/3

http://www.m-system.co.jp/

(ripple 10 % p-p max.) approx. 1 W (30 mA at 24 V)

Operating temperature: -5 to +60°C (23 to 140°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Surface or DIN rail

Weight: 350 g (0.77 lb)

PERFORMANCE

Response time: Approx. 1 msec.

Leakage current at open circuit: ≤ 1 μA

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute

(switching command relay to singal line to power to ground)

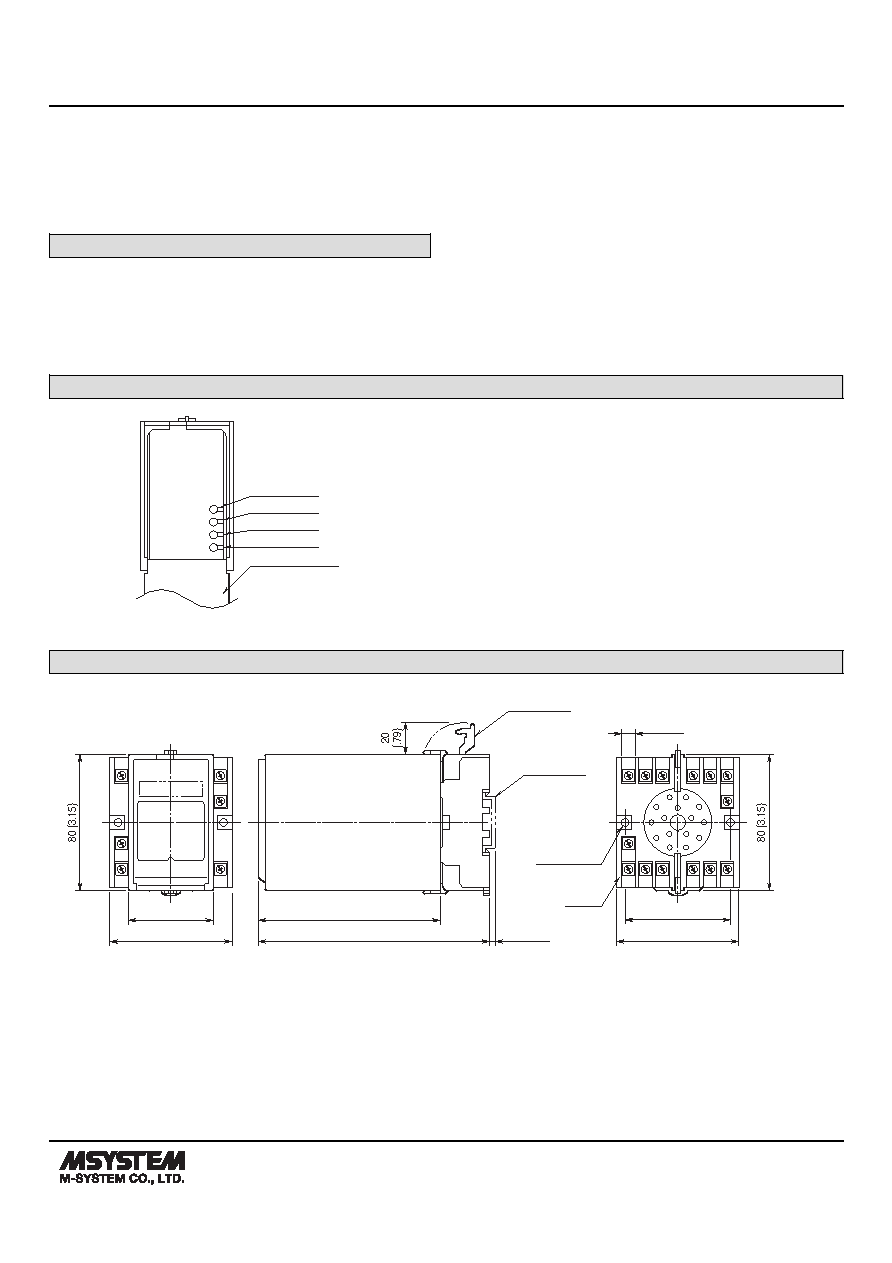

EXTERNAL VIEW

Front Cover (open)

Monitor LED 1

Monitor LED 2

Monitor LED 3

Monitor LED 4

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

50 (1.97)

72 (2.83)

107 (4.21)

136 (5.35)

[3.3 (.13)]

60 (2.36)

72 (2.83)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

25 (.98) deep

14–M3.5

SCREW

• When mounting, no extra space is needed between units.

12

5

6

14

11

1

10

15

4

3

2

7

9

8
