MODEL: M2BC

M2BC SPECIFICATIONS

ES-5010 Rev.6 Page 7/8

http://www.m-system.co.jp/

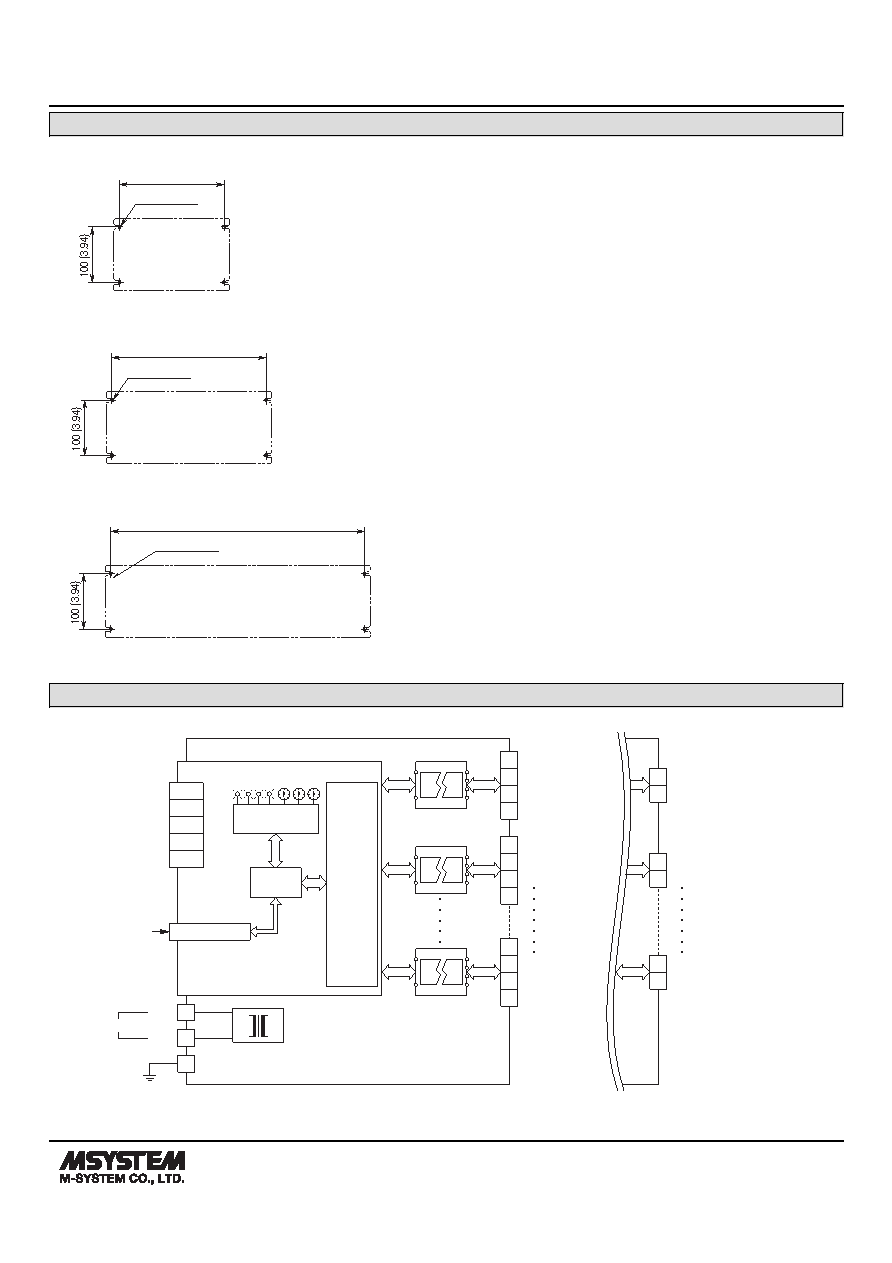

MOUNTING REQUIREMENTS unit: mm (inch)

■ M2BC-04

190 (7.48)

4–M5 SCREW

■ M2BC-08

280 (11.02)

4–M5 SCREW

■ M2BC-16

460 (18.11)

4–M5 SCREW

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Ch.1

INPUT

Ch.16*

INPUT

ISOLATION

Ch.2

INPUT

ISOLATION

A / D

D / A

Conv.

I / O

CPU

Communication

CPU

SERIAL

TRANSMISSION

LINE

MODULAR JACK

ROTARY

INDICATOR

LED

SLD

U(+)

V(–)

POWER

To Other

CC-Link

Devices

Ch.1

OUTPUT

Ch.16*

OUTPUT

Ch.2

OUTPUT

I/O MODULES

COMMUNICATION MODULE

■ INPUT BASE

■ OUTPUT BASE

* Up to Ch.4 for M2BC-04, Ch.8 for M2BC-08.

FG1

Modular Jack

for Factory

Calibration
