MODEL: M2AMS2

M2AMS2 SPECIFICATIONS

ES-5103 Rev.8 Page 3/4

http://www.m-system.co.jp/

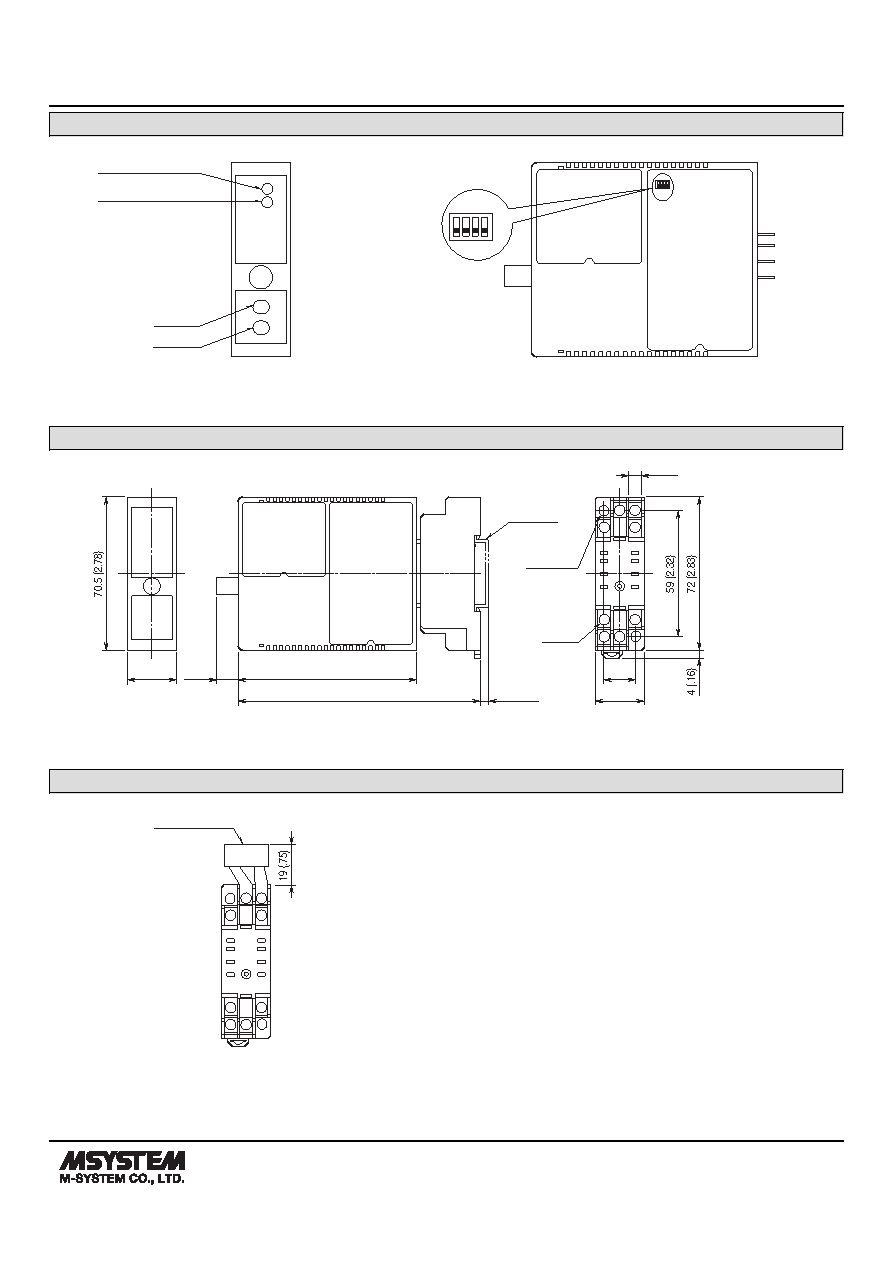

EXTERNAL VIEW

■ FRONT VIEW

■ SIDE VIEW

OFF

ON

1 2 3 4

SW1

Output Function

Setting

Zero Adj.

Span Adj.

Status Indicator LED1

Status Indicator LED2

Refer to the instruction manual for detailed procedures.

EXTERNAL DIMENSIONS unit: mm (inch)

5

9

21.5 (.85)

84 (3.31)

10 (.39)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

114 (4.49)

• When mounting, no extra space is needed between units.

4

8

12

14 13

1

TERMINAL ASSIGNMENTS unit: mm (inch)

5

8

9

12

14 13

INPUT RESISTOR

(model: REM2)

Input shunt resistor attached

for current input.

1

4
