部件名	18KPR-22-R

功能描述	Rack-mounted DCS Signal Conditioners 18K-RACK

PDF	4 Pages

Scroll/Zoom	100%

制造商	MSYSTEM [M-System Co.,Ltd.]

网页	https://www.m-system.co.jp/

标志

18KPR-22-R 数据表(HTML) 3 Page - M-System Co.,Ltd.

18KPR-22-R Datasheet HTML 1Page - M-System Co.,Ltd.

18KPR-22-R Datasheet HTML 2Page - M-System Co.,Ltd.

18KPR-22-R Datasheet HTML 3Page - M-System Co.,Ltd.

18KPR-22-R Datasheet HTML 4Page - M-System Co.,Ltd.

zoom in

zoom out

3 / 4 page

MODEL: 18KPR

18KPR SPECIFICATIONS

ES-0460 Rev.1 Page 3/4

http://www.m-system.co.jp/

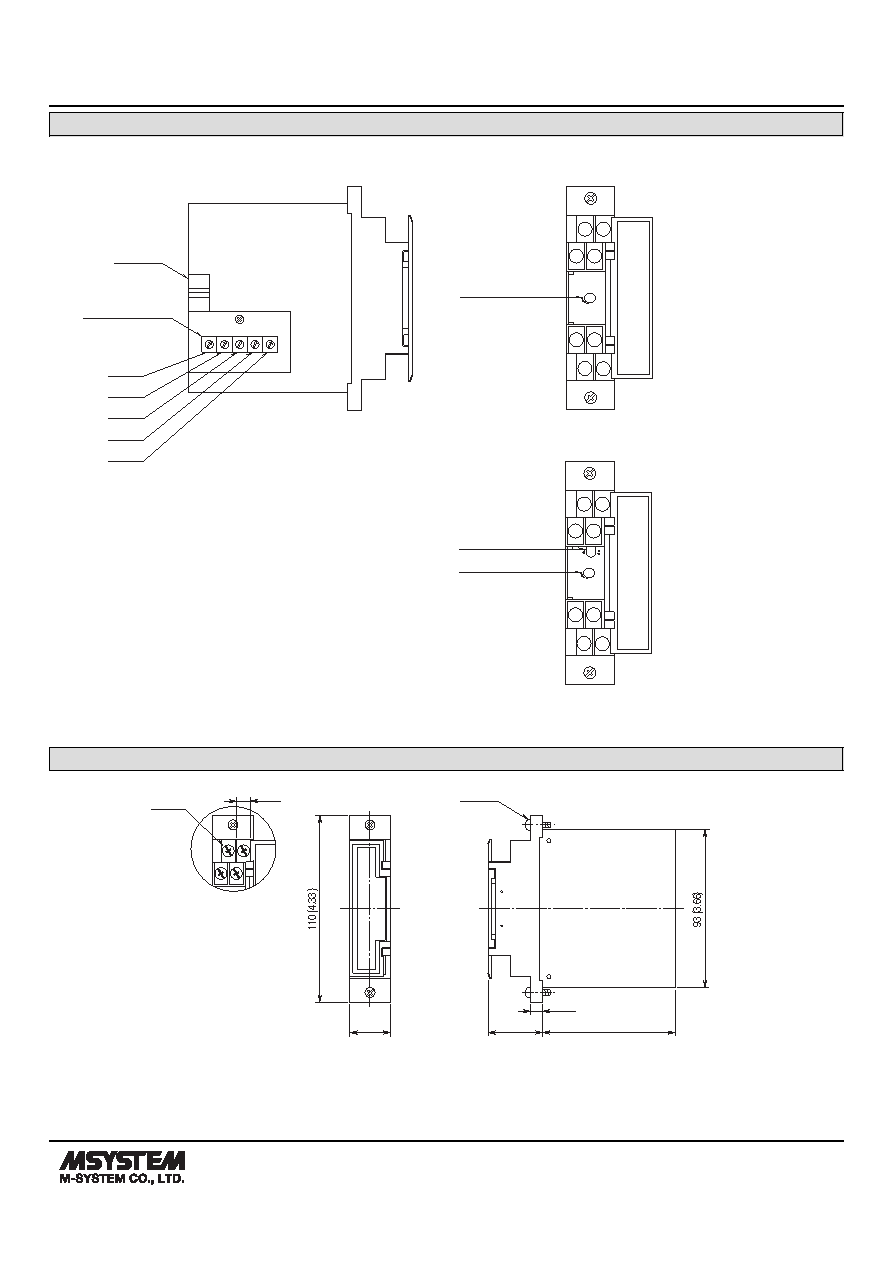

EXTERNAL VIEW

Sensitivity Adj.

7 8

5 6

3 4

Power Switch

Sensitivity Adj.

7 8

5 6

3 4

■ SIDE VIEW

• With Power Switch

• Without Power Switch

■ FRONT VIEW

Connector

Scaling Factor Adj.

Rotary Switches

(A) 10-1

(B) 10-2

(D) 10-4

(E) 10-n

Refer to the instruction manual for detailed procedures.

EXTERNAL DIMENSIONS unit: mm (inch)

24 (.94)

7 (.28)

78 (3.07)

32 (1.26)

8–M3.5

SCREW

7 (.28)

2–M3

SCREW
