MODEL: 61F

61F SPECIFICATIONS

ES-6635 Rev.2 Page 3/3

http://www.m-system.co.jp/

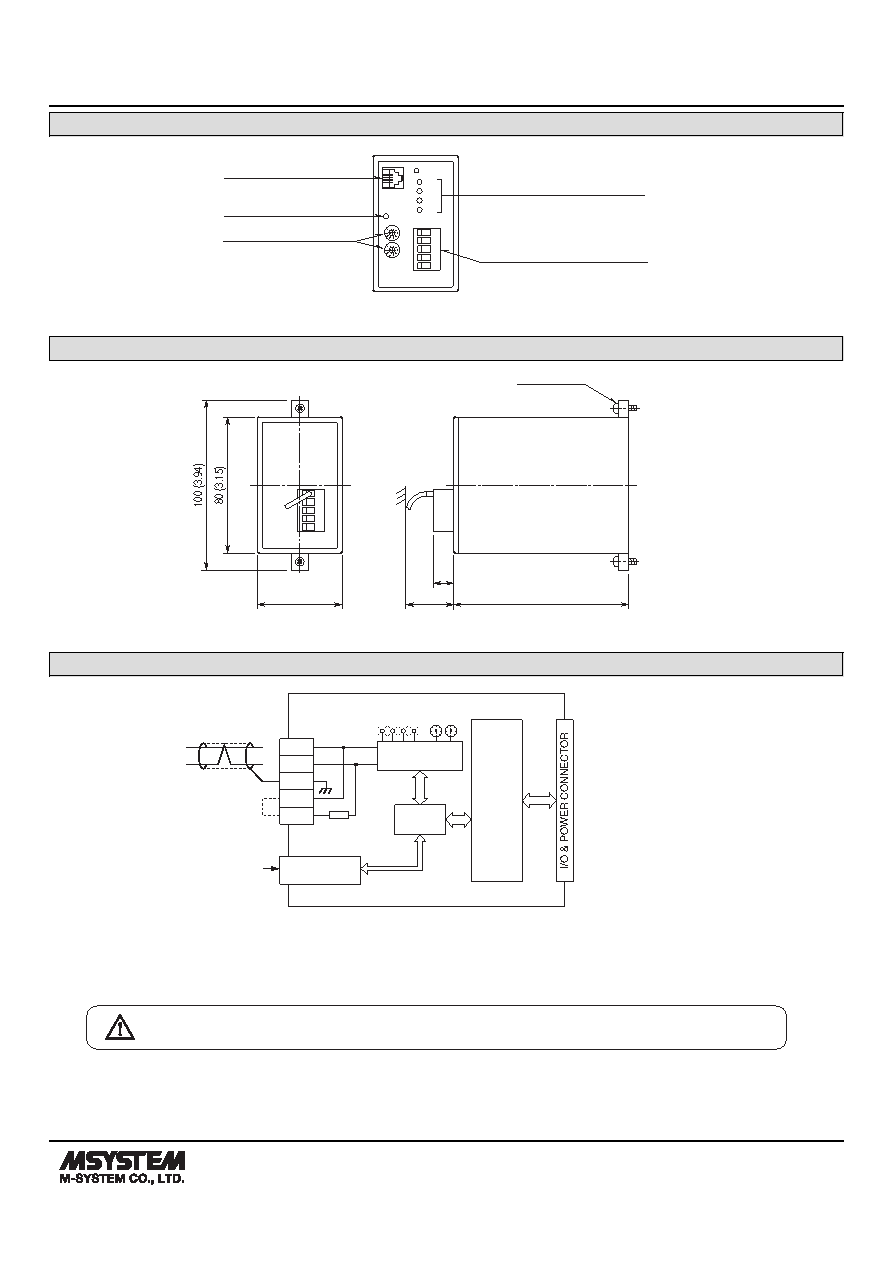

EXTERNAL VIEW

L RUN

PU-2

STATION NO.

L ERR.

L I/O

L COM

PWR

3

2

3

2

X1

X10

Euro Type Connector Terminal

for T-Link

Status Indicator LED

Power Indicator LED

Station No. Setting

Modular Jack

for Factory Calibration

EXTERNAL DIMENSIONS unit: mm (inch)

50 (1.97)

103 (4.06)

38 min.

(1.50)

12

(.47)

2–M3 SCREWS

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

−

SHIELDED

TWISTED-PAIR

To other T-Link devices

A/D

or

D/A

Converter

I/O Side

CPU

SERIAL

TRANSMISSION

LINE

Modular Jack

for Factory

Calibration

MODULAR

JACK

To Installation Base

CPU For T-LINK

Transmission

Station No. Setting

Rotary Switches

Indicator

LED

T1

T2

SD

RT+

RT−

TERMINATING

RESISTOR

* When the unit is located at the end of transmission line via twisted-pair cable (= no cross-wiring),

short across terminals RT+, RT- with the jumper pin (or wire) provided with the unit.

Remove the jumper pin for the one not located at the end.

Note: Use T1, T2, SD terminals for cross-wiring.

Specifications are subject to change without notice.
