• I/O Module

Confirm that the locking clamps of the I/O module are set.

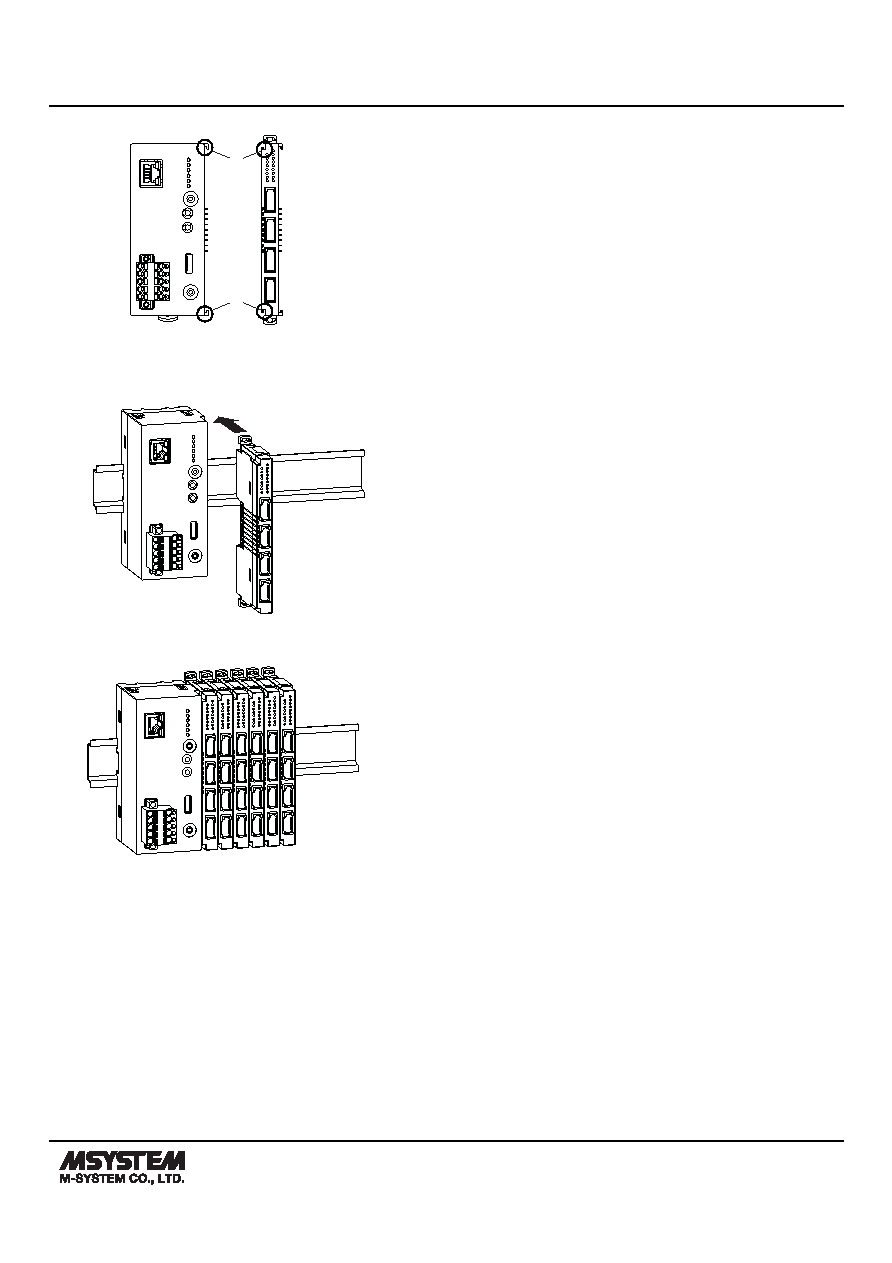

Insert the module in parallel to the next one while aligning the grooves of

both modules (A & B in the above figure).

Maintain it perpendicularly to the rail.

More I/O modules can be added in the same manner.
