MODEL: M1EXM-2

M1EXM-2 SPECIFICATIONS

ES-5983 Rev.2 Page 6/7

https://www.m-system.co.jp/

MODE

ITEM

SETTING PARAMETER

RANGE

UNIT

INITIAL VALUE

Advanced

201

Display setting

Upper: choose from 8 types*

Lower: choose from 9 types*

–

Upper: Ch1 PERCENT

Lower: Ch2 PERCENT

202

Channel enable

Choose from 3 types*

–

Ch1 enable

Ch2 enable

203

Brightness

1 (darkest) – 4 (brightest)

–

4

204

Display timeout

0 (always on), 1 – 60

min.

10

205

Reset all settings

OFF / RESET

–

OFF

206

Version indication

–

–

–

01

Lockout setting

Lock / Unlock

–

Lock

Ch1

Linearization

210

Ch1 User's table linearization

Disable / Enable

–

Disable

276

Ch1 Number of points

2 – 111

–

2

277 – 498

Ch1 Table

-5.00 – 105.00

%

X001 -5.00

Y001 -5.00

X002 105.00

Y002 105.00

01

Lockout setting

Lock / Unlock

–

Lock

Ch2

Linearization

510

Ch2 User's table linearization

Disable / Enable

–

Disable

576

Ch2 Number of points

2 – 111

–

2

577 – 798

Ch2 Table

-5.00 – 105.00

%

X001 -5.00

Y001 -5.00

X002 105.00

Y002 105.00

01

Lockout setting

Lock / Unlock

–

Lock

* For detailed types, refer to the operating manual (EM-5983-B).

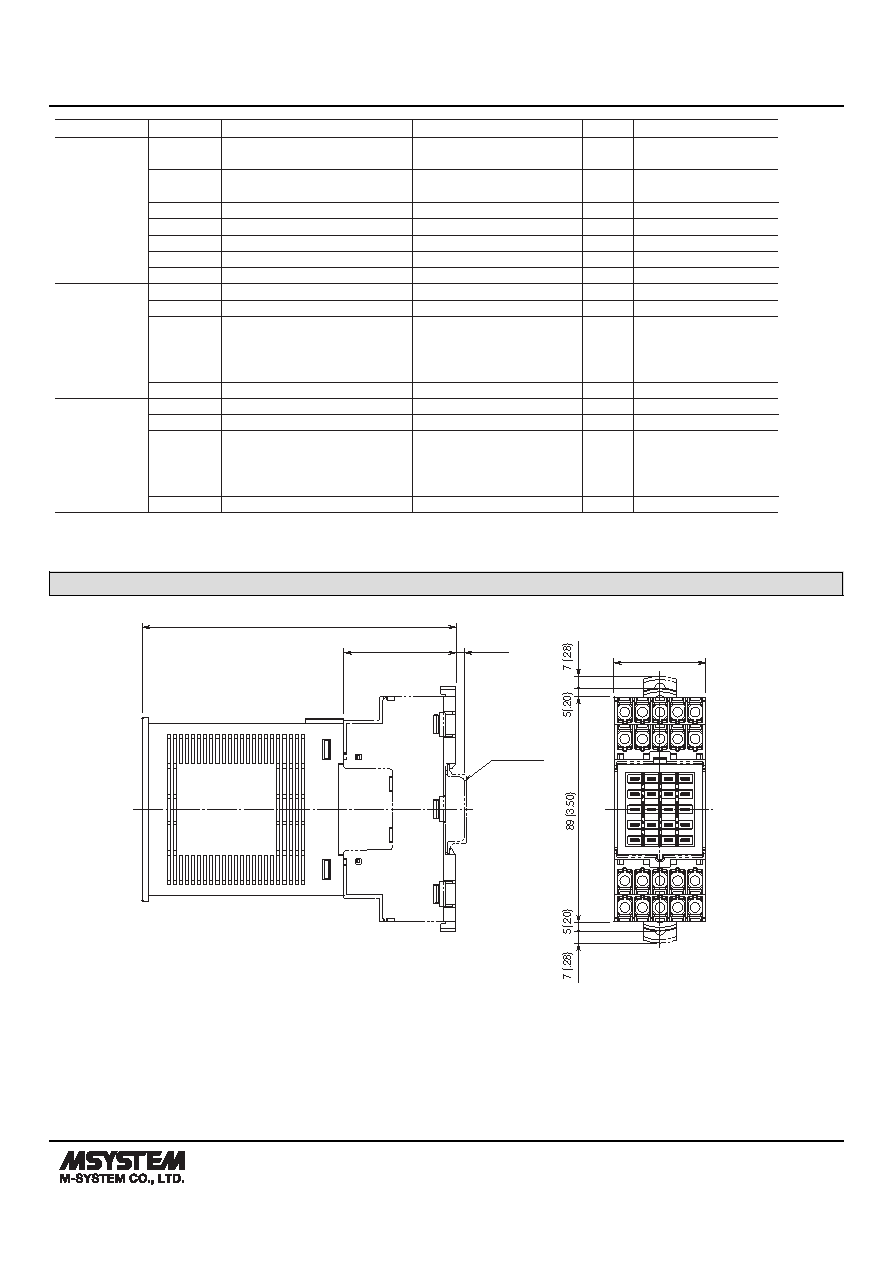

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

125 (4.92)

36 (1.42)

45 (1.77)

[4 (.16)]

DIN RAIL

35mm wide

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

* Base does not come with the unit.

Please order separately.
