部件名	ALCT-532-R

功能描述	Limit Alarms (rotary switch adj.) AL-UNIT

PDF	4 Pages

Scroll/Zoom	100%

制造商	MSYSTEM [M-System Co.,Ltd.]

网页	https://www.m-system.co.jp/

标志

ALCT-532-R 数据表(HTML) 3 Page - M-System Co.,Ltd.

ALCT-532-R Datasheet HTML 1Page - M-System Co.,Ltd.

ALCT-532-R Datasheet HTML 2Page - M-System Co.,Ltd.

ALCT-532-R Datasheet HTML 3Page - M-System Co.,Ltd.

ALCT-532-R Datasheet HTML 4Page - M-System Co.,Ltd.

zoom in

zoom out

3 / 4 page

MODEL: ALCT

ALCT SPECIFICATIONS

ES-2737 Rev.9 Page 3/4

http://www.m-system.co.jp/

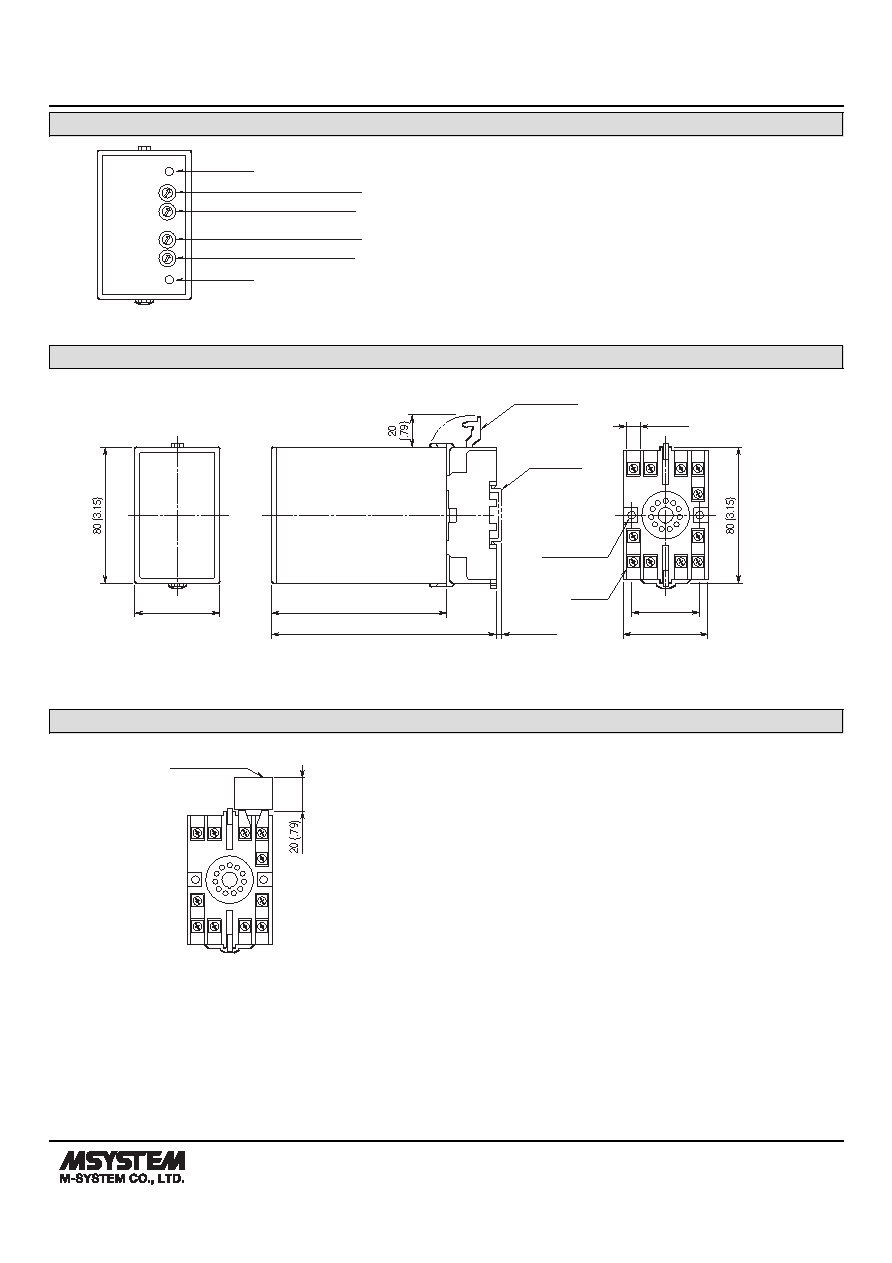

EXTERNAL VIEW

No.1 Setpoint Rotary SW (x10%)

No.1 Setpoint Rotary SW (x1%)

No.2 Setpoint Rotary SW (x10%)

No.2 Setpoint Rotary SW (x1%)

No.1 LED

No.2 LED

EXTERNAL DIMENSIONS unit: mm (inch)

50 (1.97)

103 (4.06)

132 (5.20)

• When mounting, no extra space is needed between units.

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

25 (.98) deep

11–M3.5

SCREW

TERMINAL ASSIGNMENTS unit: mm (inch)

CT PROTECTOR

(model: CTM)
