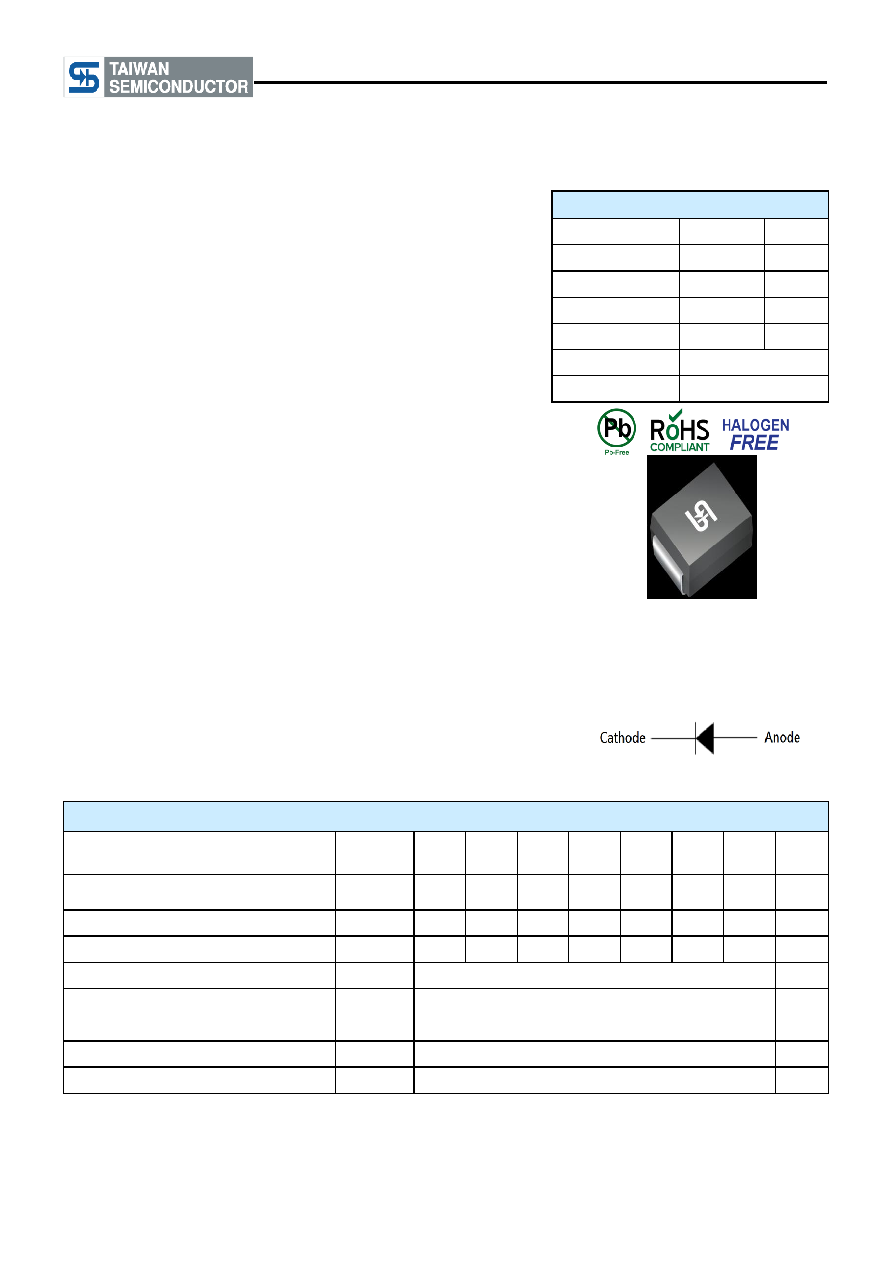

1 / 6 page

S3ABH

– S3MBH

Taiwan Semiconductor

1

Version: A2102

3A, 50V - 1000V Surface Mount Rectifier

FEATURES

● AEC-Q101 qualified

● Glass passivated chip junction

● Ideal for automated placement

● Low forward voltage drop

● High surge current capability

● Moisture sensitivity level: level 1, per J-STD-020

● RoHS Compliant

● Halogen-free according to IEC 61249-2-21

APPLICATIONS

● DC to DC converter

● Automotive application

● Car lighting

● Snubber

● Freewheeling application

MECHANICAL DATA

● Case: DO-214AA (SMB)

● Molding compound meets UL 94V-0 flammability rating

● Terminal: Matte tin plated leads, solderable per J-STD-002

● Meet JESD 201 class 2 whisker test

● Polarity: Indicated by cathode band

● Weight: 0.090g (approximately)

KEY PARAMETERS

PARAMETER

VALUE

UNIT

IF

3

A

VRRM

50 - 1000

V

IFSM

80

A

TJ MAX

150

°C

Package

DO-214AA (SMB)

Configuration

Single die

DO-214AA (SMB)

ABSOLUTE MAXIMUM RATINGS (T

A = 25°C unless otherwise noted)

PARAMETER

SYMBOL

S3

ABH

S3

BBH

S3

DBH

S3

GBH

S3

JBH

S3

KBH

S3

MBH

UNIT

Marking code on the device

S3

AB

S3

BB

S3

DB

S3

GB

S3

JB

S3

KB

S3

MB

Repetitive peak reverse voltage

VRRM

50

100

200

400

600

800

1000

V

Reverse voltage, total rms value

VR(RMS)

35

70

140

280

420

560

700

V

Forward current

IF

3

A

Surge peak forward current, 8.3ms

single half sine-wave superimposed

on rated load

IFSM

80

A

Junction temperature

TJ

- 55 to +150

°C

Storage temperature

TSTG

- 55 to +150

°C
