MODEL: R3-SS8

R3-SS8 SPECIFICATIONS

ES-8394 Rev.12 Page 2/4

https://www.m-system.co.jp/

PERFORMANCE

Conversion accuracy: Refer to the table at the end of this

section.

Conversion rate: 160 / 80 / 40 / 20 msec. selectable

Data range: 0 – 10000 of the input range

Data allocation: 8

Current consumption: 100 mA

Temp. coefficient: ±0.03 %/°C (±0.02 %/°F)

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1000 V AC @ 1 minute (input 1 to input

2 to input 3 to input 4 to input 5 to input 6 to input 7 to

input 8 to internal bus or internal power)

2000 V AC @ 1 minute (power input to FG; isolated on the

power supply module)

0 – 20 mA

-20 – +20 mA

RANGE

RATE

160 msec.

80 msec.

40 msec.

20 msec.

±0.05%

±0.1%

±0.2%

±0.4%

±0.1%

±0.2%

±0.4%

±0.8%

4 – 20 mA

±0.1%

±0.2%

±0.4%

±0.8%

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

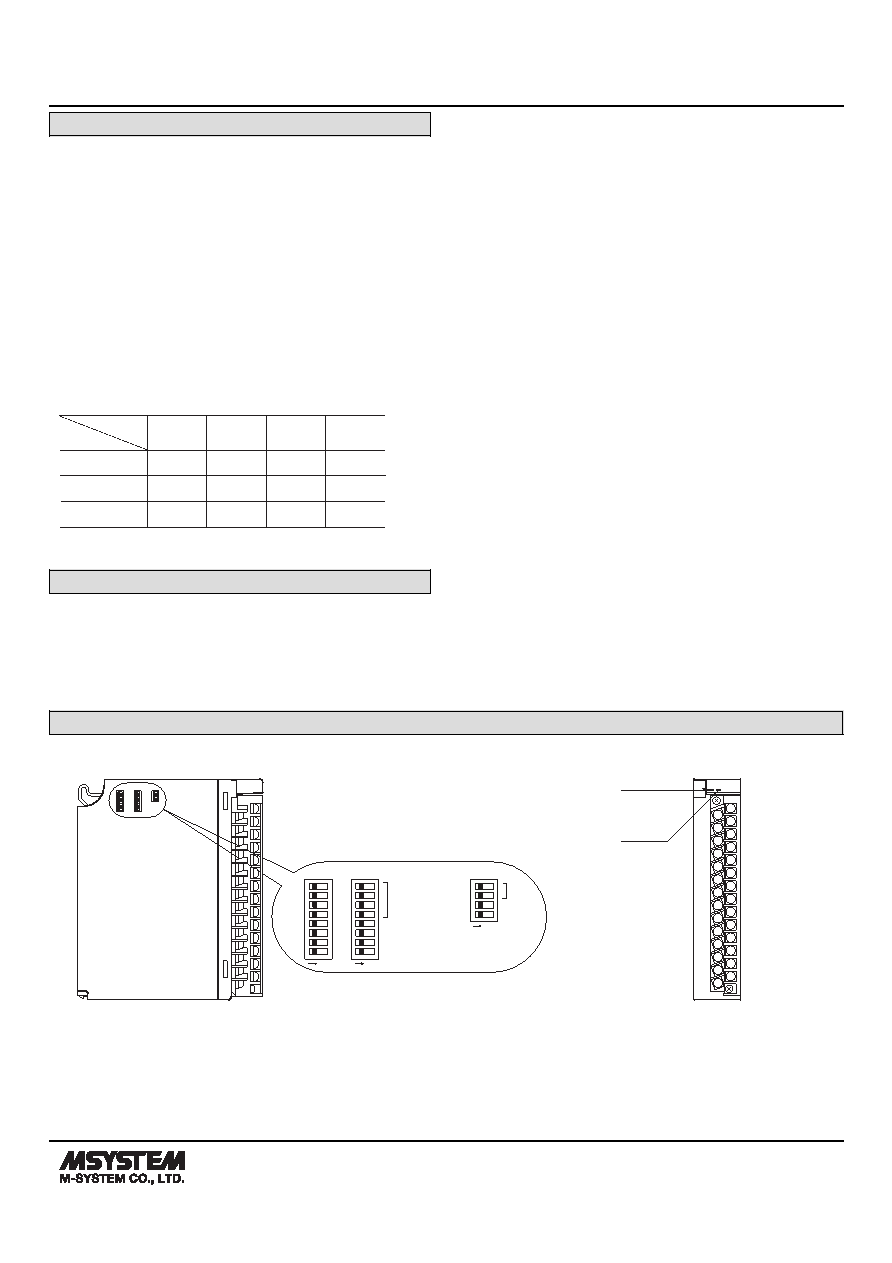

EXTERNAL VIEW

SW2

SW1

ON

1

2

3

4

5

6

7

8

ON

ON

1

2

3

4

5

6

7

8

SW3

1

2

3

4

5

19

20

21

22

15

16

17

18

23

24

25

26

27

28

6

7

8

9

10

11

12

13

14

1

2

3

4

■ FRONT VIEW

ERR LED

RUN LED

■ SIDE VIEW

Range

Input 1-4 (SW1)

or

Input 5-8 (SW2)

Conv.

Rate

Functions
