Data Sheet

ADA4570

OUTLINE DIMENSIONS

analog.com

Rev. 0 | 13 of 14

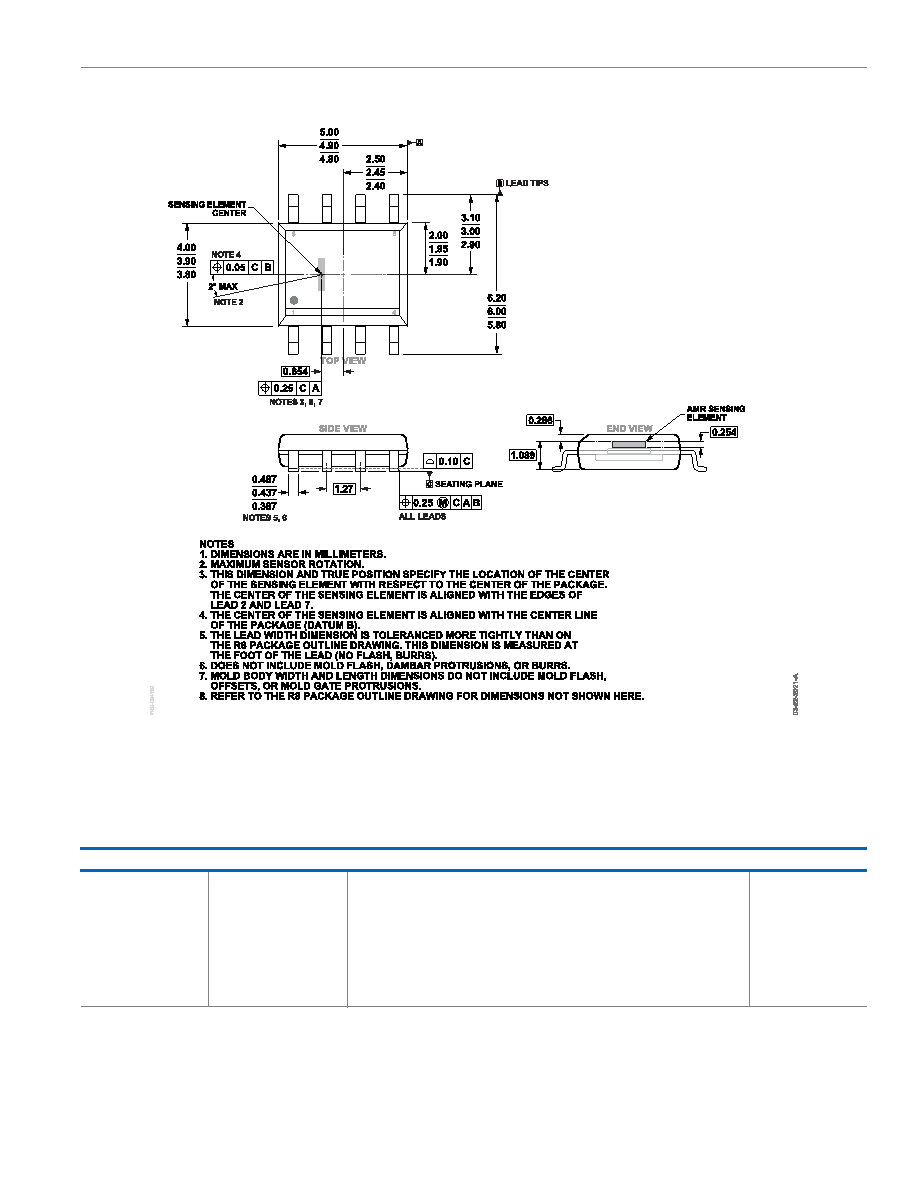

Figure 22. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body

(R-8)

Dimensions Shown in Millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADA4570BRZ

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

ADA4570BRZ-R7

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

ADA4570BRZ-RL

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

ADA4570WHRZ

−40°C to +150°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

ADA4570WHRZ-R7

−40°C to +150°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

ADA4570WHRZ-RL

−40°C to +150°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

EVAL-ADA4570SDZ

ADA4570 Evaluation Board
