MODEL: R8-PS1

http://www.m-system.co.jp/

R8-PS1 SPECIFICATIONS

ES-9789 Rev.4 Page 3/3

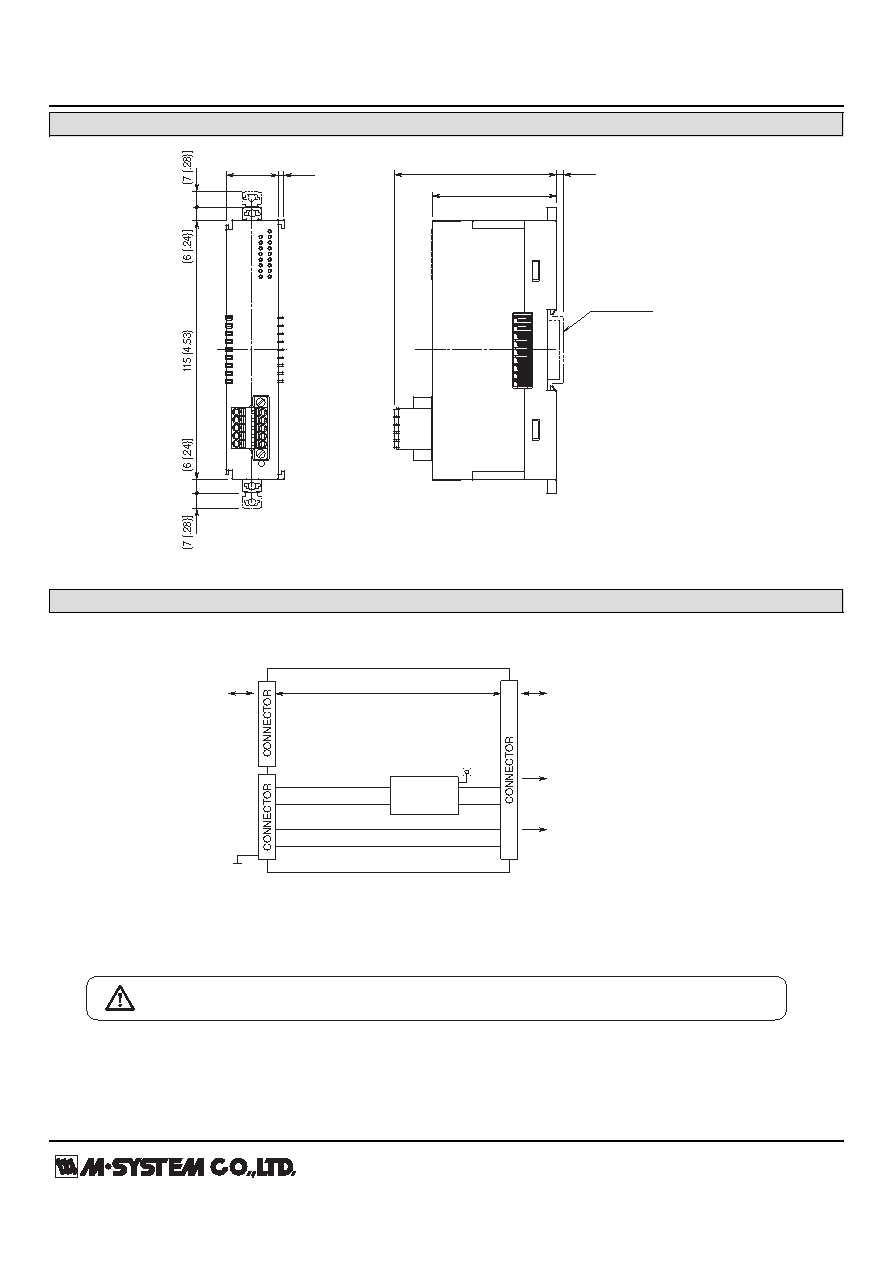

DIMENSIONS unit: mm (inch)

[3 (.12)]

[4 (.16)]

[72 (2.83)]

55 (2.17)

24 (.95)

DIN RAIL

(35 mm wide)

SCHEMATIC CIRCUITRY

Note: In order to improve EMC performance, bond the FE1 terminal to ground.

Caution: FE1 terminal is NOT a protective conductor terminal.

EXC. SUPPLY (24V)

INTERNAL POWER (5V)

INTERNAL BUS

INTERNAL BUS

+24V

0V

＋

−

FE1

Internal bus is connected for the modules near to the power/network module out of the modules connected to the R8-PS1. Internal

power and Exc. supply are not connected. All modules far from the power/network module are connected.

POWER LED

Power

Circuit

(No isolation)

Specifications are subject to change without notice.
