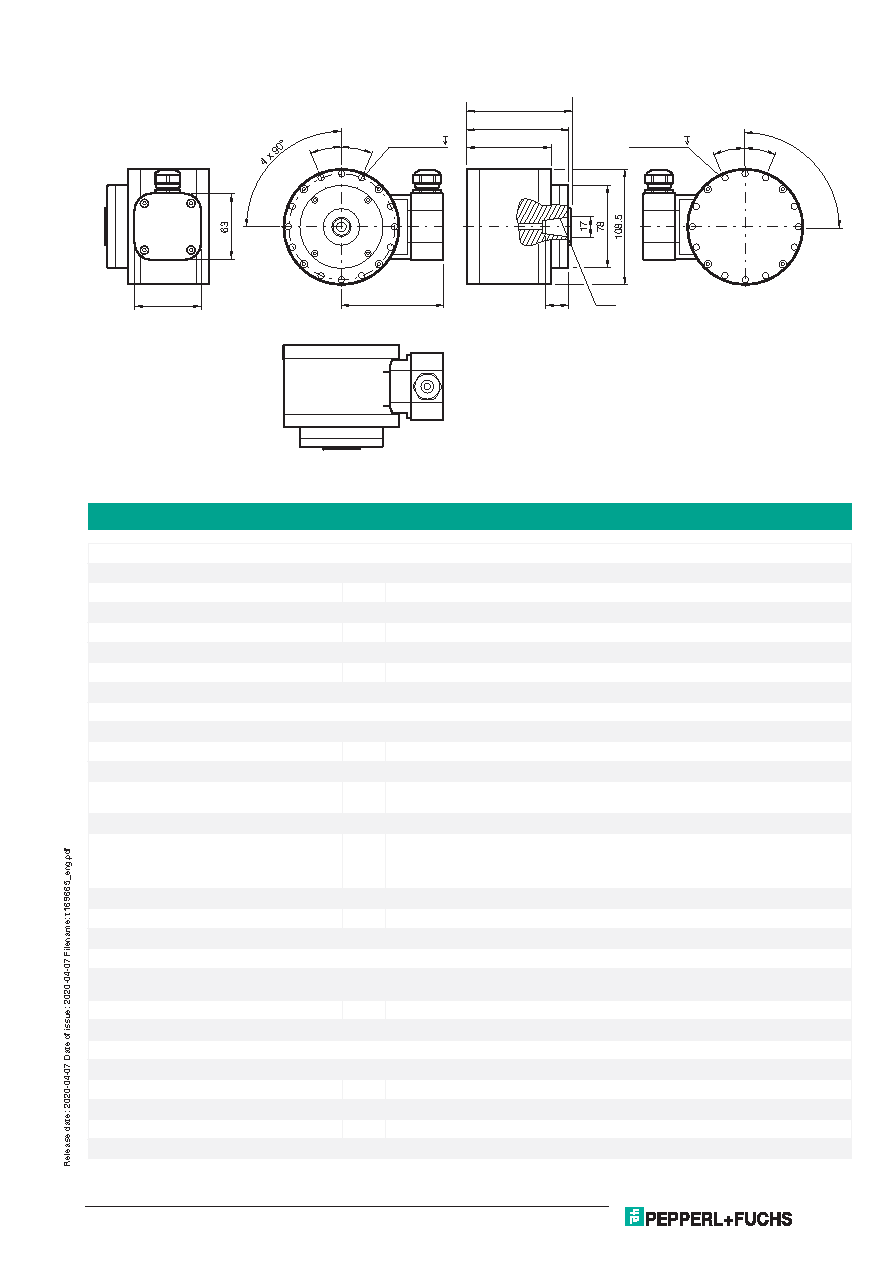

22.5

°

22.5°

22.5°

22.5°

4

x

90

°

63

95.5

96

80.5

20

1:10

97

12 x M6, 16

12 x M6, 12

Cone shaft

Technical Data

General specifications

Detection type

photoelectric sampling

Pulse count

max. 2500

Functional safety related parameters

140 a

20 a

50 E+9 at 1750 rpm

Diagnostic Coverage (DC)

0 %

Electrical specifications

Operating voltage

10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information)

No-load supply current

max. 70 mA

Output

Output type

push-pull, incremental or RS 422, incremental

(see "Output circuit" in the ordering information)

Voltage drop

< 2.5 V (push-pull, incremental)

Load current

max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull,

incremental)

max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422,

incremental)

Output frequency

max. 200 kHz

Rise time

600 ns

De-energized delay

600 ns

Connection

Connector

M23 connector, 12-pin , clockwise rotation

M23 connector, 12-pin , counter clockwise rotation

Cable

Terminal compartment

Cable duct for cable diameter ∅4 mm ... 13 mm

Standard conformity

Degree of protection

DIN EN 60529, IP66, IP67 or IP69K

Climatic testing

DIN EN 60068-2-78 , no moisture condensation

Emitted interference

EN 61000-6-4:2007/A1:2011

Noise immunity

EN 61000-6-2:2005

Shock resistance

DIN EN 60068-2-27, 200 g, 6 ms

Heavy-duty incremental encoder

ENI11HD-R
