MODEL: WL40EW2F

WL40EW2F SPECIFICATIONS

ES-9080 Rev.0 Page 1/7

http://www.m-system.co.jp/

Wireless I/O WL40F Series

WIRELESS GATEWAY

Modbus/TCP (Ethernet), Modbus-RTU Transparent 900MHz

Band Wireless Device (parent device)

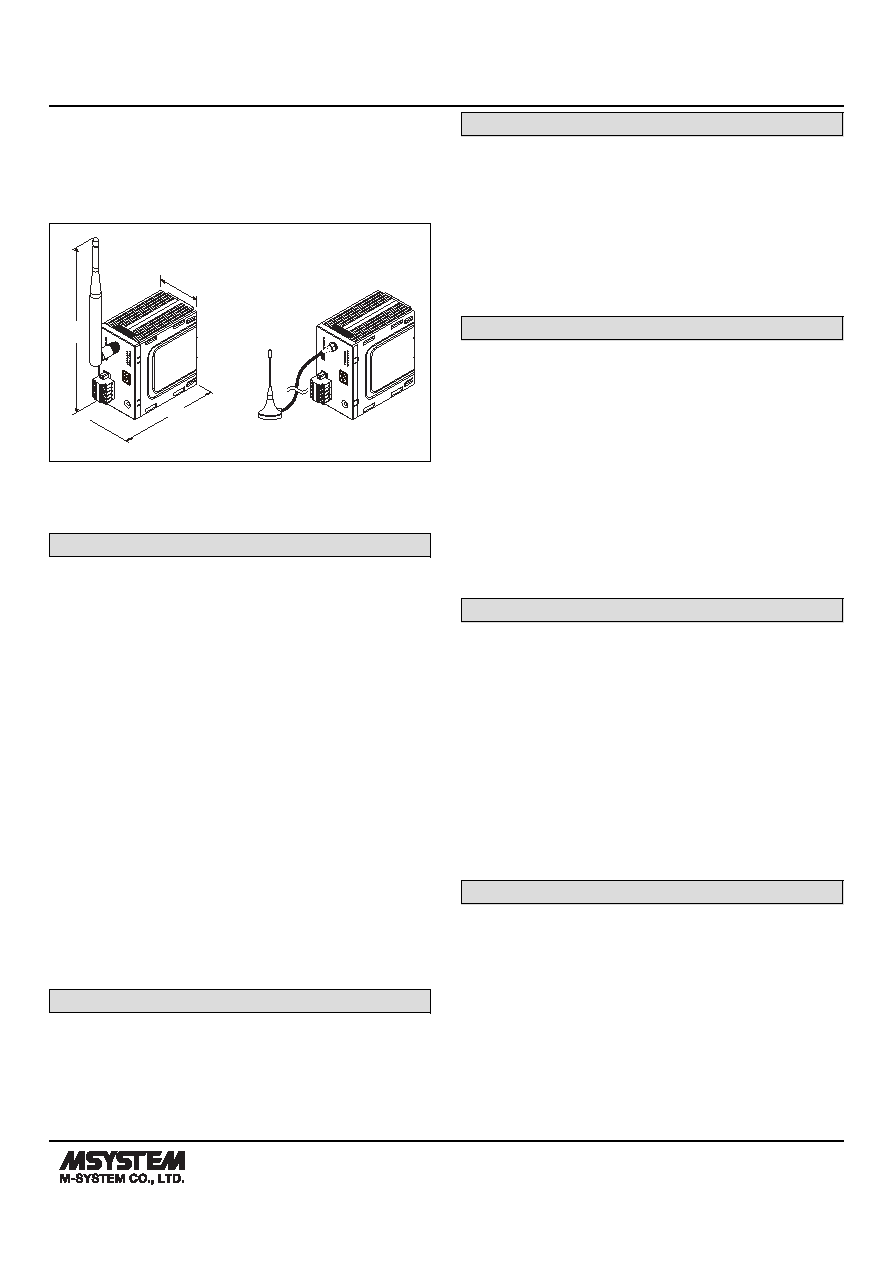

60 (2.36)

[260

(10.24)]

155 (6.10)

mm (inch)

MODEL: WL40EW2F-[1][2]

ORDERING INFORMATION

• Code number: WL40EW2F-[1][2]

Specify a code from below for each [1] and [2].

(e.g. WL40EW2F-R/E/Q)

• Specify the specification for option code /Q

(e.g. /C01)

[1] POWER INPUT

DC Power

S: 12 V DC

(Operational voltage range 12 V ±10 %, ripple 10 %p-p max.)

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[2] OPTIONS (multiple selections)

Antenna

/S: Sleeve antenna

/E: Rooftop antenna

Other Options

blank: none

/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

FUNCTIONS & FEATURES

This unit

• Incorporates 900MHz band wireless module with RS-485

transparent type, which can communicate using Modbus-

RTU protocol.

• Converts Modbus-RTU (RS-485) and Modbus/TCP

(Ethernet) protocol.

• Incorporates the module compliant with FCC Part 15, and

can be used only in the United States.

RELATED PRODUCTS

For related products of wireless device, refer to M-System's

web site.

Maintenance software

Maintenance console: MH920 Console International (model:

MH920CI) (OKI)

(Maintenance software is downloadable at M-System’s web

site.)

Coaxial cable

• 7.5 m extension cable for rooftop antenna (model: CX-

SAC0SAD0Q0750) (OKI)

Using 7.5 m coaxial cable for extension decreases

transmission distance.

GENERAL SPECIFICATIONS

Connection

Wireless network: SMA coaxial connector

Power supply: Tension clamp (Front Twinconnection)

Ethernet: RJ-45 Modular Jack

Maintenance: Mini USB type B female connector

Housing material: Flame-resistant resin

Isolation: Power supply to Ethernet to FE1 to antenna

connector

Switch: IP Reset

Refer to the instruction manual for details.

Indicator LED: Power

COMMUNICATION

■ Common spec.

Modbus protocol

Protocol: Modbus/TCP

Data: RTU (Binary)

Port No.: 502

Max. number of socket connections: 8

IP address: 192.168.0.1 (factory setting);

Selectable with web browser

■ Ethernet

Communication Standard: IEEE 802.3u

Transmission: 10BASE-T, 100BASE-TX

Baud rate: 10/100 Mbps (Auto Negotiation function)
