PLL602-35/-37/-38/-39

750kHz – 800MHz Low Phase Noise Multiplier XO

Universal Low Phase Noise IC’s

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 11/28/05 Page 1

FEATURES

• Selectable 750kHz to 800MHz range.

• Low phase noise output (@ 10kHz frequency

offset, -140dBc/Hz for 19.44MHz, -127dBc/Hz for

106.25MHz, -125dBc/Hz for 155.52MHz, -

110dBc/Hz for 622.08MHz).

• CMOS (PLL602-37), PECL (PLL602-35 and

PLL602-38) or LVDS (PLL602-39) output.

• 12 to 25MHz crystal input.

• No external load capacitor required.

• Output Enable selector.

• Selectable 1/16 to 32x frequency multiplier.

• 3.3V operation.

• Available in 16-Pin (TSSOP or 3x3mm QFN).

DESCRIPTION

The PLL602-35 (PECL with inverted OE), PLL602-37

(CMOS), PLL602-38 (PECL), and PLL602-39 (LVDS)

are high performance and low phase noise XO IC

chips. They provide phase noise performance as low

as –125dBc at 1kHz offset (at 155MHz) and a typical

RMS jitter of 4pS RMS ( at 155MHz ). They accept

fundamental parallel resonant mode crystals from 12

to 25MHz.

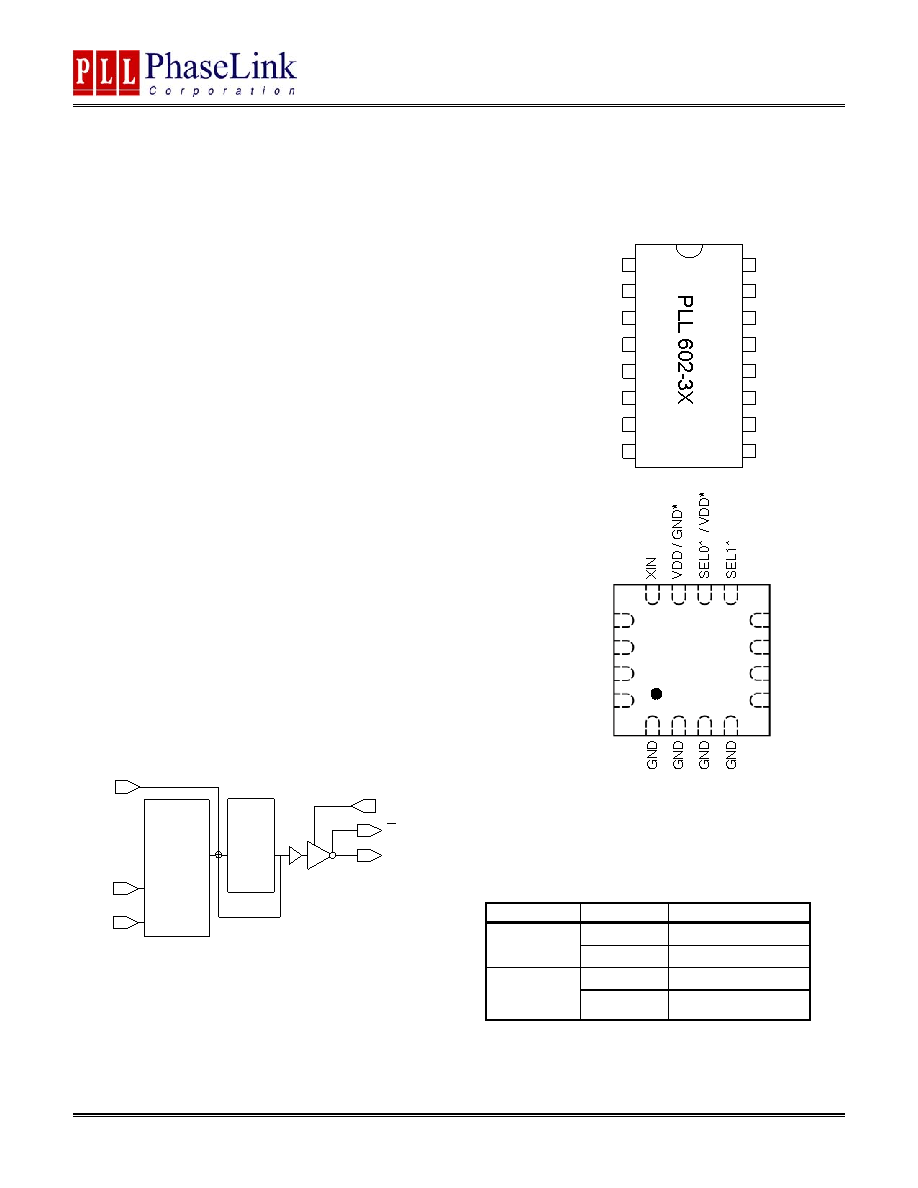

BLOCK DIAGRAM

PIN CONFIGURATION

(Top View)

^: Internal pull-up

*: On 3x3 package, PLL602-35/-38 do not have SEL0 available: Pin

10 is VDD, pin 11 is GND. However, PLL602-37/-39 have SEL0

(pin 10), and pin 11 is VDD. See pin assignment table for details.

OUTPUT ENABLE LOGICAL LEVELS

Part #

OE

State

0 (Default)

Output enabled

PLL602-38

1

Tri-state

0

Tri-state

PLL602-35

PLL602-37

PLL602-39

1 (Default)

Output enabled

OE input: Logical states defined by PECL levels for PLL602-38

Logical states defined by CMOS levels for

PLL602-35/-37/-39

1

2

3

4

5

6

7

8

VDD

9

10

11

12

13

14

15

16

XIN

XOUT

SEL3^

SEL2^

OE

GND

GND

SEL0^

SEL1^

GND

CLKC

VDD

CLKT

GND

GND

PLL602-3X

GND

VDD

CLKT

CLKC

12

3

4

12

11

10

9

13

14

15

16

8

7

6

5

SEL3^

XOUT

SEL2^

OE

XIN

XOUT

OE

Q

PLL602-3x

Q

PLL by-pass

SEL

PLL

(Phase

Locked

Loop)

Oscillator

Amplifier
