PLL602-35/-37/-38/-39

750kHz – 800MHz Low Phase Noise Multiplier XO

Universal Low Phase Noise IC’s

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 11/28/05 Page 7

PACKAGE INFORMATION

C

L

A

EH

D

A1

e

B

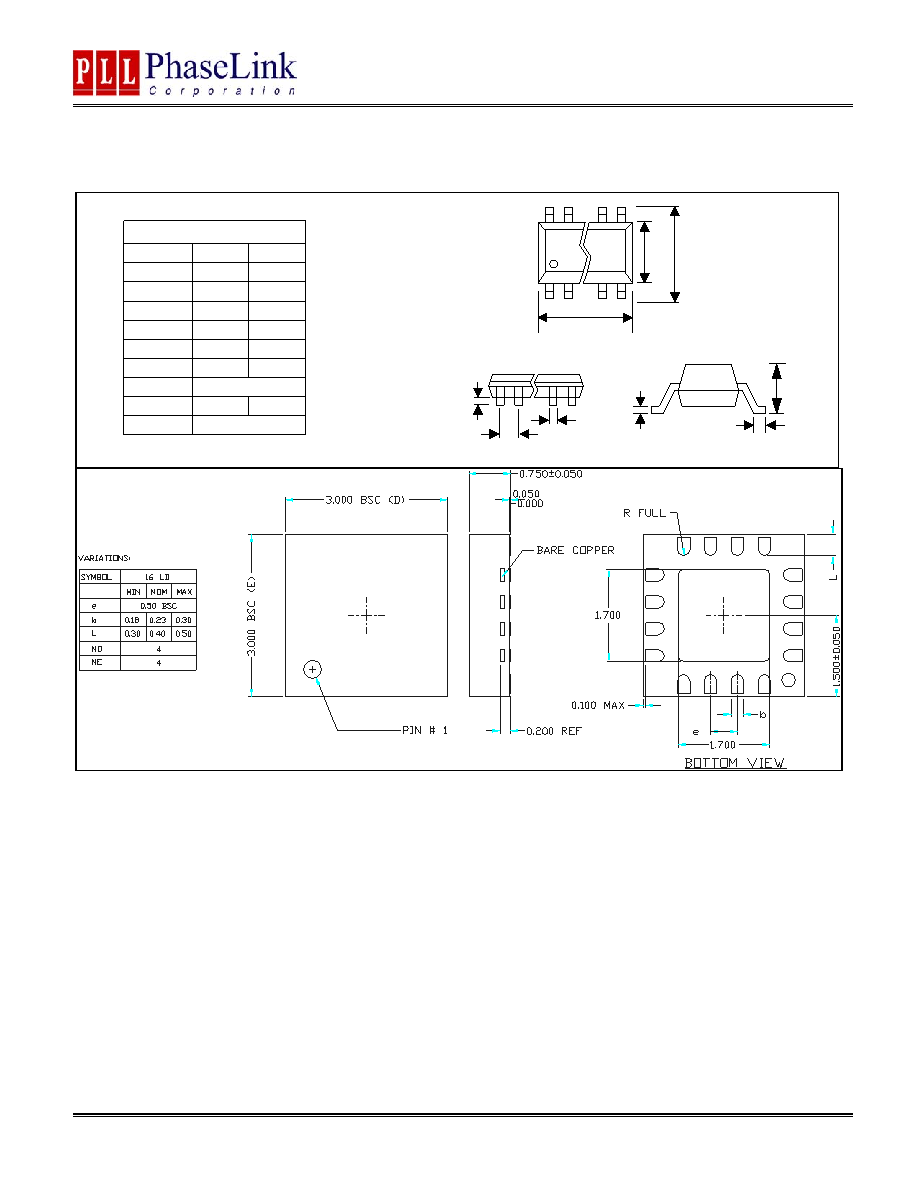

16 PIN TSSOP ( mm )

Symbol

Min.

Max.

A-

1.20

A1

0.05

0.15

B0.19

0.30

C0.09

0.20

D4.90

5.10

E4.30

4.50

H

6.40 BSC

L0.45

0.75

e

0.65 BSC

3x3mm QFN
