PLL620-38/-39

PECL and LVDS Low Phase Noise XO (for 32.5-130MHz Output)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com Rev 09/15/05 Page 5

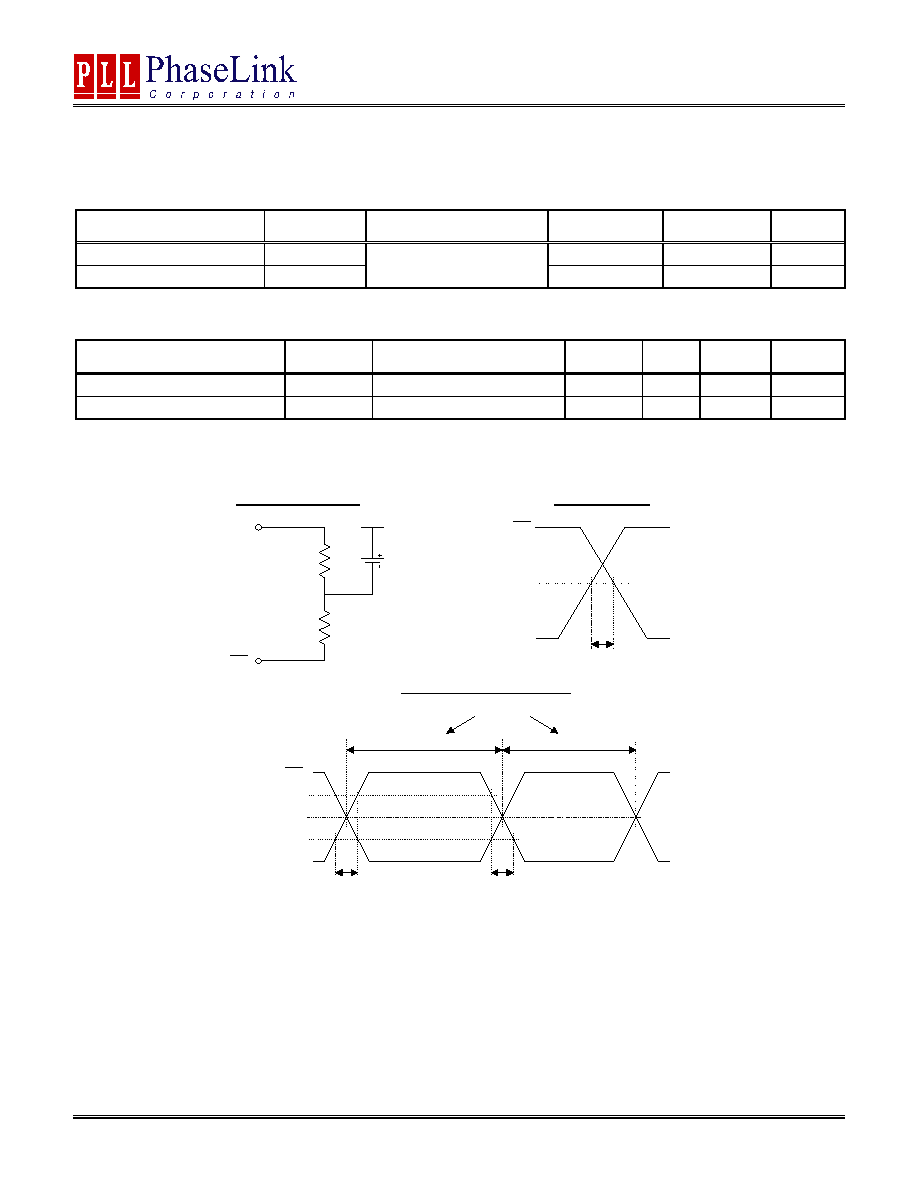

8. PECL Electrical Characteristics

PARAMETERS

SYMBOL

CONDITIONS

MIN.

MAX.

UNITS

Output High Voltage

VOH

VDD – 1.025

Output Low Voltage

VOL

RL = 50

Ω to (VDD – 2V)

(see figure)

VDD – 1.620

9. PECL Switching Characteristics

PARAMETERS

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNITS

Clock Rise Time

@20/80% - PECL

0.6

1.5

Clock Fall Time

@80/20% - PECL

0.5

1.5

OUT

Ω

PECL Levels Test Circuit

PECL Transistion Time Waveform

OUT

50%

20%

80%

VDD

DUTY CYCLE

45 - 55%

55 - 45%

50%

OUT

SKEW

PECL Output Skew

2.0V
