PLL502-03

Low Phase Noise VCXO (48MHz to 100MHz)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/17/04 Page 1

FEATURES

• VCXO output for the 48MHz to 100MHz range

• Low phase noise (-130 dBc @ 10kHz offset at

48MHz).

• CMOS output.

• 12 to 25MHz crystal input.

• Integrated variable capacitors.

• Selectable High Drive (30mA) or Standard Drive

(10mA) output.

• Wide pull range (+/- 250 ppm).

• Low jitter (RMS): 3.5ps period.

• 3.3V operation.

• Available in 8-Pin SOIC.

DESCRIPTION

The PLL502-03 is a low cost, high performance and

low phase noise VCXO for the 48 to 100MHz range,

providing less than -130dBc at 10kHz offset at

48MHz. The very low jitter (3.5ps RMS period jitter)

makes this chip ideal for applications requiring volt-

age controlled frequency sources. Input crystal can

range from 12 to 25MHz (fundamental resonant

mode).

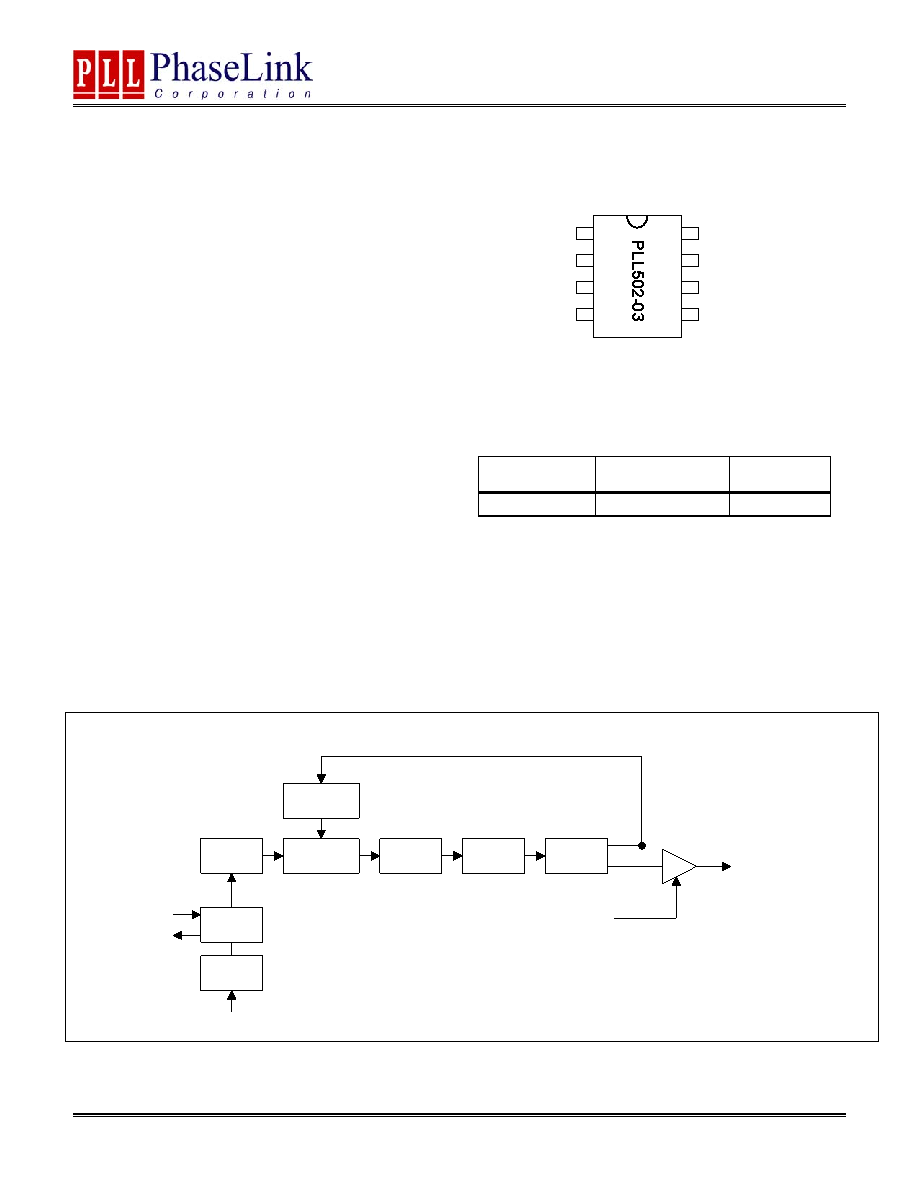

PIN CONFIGURATION

Note: ^ denotes internal pull up

OUTPUT RANGE

MULTIPLIER

FREQUENCY

RANGE

OUTPUT

BUFFER

X4

48 - 100MHz

CMOS

BLOCK DIAGRAM

1

2

3

45

6

7

8

XOUT

N/C

VCON

GND

XIN

VDD

CLK

OE^

Reference

Divider

Phase

Comparator

Charge

Pump

Loop

Filter

VCO

VCO

Divider

XTAL

OSC

OE

XIN

XOUT

CLK

VCON

VARICAP
