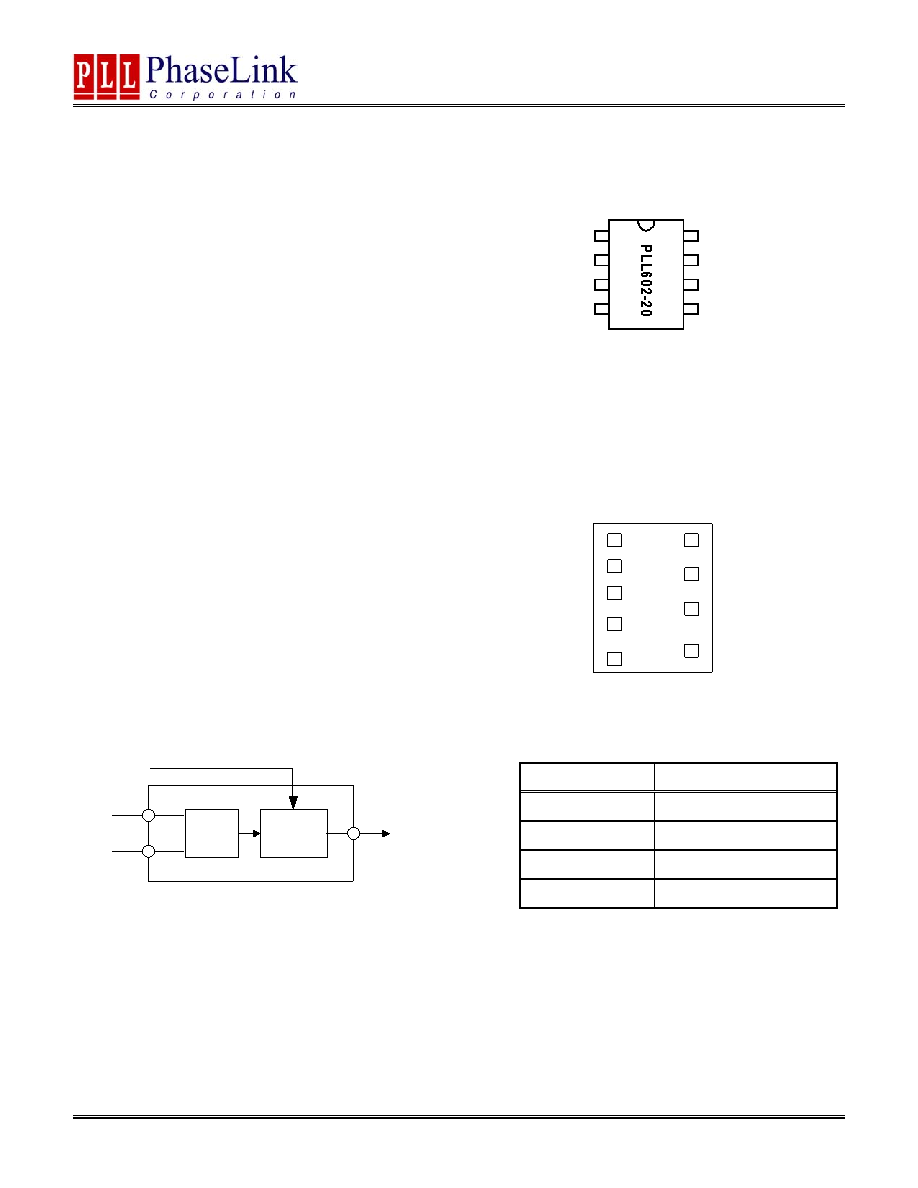

PLL602-20

200MHz XO IC With Selectable 4X/8X Multiplier

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 02/18/05 Page 1

FEATURES

• Integrated crystal oscillator circuitry (XO).

• Very low Jitter and Phase Noise (-110dBc @

10kHz offset)

• Selectable frequency multiplication (x4, x8).

• Accepts Fundamental Crystal input of 10MHz-30MHz

• Output Frequency: up to 200MHz CMOS

• Output enable (OE) pin with 60KΩ pull up

resistor

• Operating temperature range from 0°C to 70°C

• 2.5 or 3.3V supply voltage.

• Available in Green/RoHS compliant 8-pin SOIC

package

DESCRIPTION

The PLL602-20 is a general purpose low jitter and

low phase noise (-110dBc @10kHz offset), high

performance CMOS XO IC. This flexible device can

be used as a XO with output frequencies ranging

from FXIN x 4 to FXIN x 8 with the use of a single

selector pin. This makes the PLL602-20 the ideal

high performance, low-cost solution for a wide range

of applications requiring up to 200MHz (including

77.76MHz, 125MHz and 155.52MHz).

BLOCK DIAGRAM

PIN CONFIGURATION

PAD LAYOUT AND DIE ID

DIE SPECIFICATION

Name

Value

Size

31.5x55.1 mil

Reverse side

GND

Pad Opening

80 micron x 80 micron

Die Thickness

10 mil

XIn

XO

CLK

Selectable

PLL

XOut

SELx4x/8

1

2

3

4

5

6

7

8

XIN/FIN

GND

SEL4X/8X

CLK

XOUT

NC

VDD

OE

XIN

GND

SEL4X/8X

1

2

3

4

5

9

6

7

8

XOUT

OE

VDD

1

2

3

4

5

9

6

7

8

CLK

C
