MHCI04020 Series Specification

9 Packaging:

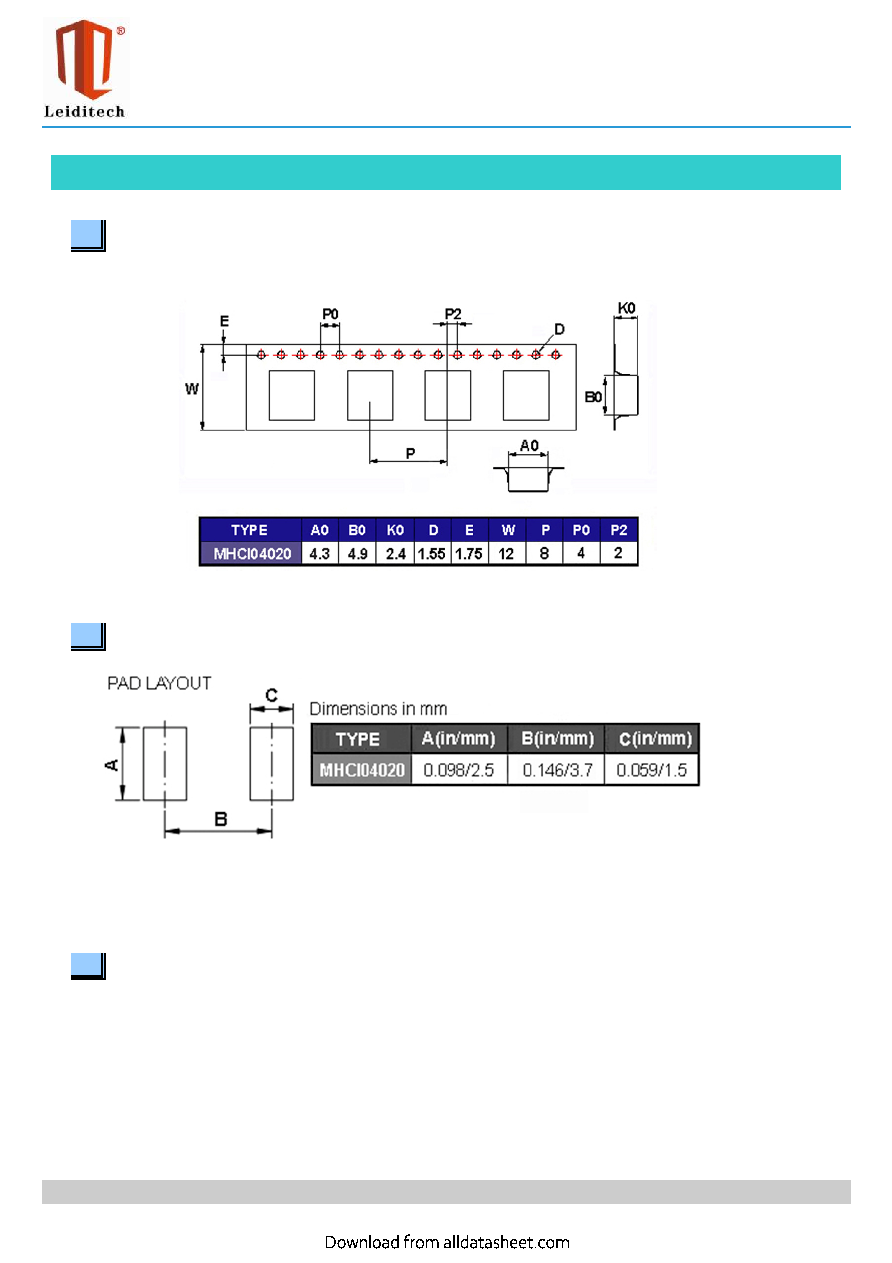

9.4 Tape Dimensions in mm

10 Recommended Land Pattern:

11 Note:

1. Please make sure that your product has been evaluated and confirmed against your specifications

when our product is mounted to your product.

2. Do not knock nor drop.

3. All the items and parameters in this product specification have been prescribed on the premise that

our product is used for the purpose,under the condition and in the environment agreed upon between

you and us. You are requested not to use our product deviating from such agreement.

4. Please keep the distance between transformer/coil and other components (refer to the standard IEC 950)

5. The moisture sensitivity level (MSL) of products is classified as level 1.

MHCI0402-2R2M-R8

Rev :

www.leiditech.com

01.06.2015

6/7
