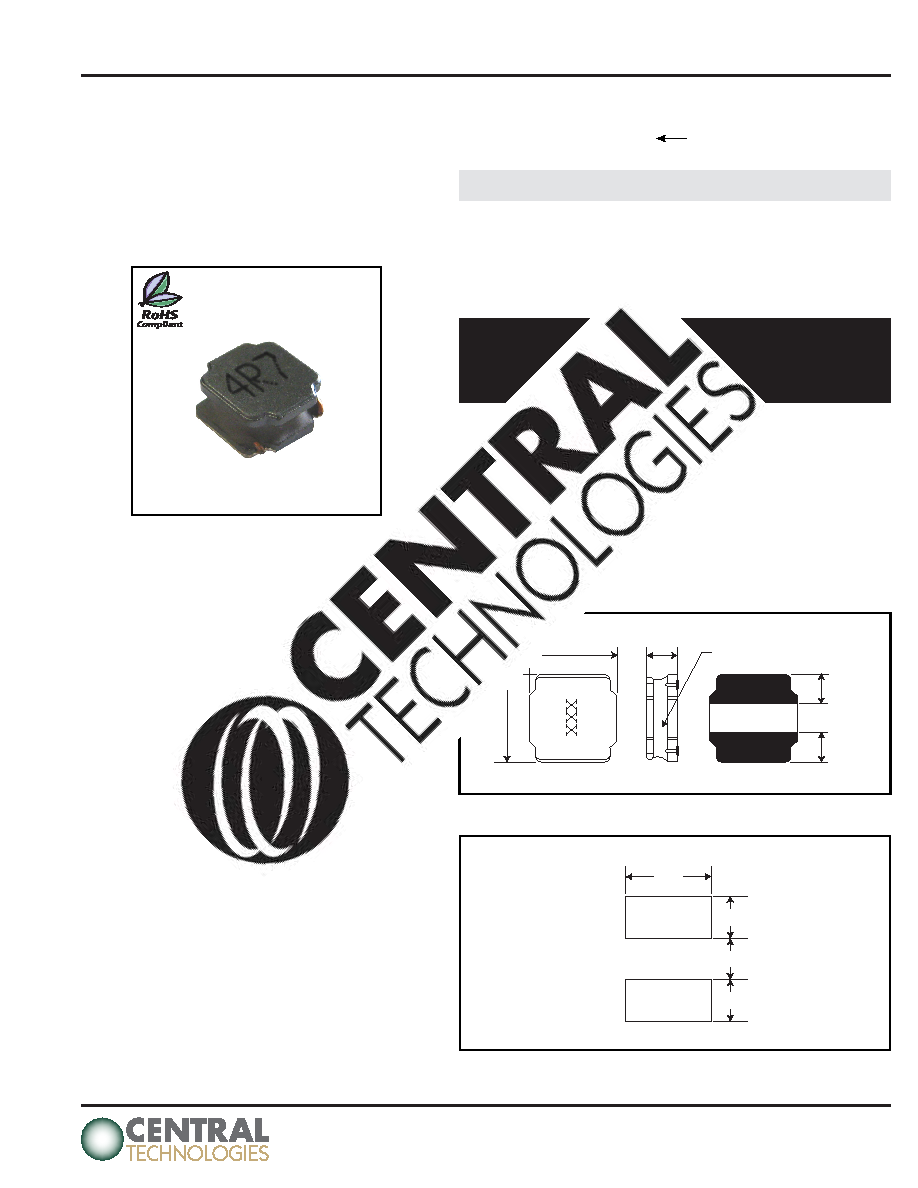

Manufacturer of Passive Components

800-684-5322 Inside US

949-453-1811 Outside US

Copyright © 2015 by CT Magnetics, DBA Central Technologies. All rights reserved.

CT Magnetics reserves the right to make improvements or change specifications without notice

REV 03.13.15

Power Inductors - Shielded

www.ctparts.com

CTLVC8040F

Series

From 0.9µH to 820µH

SPECIFICATIONS

Please specify inductance tolerance code when ordering.

CTLVC8040F-2R0_

M = ±20%, N = ±30%

*Isat: DC current (A) that will cause L to drop approximately 30%.

**Irms: DC current (A) that will cause an approximate DT of 40°C.

L Test

DCR

*Isat

**Irms

Part

Inductance

Freq.

±30%

Typ.(Max.)

Typ.(Max.)

Number

(µH)

(kHz)

(mΩ)

(A)

(A)

CTLVC8040F-R90N

0.9

100

7

13.8(12.42)

8.05(7.24)

CTLVC8040F-1R0N

1.0

100

7.5

13.0(11.70)

7.95(7.15)

CTLVC8040F-1R4N

1.4

100

9

10.8(9.72)

7.8(7.02)

CTLVC8040F-1R5N

1.5

100

9.5

10.0(9.00)

7.7(6.93)

CTLVC8040F-2R0_

2.0

100

11

9.6(8.64)

7.4(6.66)

CTLVC8040F-2R2_

2.2

100

11.5

9.2(8.28)

7.2(6.48)

CTLVC8040F-2R5_

2.5

100

13

8.2(7.38)

6.3(5.67)

CTLVC8040F-3R3_

3.3

100

15

7.5(6.75)

6.0(5.40)

CTLVC8040F-4R7_

4.7

100

18

6.0(5.40)

5.5(4.95)

CTLVC8040F-5R6_

5.6

100

23

5.7(5.13)

5.2(4.68)

CTLVC8040F-6R8_

6.8

100

25

5.4(4.86)

5.1(4.59)

CTLVC8040F-100_

10

100

38

4.3(3.87)

3.8(3.42)

CTLVC8040F-120_

12

100

45

3.8(3.42)

3.5(3.15)

CTLVC8040F-150_

15

100

50

3.6(3.24)

3.2(2.88)

CTLVC8040F-180_

18

100

68

3.1(2.79)

2.7(2.43)

CTLVC8040F-220_

22

100

80

2.8(2.52)

2.6(2.34)

CTLVC8040F-330_

33

100

110

2.3(2.07)

2.0(1.80)

CTLVC8040F-470_

47

100

160

1.9(1.71)

1.75(1.57)

CTLVC8040F-680_

68

100

240

1.7(1.53)

1.45(1.30)

CTLVC8040F-101_

100

100

340

1.4(1.26)

1.10(0.99)

CTLVC8040F-121_

120

100

425

1.1(0.99)

1.0(0.90)

CTLVC8040F-151_

150

100

480

1.0(0.90)

0.9(0.81)

CTLVC8040F-221_

220

100

670

0.94(0.84)

0.60(0.54)

CTLVC8040F-271_

270

100

900

0.83(0.74)

0.55(0.49)

CTLVC8040F-821_

820

100

2800

0.40(0.36)

0.38(0.34)

Not Shown at Actual Size

CHARACTERISTICS

PHYSICAL DIMENSIONS

PAD LAYOUT

Description: SMD power inductors sealed with magnetic resin.

Applications: Smart phones, DSC, Tablet PC’s, DC/DC

converters, etc.

Operating Temperature: -55°C to 125°C (including

self - temperature rise)

Inductance Tolerance: ±20%, ±30%

Testing: Inductance is tested on an HP4284A at 100kHz, 1V

Packaging: Tape & Reel.

Marking: Parts are marked with inductance code.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

A

B

C

D

D

Magnetic Shielding

7.5

2.5

3.4

2.5

Size

mm

inches

Unit: mm

A

B

C

D

8.0±0.2

8.0±0.2

2.3±0.3

0.315±0.008

0.315±0.008

0.091±0.012
