Power Inductors - Shielded

www.ctparts.com

CTMPC080604F

Series

From 0.24 µH to 2.2 µH

SPECIFICATIONS

Isat: DC current (A) that will cause L to drop approximately 30%.

Irms: DC current (A) that will cause an approximate

DT of 40°C.

L Test

DCR

Isat

Irms

Part

Inductance

Freq.

Max.

Max.

Max.

Number

(µH)

(MHz)

(m

W)

(A)

(A)

CTMPC080604F-R24M

0.24

2.0

40

4.2

4.0

CTMPC080604F-R33M

0.33

2.0

48

4.0

3.5

CTMPC080604F-R47M

0.47

2.0

54

3.2

3.0

CTMPC080604F-R56M

0.56

2.0

59

2.8

2.8

CTMPC080604F-R68M

0.68

2.0

72

2.7

2.4

CTMPC080604F-1R0M

1.0

2.0

96

2.2

2.0

CTMPC080604F-1R5M

1.5

2.0

150

2.1

1.6

CTMPC080604F-2R2M

2.2

2.0

204

2.0

1.3

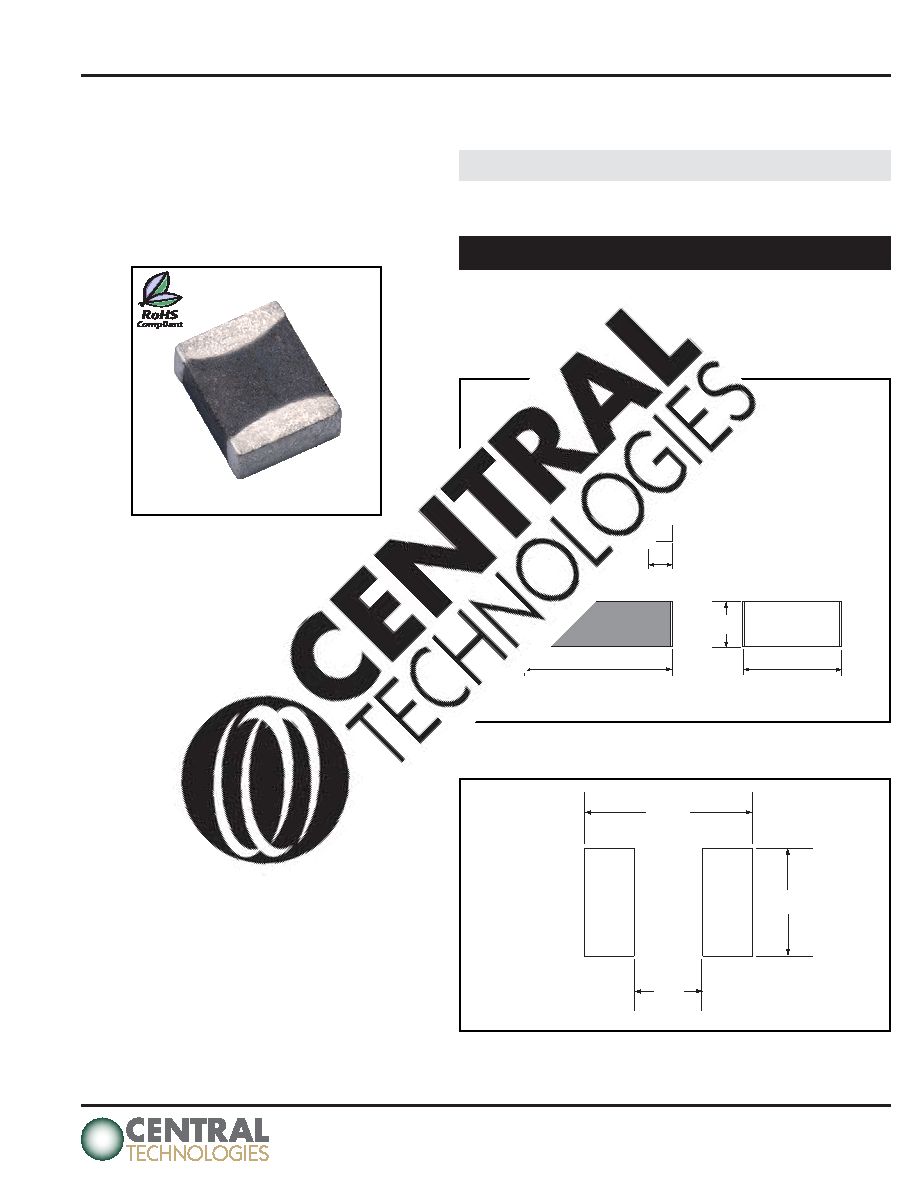

Not Shown at Actual Size

CHARACTERISTICS

PHYSICAL DIMENSIONS

Description: SMD Shielded Molded Power Inductor

Applications: Smartphone, Tablet PC, Hard Disk for Ultrabook,

LTE Module, Portable Devices, etc.

Operating Temperature: -40°C to 125°C (including self-

temperature rise)

Inductance Tolerance: ±20%

Testing: Inductance is tested on an E4991/HP4287A+16197A,

2MHz, 0.2V.

Packaging: Tape and Reel.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

D

D

C

B

A

Core

Terminal

Electrode

A

B

C

D

Max.

2.0 ± 0.2

1.6 ± 0.2

1.0

0.5 ± 0.3

0.078 ± 0.008

0.063 ± 0.008

0.039

0.020 ± 0.012

Size

mm

inches

PAD LAYOUT

2.0

1.6

0.9

Unit: mm
