Power Inductors - Shielded

www.ctparts.com

CTMPH080503F

Series

From 0.24 µH to 0.47 µH

SPECIFICATIONS

Isat: DC current (A) that will cause L to drop approximately 30%.

Irms: DC current (A) that will cause an approximate

ΔT of 40°C.

L Test

DCR

Isat

Irms

Part

Inductance

Freq.

Max.(Typ.)

Max.(Typ.)

Max.(Typ.)

Number

(µH)

(MHz)

(m

Ω)

(A)

(A)

CTMPH080503F-R24M

0.24

2.0

25(19)

4.8(5.4)

4.2(4.8)

CTMPH080503F-R47M

0.47

2.0

48(40)

3.2(3.6)

3.0(3.4)

Not Shown at Actual Size

CHARACTERISTICS

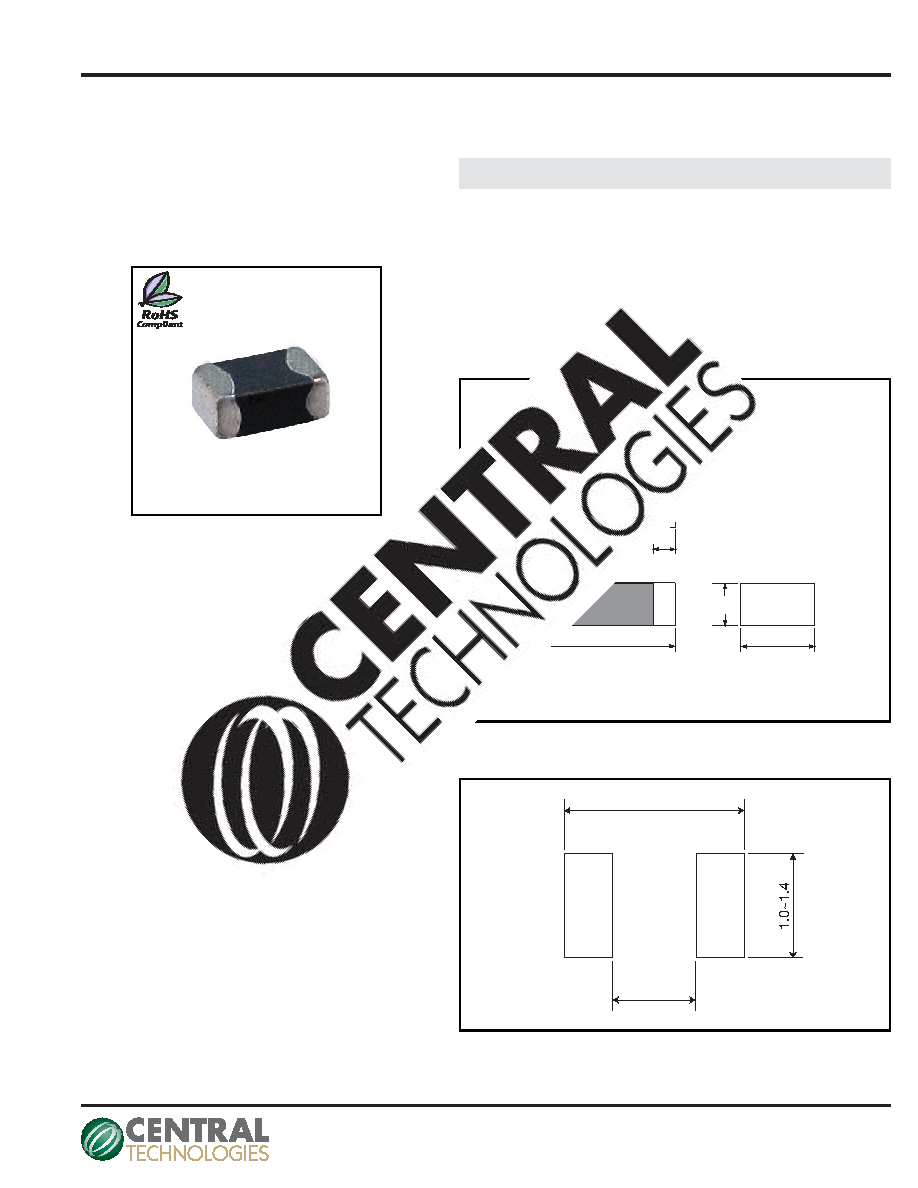

PHYSICAL DIMENSIONS

Description: SMD Molded Magnetically Shielded Inductors

Applications: Smartphone, Tablet PC, Hard Disk for Ultrabook,

DC/DC Converters, Portable Devices, etc.

Operating Temperature: -40°C to 125°C (including self-

temperature rise)

Inductance Tolerance: ±20%

Testing: Inductance is tested on an E4991A/HP4287A+16197A,

2MHz, 0.2V.

Packaging: Tape and Reel.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

DD

C

B

A

Ferrite

Terminal

Electrode

A

B

C

D

Max.

2.0 ± 0.2

1.25 ± 0.2

0.8

0.5 ± 0.3

0.079 ± 0.008

0.049 ± 0.008

0.031

0.020 ± 0.012

Size

mm

inches

PAD LAYOUT

0.8~1.2

2.3~2.9

Unit: mm
