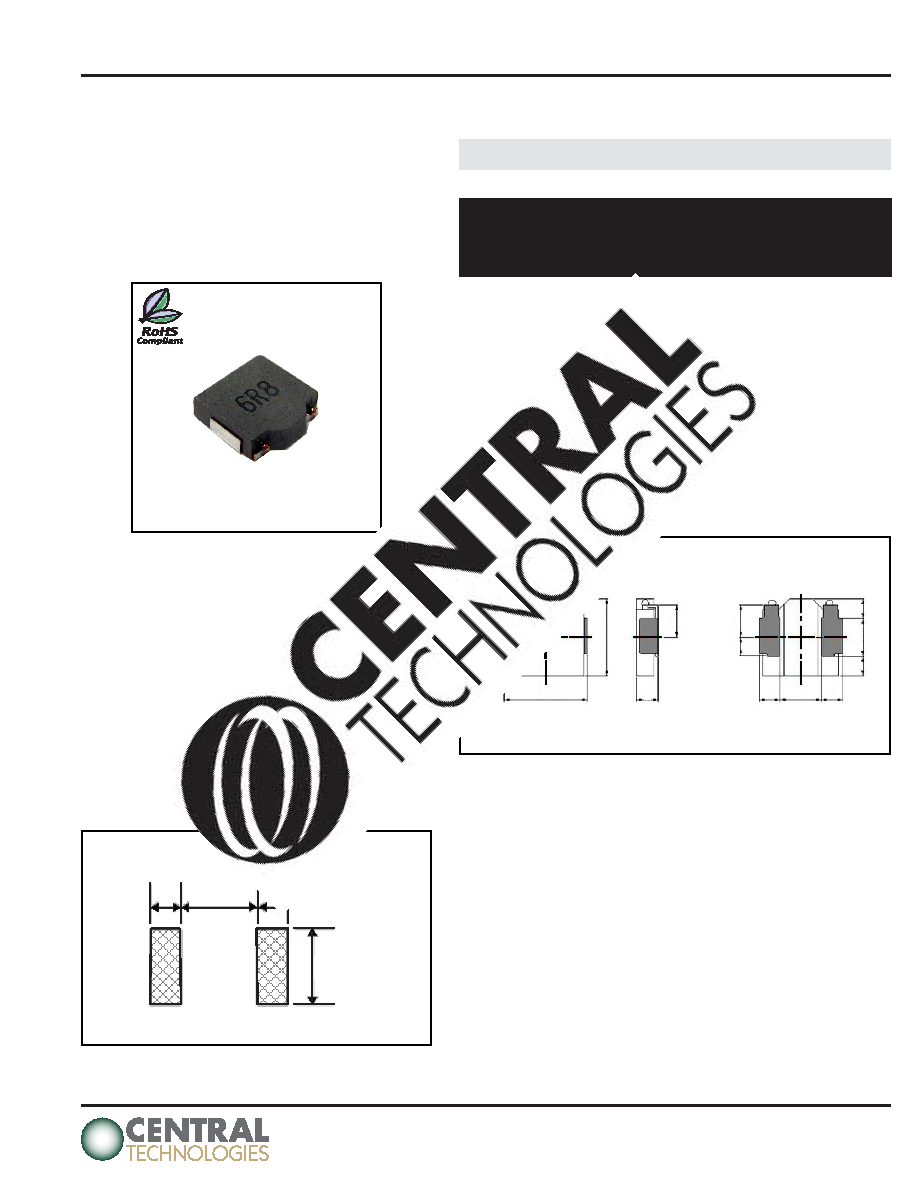

Power Inductors - Shielded

www.ctparts.com

CTSPMA6020F

Series

From .47µH to 10µH

SPECIFICATIONS

Parts are available in ±20% inductance tolerance only

L

DCR

Isat

Irms

Part

Inductance

Test

Max.

Max.

Max.

Number

(µH)

Condition

(mΩ)

(A)

(A)

CTSPMA6020F-R47M

0.47

100KHz, 1V

5.5

21.0

13.9

CTSPMA6020F-R68M

0.68

100KHz, 1V

7.1

20.0

11.5

CTSPMA6020F-1R0M

1.00

100KHz, 1V

10.6

13.7

9.8

CTSPMA6020F-1R5M

1.50

100KHz, 1V

15.6

13.8

8.0

CTSPMA6020F-2R2M

2.20

100KHz, 1V

17.8

10.0

7.9

CTSPMA6020F-3R3M

3.30

100KHz, 1V

30.2

7.5

5.9

CTSPMA6020F-4R7M

4.70

100KHz, 1V

39.6

6.8

5.1

CTSPMA6020F-6R8M

6.80

100KHz, 1V

63.0

5.2

4.0

CTSPMA6020F-100M

10

100KHz, 1V

96.0

4.4

3.2

Not Shown at Actual Size

CHARACTERISTICS

PAD LAYOUT

Description: SMD (shielded) Power Inductors

Applications: Smart phones, Notebook PC’s, Tablets, HDD’s,

Servers, VRM’s, Compact power supply modules, etc.

Saturation Rated Current (Isat): The DC current when the

when the inductance becomes 30% lower than its initial value.

(Ta=25°C)

Temperature Rise Current (Irms): The actual current when

temperature of coil becomes ∆T40°C. (Ta=25°C)

Operating Temperature Range: -55°C to 155°C

Markings: Inductance Code

Samples available. See website for ordering information.

3.5

3.7

2.2

2.2

PAD

LAYOUT

PHYSICAL DIMENSIONS

c

C

B

F

G

J

A

D

E

I

H

H

J

K

J

A

B

C

D

E

F

Max.

Max.

7.1±0.2

6.7±0.2

7.1

2.0

2.7

2.7

0.28±0.008

0.26±0.008

0.28

0.079

0.106

0.106

Size

mm

inches

G

H

I

J

K

1.5

1.65±0.1

3.8

1.85±0.1

3.0

0.059

0.065±0.004

0.150

0.073±0.004

0.118

Size

mm

inches

UNIT: mm
