Technical Data 1001

Effective August 2018

LPS-RK — 600 Vac/300 Vdc, 1⁄10-60A, dual element, time-delay fuses

Eaton.com/bussmannseries

Recommended fuse blocks

Amps

Catalog no.

1-Pole

2-Pole

3-Pole

30

RM60030-1

RM60030-2

RM60030-3

60

RM60060-1

RM60060-2

RM60060-3

For additional information on the RM600 600 volt fuse blocks, see

data sheet no. 10289.

Fuse reducers for Class R fuses

Equipment fuse clips Desired fuse (case) size Catalog no.

60 A

30 A

NO.663-R

100A

30 A

NO.216-R

60 A

NO.616-R

200 A

60 A

NO.626-R

For additional information on Class R fuse reducers, see data sheet

no. 1118.

Dimensions — in

0.81

5

1/10 to 30 A

5.5

35 to 60 A

1.06

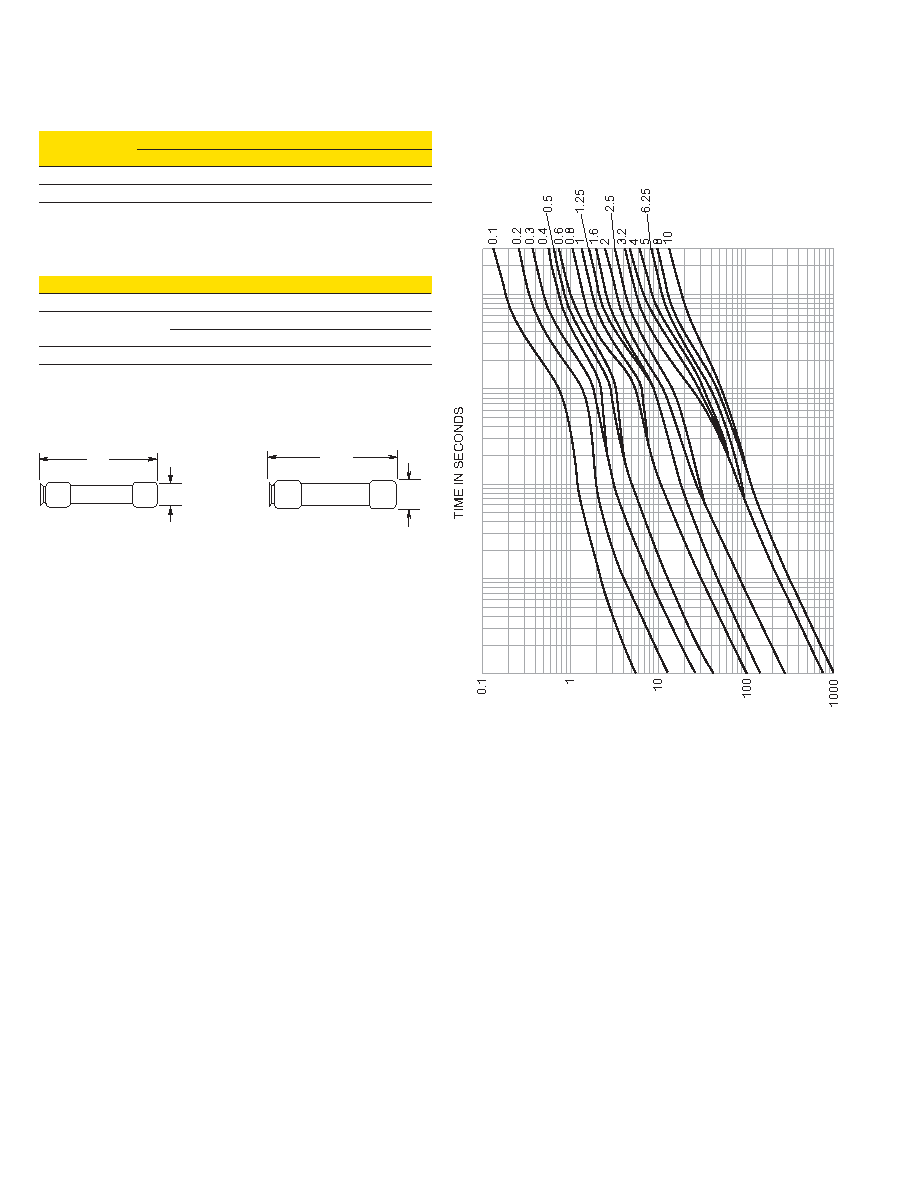

Time-Current Characteristic Curves–Average Melt

1⁄10 to 10 Amps

AMP RATING

300

100

10

1

0.1

0.01

CURRENT IN AMPS
