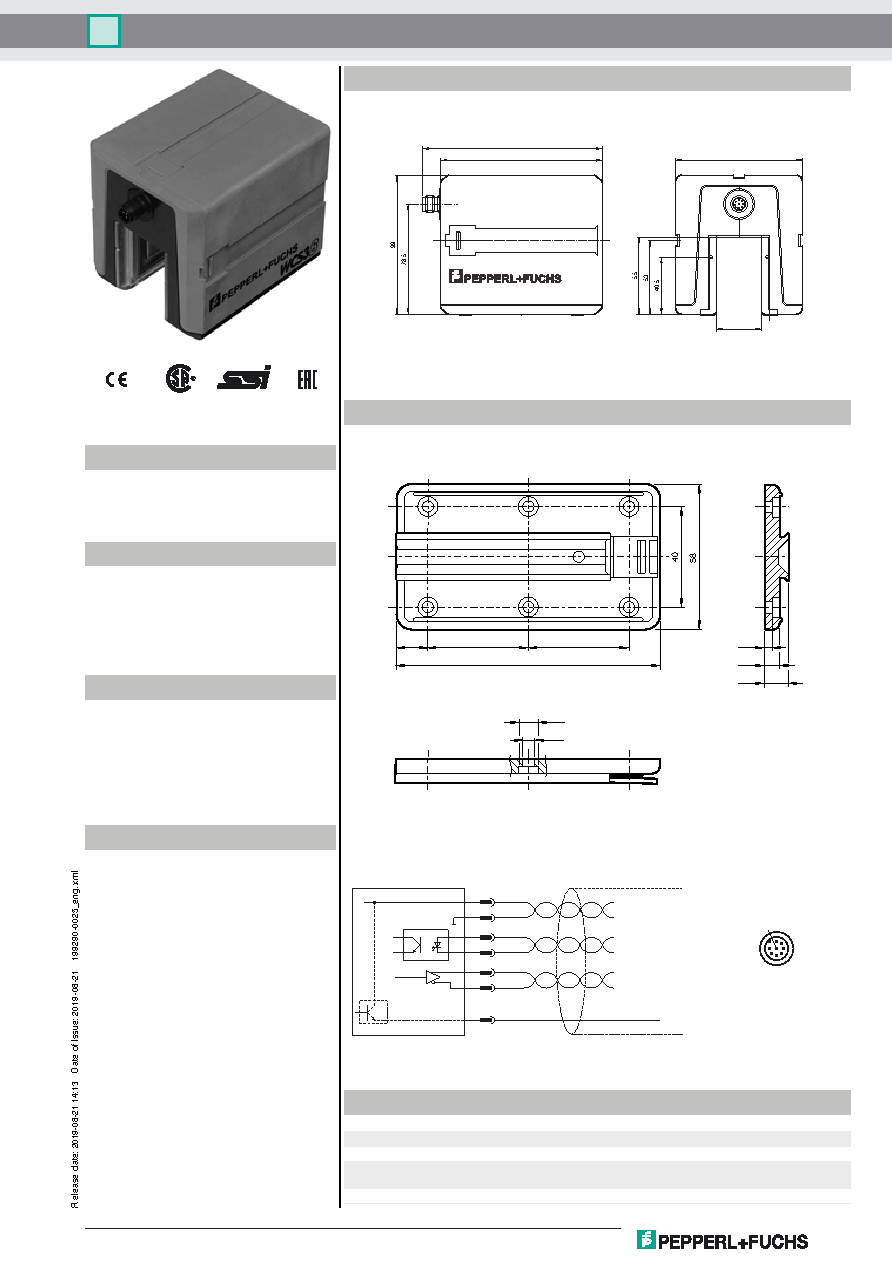

WCS3B-LS310

Model number

WCS3B-LS310

Reading head, SSI interface, binary

code

Features

•SSI interface

• Non-contact, absolute position

encoder

• Automatic detection of dirt

accumulation

Accessories

WCS3B-PL2

Transparent protective case and seal for

WCS3B reader

WCS-MP1

Mounting plate for reading heads WCS2

and WCS3

Note

with SSI interface

Dimensions

Mounting plate

Technical data

General specifications

Passage speed

v

≤ 12.5 m/s

Measuring range

max. 314.5 m

Free tolerances to code rail

horizontal: 31 mm ( ± 15.5 mm )

vertical: 28 mm ( ± 14 mm )

Resolution

± 0.4 mm (1,250 positions/m)

90

128

115

31

B

WCS3

12.5

40

40

105

3

6

9.5

ø 4.5

3

6

9.5

ø 8

WCS3B-LS3xx

UB 10 ... 30 V

GND

CLK+

1

3

4

2

7

CLK-

DATA+

5

6

DATA-

1

4

6

7

8

5

3

2

SYNCHRON SERIELLES INTERFACE

Read head
