5.00

0.197

0.80

0.031

5.00

0.197

RECOMMENDED CABLE STRIPPING DIMENSIONS

CAN ALSO BE USED WITH:

RG-196

RG-178

CABLE

6.50

0.256

6.00

0.236

RECOMMENDED MOUNTNG HOLE

5

6

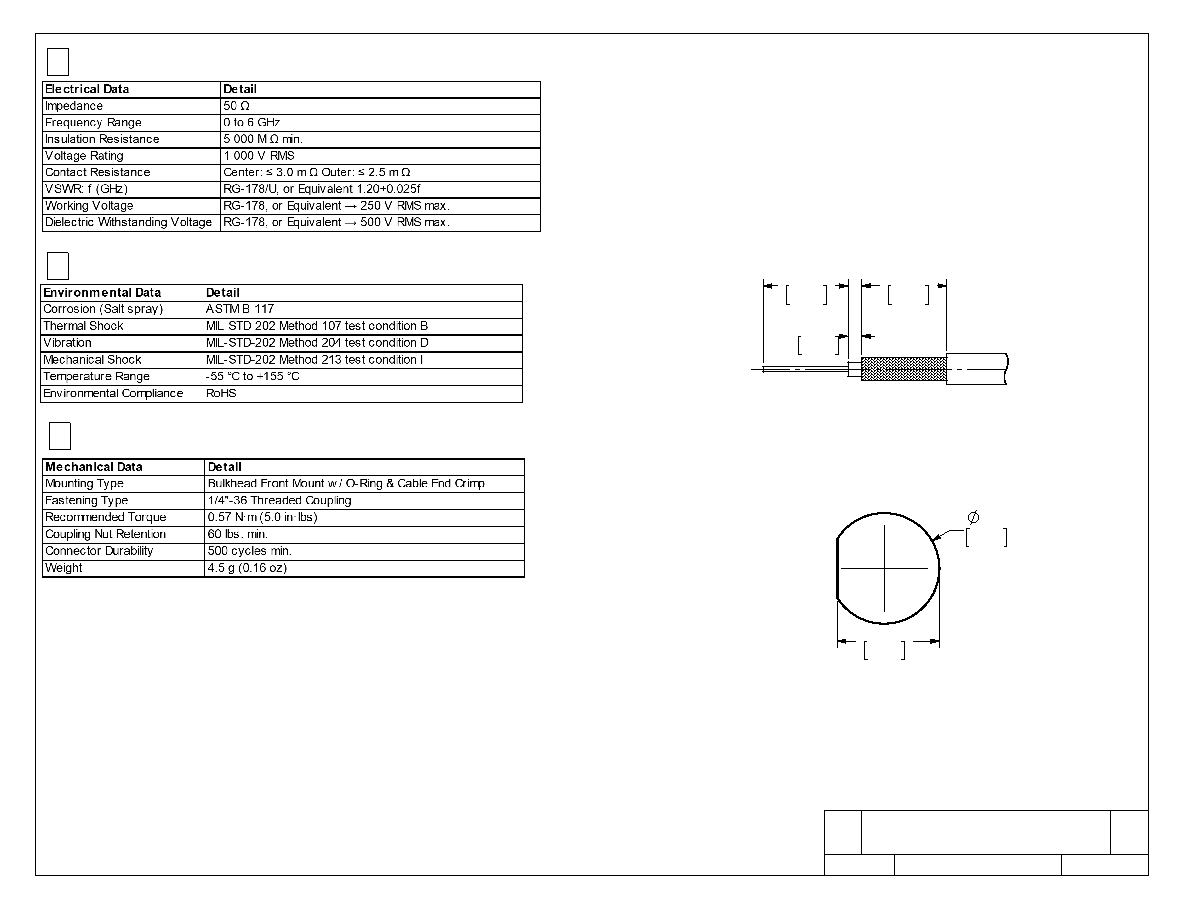

TABLE I

TABLE II

TABLE III

7

ASSEMBLY INSTRUCTIONS

Strip the cable to the recommended dimensions.

1.

Solder the support onto the braid.

2.

Place the spacer onto the center-conductor.

3.

Solder, or crimp the socket onto the center-conductor.

4.

Insert the socket, center-conductor, spacer and support into

5.

the body until the top of the socket is flush with the white

insulation in the body.

Crimp the tail of the body onto the support with a 0.093" hex

6.

crimp tool.

SHEET 2 OF 2

LDCFDAL_A

SCALE: 4:1

A

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

SEE SHEET 1 FOR REVISIONS

A

CONSMA015-R178-*
